PKW4M-410-MQDEC Banner Cordsets

PKW4M-410-MQDEC on Powermatic Associates
Banner

Part#:PKW4M-410-MQDEC

Manufacturer:Banner

Alt. Part#:25060

Product Lifecycle:Active

Get a quick Quote!

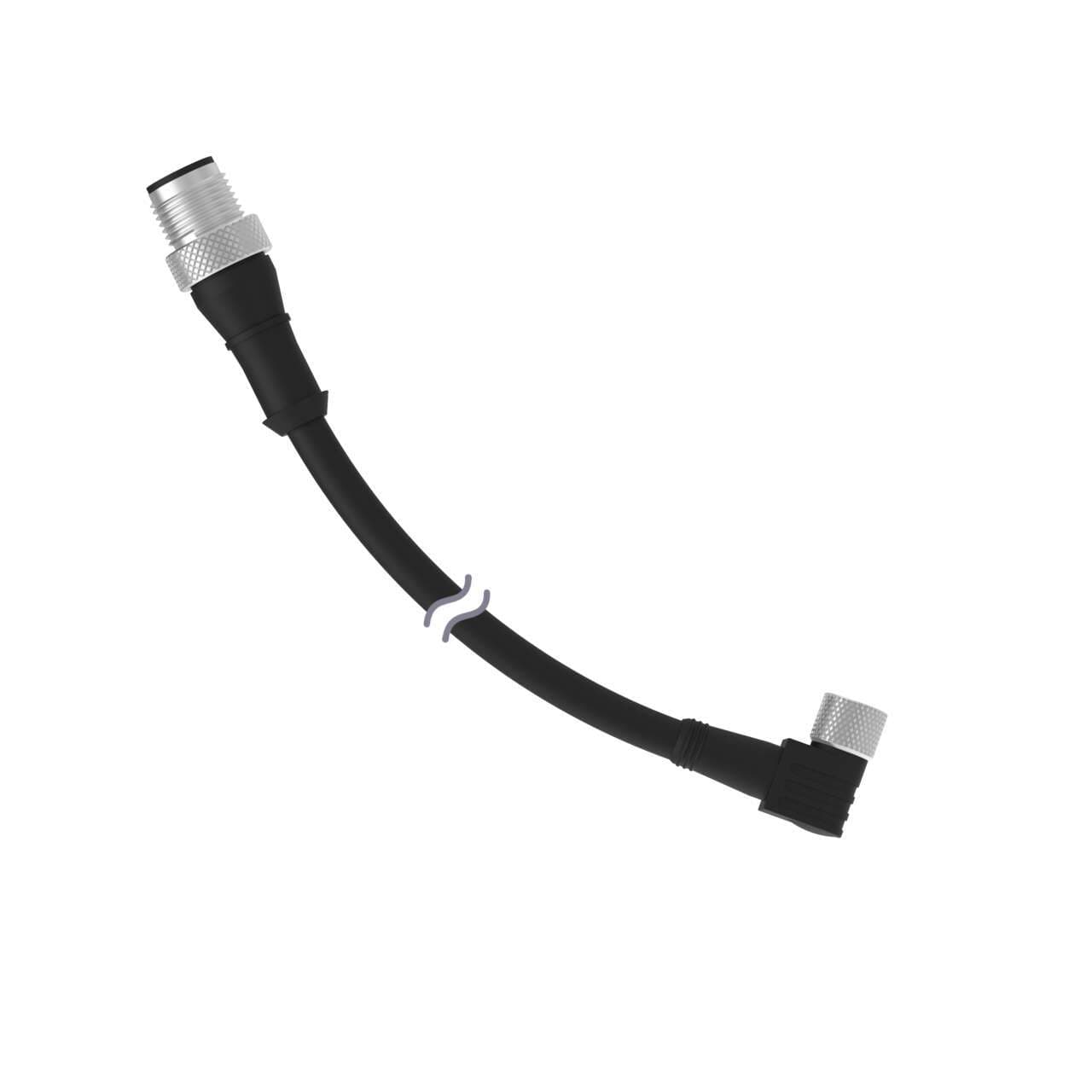

Cordset: Double Ended M8 to M12; 4-pin Right-Angle Female; 4-pin Straight Male; 3 m 3x24 Black PUR Jacket; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PKW4M-410-MQDEC Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    TW
  • Feature: Hazardous Area
    No
  • Oil/Grease Resistant
    No
  • Secondary AWG
    24
  • Secondary Number of Conductors
    4
  • Secondary Coupling Method
    M12 Single Key
  • Primary AWG
    24
  • Secondary Orientation
    Straight
  • Secondary Gender
    Male
  • Secondary Connector Type
    EURO
  • Primary Number of Conductors
    4
  • Primary Orientation
    Right Angle
  • Primary Gender
    Female
  • Primary Coupling Method
    M8 Thread
  • IP Rating
    IP67
  • Voltage Rating (V)
    125 V ac/dc
  • Primary Connector Type
    PICO
  • Current Rating (A)
    4.0
  • Coupling Material/Color
    Nickel Plated Brass
  • Minimum Temp. (°C)
    -40
  • Maximum Temp. (°C)
    105
  • Number of Connectors
    2
  • Outside Cable Diameter (mm)
    4.4
  • Trunk Length (m)
    No Trunk
  • Shield/No Shield
    No Shield
  • Cable Jacket Color
    Black
  • Cable Jacket Material
    PUR
  • Cordset Length (m)
    3
  • Connector Body Material/Color
    PUR Black
  • Number of Contacts
    3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PKW4M-410-MQDEC Description

Banner Engineering PKW4M-410-MQDEC is a pre-assembled cable/cordset designed for various automation applications. It features a double-ended design with a 4-pin M8 female right-angled connector on one end and a 4-pin Euro-style M12 male connector on the other. The cable has a diameter of 4.4mm and is encased in black PVC sheathing. It is 3 feet (approximately 0.91 meters) in length and can operate within an ambient air temperature range of -40 to +105 degrees Celsius. This model is rated for a voltage of 125Vac and offers a degree of protection rated at IP67, making it suitable for environments where dust and moisture resistance is required.
