PKW4M-403-MQDEC Banner Cordsets

PKW4M-403-MQDEC on Powermatic Associates
Banner

Part#:PKW4M-403-MQDEC

Manufacturer:Banner

Alt. Part#:25058

Product Lifecycle:Active

Get a quick Quote!

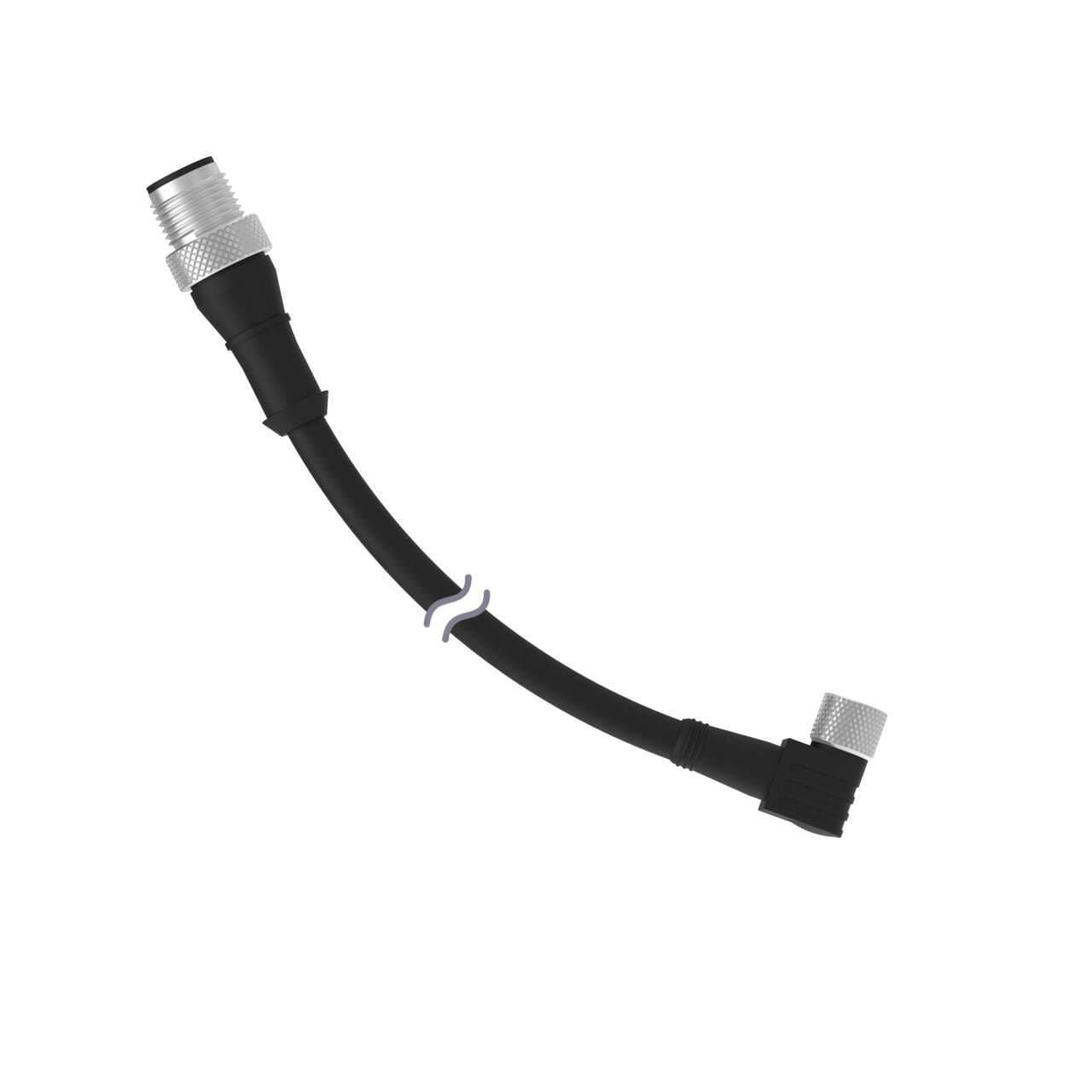

Cordset: Double Ended M8 to M12; 4-pin Right-Angle Female; 4-pin Straight Male; 1 m 3x24 Black PUR Jacket; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PKW4M-403-MQDEC Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    0.907184 g
  • Country Of Origin
    TW
  • Oil/Grease Resistant
    No
  • Secondary AWG
    24
  • Feature: Hazardous Area
    No
  • Secondary Orientation
    Straight
  • Secondary Number of Conductors
    4
  • Secondary Coupling Method
    M12 Single Key
  • Secondary Connector Type
    EURO
  • Primary AWG
    24
  • Primary Orientation
    Right Angle
  • Primary Gender
    Female
  • Primary Number of Conductors
    4
  • Secondary Gender
    Male
  • IP Rating
    IP67
  • Primary Coupling Method
    M8 Thread
  • Primary Connector Type
    PICO
  • Current Rating (A)
    4.0
  • Maximum Temp. (°C)
    105
  • Coupling Material/Color
    Nickel Plated Brass
  • Minimum Temp. (°C)
    -40
  • Voltage Rating (V)
    125 V ac/dc
  • Shield/No Shield
    No Shield
  • Cable Jacket Color
    Black
  • Trunk Length (m)
    No Trunk
  • Cordset Length (m)
    1
  • Cable Jacket Material
    PUR
  • Outside Cable Diameter (mm)
    4.4
  • Connector Body Material/Color
    PUR Black
  • Number of Connectors
    2
  • Number of Contacts
    3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PKW4M-403-MQDEC Description

Banner Engineering PKW4M-403-MQDEC is a pre-assembled cable/cordset designed for various automation applications. It features a double-ended design with a 4-pin M8 female right-angled connector and a 4-pin Euro-style M12 male connector. The cable has a diameter of 4.4mm and is 16ft (5m) in length. It is constructed with a nickel-plated brass coupling nut and a polyurethane (PUR) cable with black sheathing. This model is rated for operation in ambient air temperatures ranging from -40 to +105°C and has a rated voltage of 125Vac. It offers a degree of protection of IP67, making it suitable for environments where dust and moisture resistance is required.

Manufacturer warranty

$142.00

Request a quote, and we will send availability within minutes.

Select Qty:

$142.00

$142.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
