PKG4MS-9 Banner Cordsets

PKG4MS-9 on Powermatic Associates
Banner

Part#:PKG4MS-9

Manufacturer:Banner

Alt. Part#:809646

Product Lifecycle:Active

Get a quick Quote!

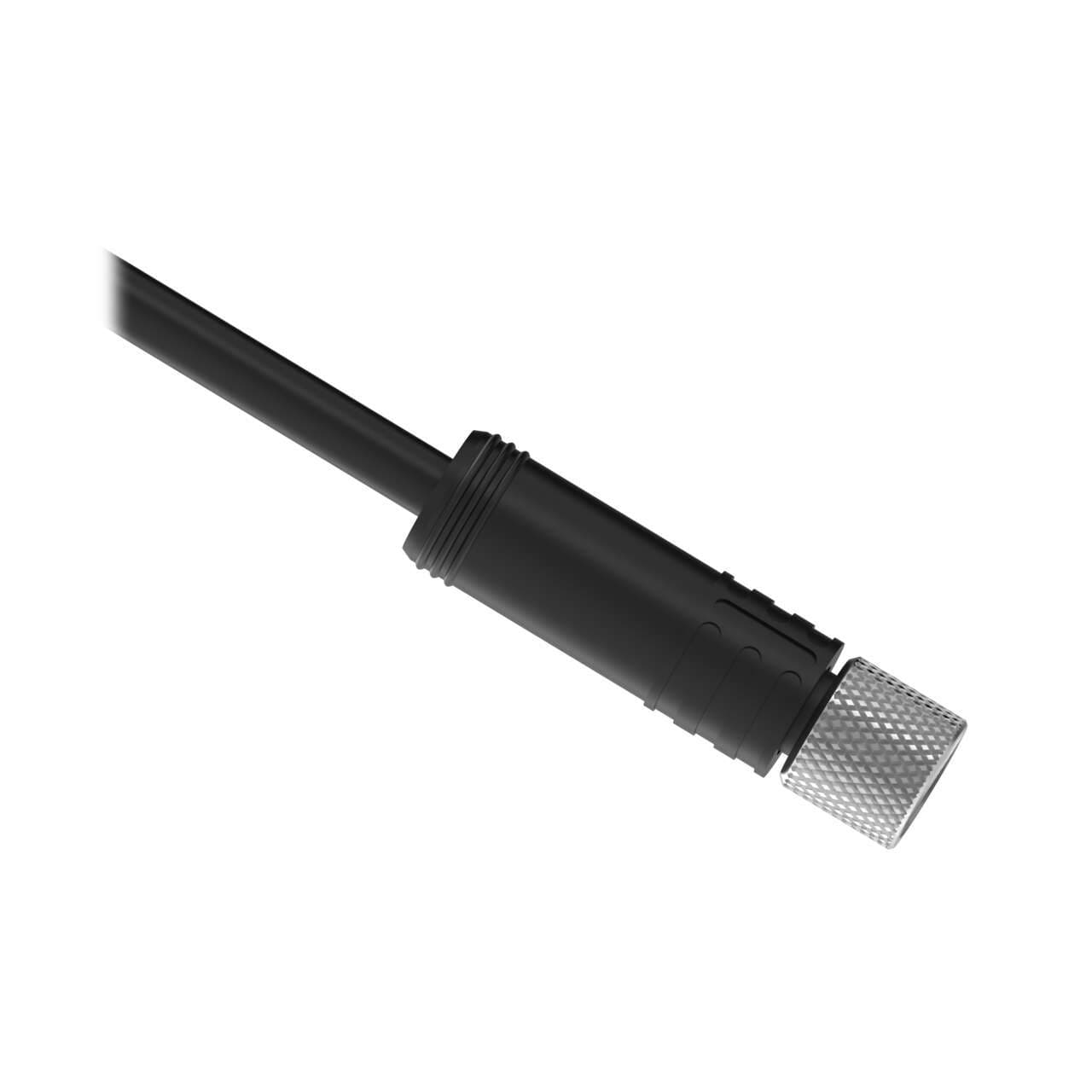

Cordset: Single Ended M8; 4-pin Straight Female; 9.04 m 4x26 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PKG4MS-9 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    77.11064 g
  • Country Of Origin
    TW
  • Feature: Hazardous Area
    No
  • Oil/Grease Resistant
    No
  • Secondary AWG
    26
  • Secondary Number of Conductors
    4
  • Secondary Connector Type
    Flying Leads
  • Primary AWG
    26
  • Primary Number of Conductors
    4
  • Primary Orientation
    Straight
  • Primary Gender
    Female
  • Primary Coupling Method
    M8 Thread
  • Primary Connector Type
    PICO
  • IP Rating
    IP67
  • Voltage Rating (V)
    125 V ac/dc
  • Minimum Temp. (°C)
    -40
  • Maximum Temp. (°C)
    105
  • Current Rating (A)
    2.0
  • Coupling Material/Color
    Nickel Plated Brass
  • Number of Contacts
    3
  • Shield Type
    Coupling
  • Shield/No Shield
    Shield
  • Cable Jacket Material
    PVC
  • Outside Cable Diameter (mm)
    4.3
  • Number of Connectors
    1
  • Cordset Length (m)
    9035
  • Trunk Length (m)
    No Trunk
  • Cable Jacket Color
    Black
  • Connector Body Material/Color
    PUR Black

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PKG4MS-9 Description

Threaded Pico-Style Quick Disconnect Cable With, Straight 4-Pin Connector, 9 m (30 ft) in Length, Nickel plated brass coupling nut; Shield wire grounded to coupling nut

Related documents PKG4MS-9 Specs

PKG4MS-9 PKG4MS-X-1630955614264.stp
PKG4MS-9 PKG4MS-X-1630955614270.pdf

Manufacturer warranty

$109.00

Request a quote, and we will send availability within minutes.

Select Qty:

$109.00

$109.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
