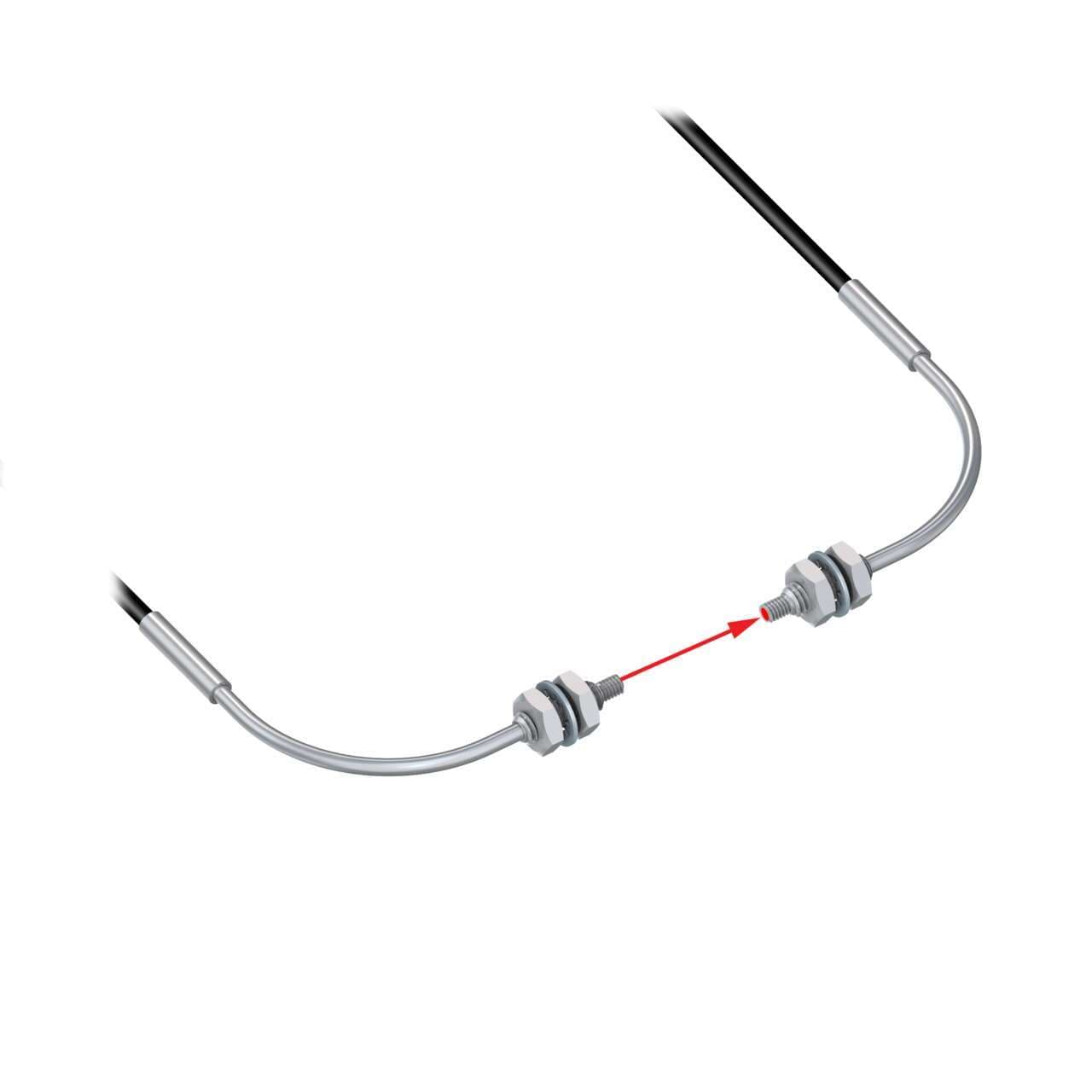

PIAT66U Banner Through Beam Sensors

Product Details

• Weight
  54.43104 g
• Country Of Origin
  JP
• Max Distance: DF-G1 (mm)
  No Data
• Tariff Fiber Meters (fbm)
  4
• Fiber Sensing End Size - Mounting Area
  M4
• Max Distance: DF-G3 (mm)
  No Data
• Max Distance: DF-G2 (mm)
  No Data
• Measured Max Distance (mm)
  No Data
• Feature: Small Object Detection
  No
• Termination Type
  Plastic Fiber Sensors
• Application: Liquid Level
  No
• Feature: Extended Range
  No
• Integrated Lens
  No
• Application: Vacuum Feed Through
  None
• Feature: Chemical Resistant
  No
• Minimum Repeat Bending Endurance
  10000
• Max Temp ( °C)
  70
• Flex Relief
  No
• Termination
  Free Cut
• Sensing End Segment 3
  Thread
Sensing End Segment 1
Angle
Minimum Bend Radius (mm)
40
Sensing End Segment 2
Thread
Core Diameter (mm)
1.5
Retractile
No
Fiber Sensing End Size
M2.5
Fiber Length (m)
2
Beam Exit
Right Angle
Fiber Sheathing Material (Jacket)
Polyethylene
Fiber Optic Type
Plastic
Fiber Sensing End Tip
Thread
Sensing Mode (Detailed)
Reflective
Sensing End Material (Specific)
Stainless Steel
Sensing Mode (General)
Opposed
Quantity Included
2
Housing Style
Round
Main function
Fiber sensor
Diameter
1.5mm fiber core
Thread size
M4
Design
through-beam system / opposed mode pair of individual fibers Side / right-angled sensing
Order code / Manufacturer SKU
42885
Product series / family name
Fiber sensors
Functions
Fiber optic sensor
Material
Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
Primary brand
Banner Engineering
Shape
Cylindrical (threaded) end tip
Length
6ft / 2m
Sub-range name
Plastic fiber series
Ambient air temperature for operation
+70 °C
