PIAT46UTA-VL Banner Through Beam Sensors
Part#:PIAT46UTA-VL
Alt. Part#:93162
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description

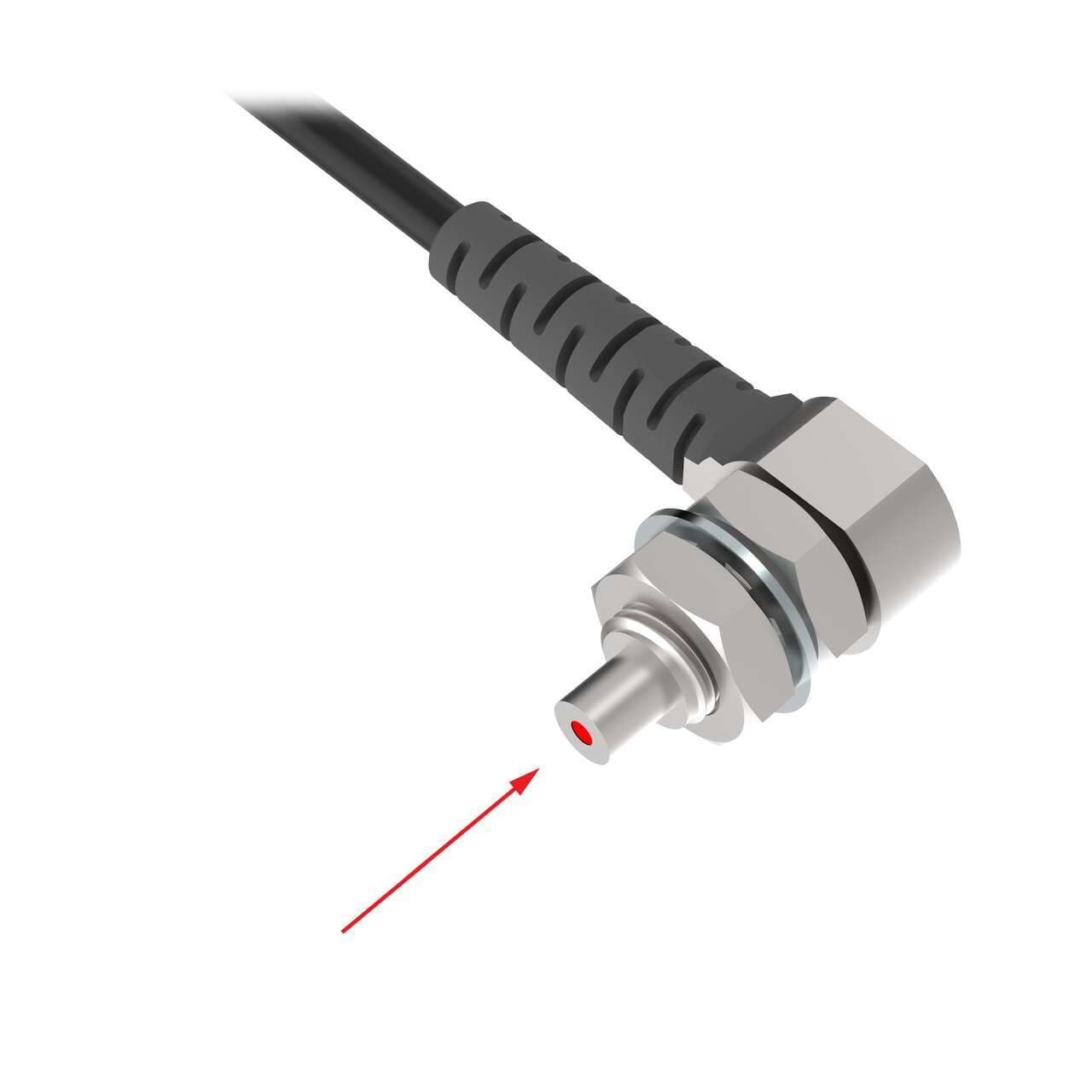

Plastic Fiber: Opposed; Core Dia.1 mm; Fiber Length 2 m; Right-Angle; Thread M4; Standard Bend Radius 25 mm; Flex Relief; Free Cut; Vantage Line
Product Details
- Weight 26.4897728 g
- Country Of Origin TW
- Measured Max Distance (mm) 433
- Max Distance: DF-G1 (mm) 433
- Max Distance: DF-G2 (mm) 701
- Max Distance: DF-G3 (mm) 3362
- Fiber Sensing End Size - Mounting Area M4
- Tariff Fiber Meters (fbm) 4
- Termination Type Plastic Fiber Sensors
- Application: Vacuum Feed Through None
- Application: Liquid Level No
- Feature: Small Object Detection No
- Feature: Extended Range No
- Minimum Repeat Bending Endurance 1000
- Integrated Lens No
- Feature: Chemical Resistant No
- Max Temp ( °C) 70
- Termination Free Cut
- Minimum Bend Radius (mm) 25
- Core Diameter (mm) 1
- Flex Relief Yes
- Retractile No
- Fiber Sensing End Size M2.6
- Fiber Sensing End Tip Thread
- Sensing End Segment 3 Thread
- Sensing End Segment 1 Angle
- Sensing End Segment 2 Thread
- Fiber Length (m) 2
- Fiber Sheathing Material (Jacket) Polyethylene
- Sensing End Material (Specific) Stainless Steel
- Beam Exit Right Angle
- Sensing Mode (General) Opposed
- Sensing Mode (Detailed) Reflective
- Fiber Optic Type Plastic
- Quantity Included 2
- Housing Style Round
- Max Range: DF-G3 (mm) >3m - <=5m
- Sub-range name Plastic fiber - Vantage Line
- Thread size M6
- Equivalent to PIAT46UTAVL
- Shape Cylindrical (threaded) end tip
- Length 6ft / 2m
- Main function Fiber sensor
- Functions Fiber optic sensor
- Order code / Manufacturer SKU 93162
- Primary brand Banner Engineering
- Design through-beam system / opposed mode flex strain relief pair of individual fibers Side / right-angled sensing
- Material Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
- Product series / family name Fiber sensors
- Diameter 1mm fiber core
- Ambient air temperature for operation +70 °C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIAT46UTA-VL on Powermatic Associates is $84.00. Order now.
About the product
Banner Engineering PIAT46UTA-VL is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode pair of individual fibers positioned side by side with right-angled sensing. This sensor falls under the Plastic fiber series and is characterized by a 1.5mm fiber core diameter. It is equipped with a cylindrical (threaded) end tip made of stainless steel, while the fiber itself is composed of plastic, and the sheath is made of polyethylene (PE). The total length of the fiber is 30ft (9m), and it is capable of operating in ambient air temperatures up to +70°C.
