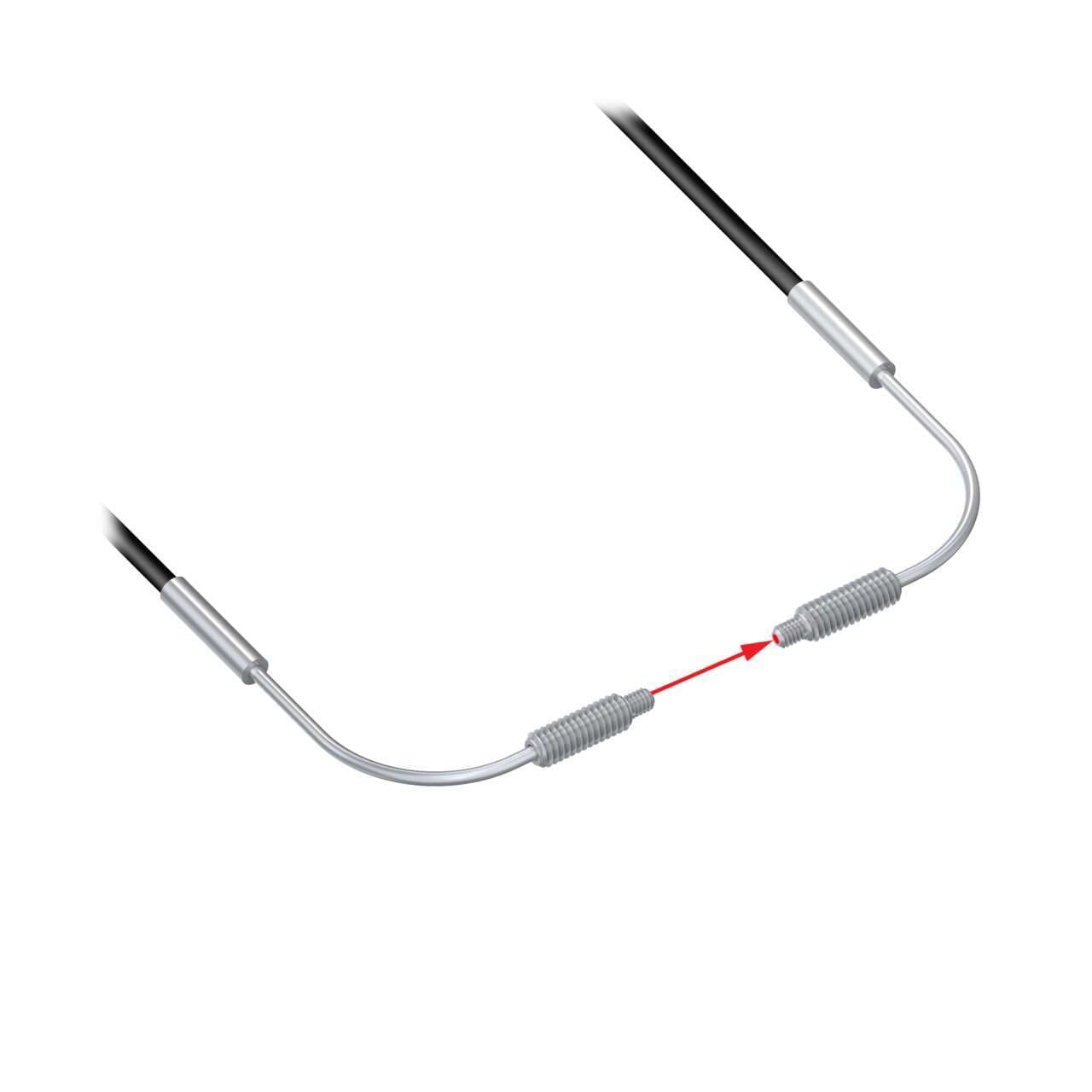

PIAT46UHF Banner Through Beam Sensors
Part#:PIAT46UHF
Alt. Part#:56090
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 2 m; Angle, Thread; DuraBend, Free cut
Product Details
- Weight 36.28736 g
- Country Of Origin JP
- Max Distance: DF-G1 (mm) No Data
- Measured Max Distance (mm) No Data
- Termination Type Plastic Fiber Sensors
- Max Distance: DF-G3 (mm) No Data
- Application: Liquid Level No
- Feature: Extended Range No
- Integrated Lens No
- Feature: Small Object Detection No
- Minimum Repeat Bending Endurance 1000
- Flex Relief No
- Fiber Sensing End Size M2.5
- Sensing End Material (Specific) Stainless Steel
- Fiber Sensing End Size - Mounting Area M4
- Max Distance: DF-G2 (mm) No Data
- Tariff Fiber Meters (fbm) 4
- Application: Vacuum Feed Through None
- Feature: Chemical Resistant No
- Max Temp ( °C) 70
- Termination Free Cut
- Minimum Bend Radius (mm) 2
- Core Diameter (mm) 1
- Sensing End Segment 3 Thread
- Retractile No
- Sensing End Segment 2 Thread
- Sensing End Segment 1 Angle
- Fiber Length (m) 2
- Beam Exit Right Angle
- Fiber Sensing End Tip Thread
- Fiber Sheathing Material (Jacket) Polyethylene
- Sensing Mode (Detailed) Reflective
- Quantity Included 2
- Sensing Mode (General) Opposed
- Fiber Optic Type Plastic
- Housing Style Round
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIAT46UHF on Powermatic Associates is $112.00. Order now.
About the product

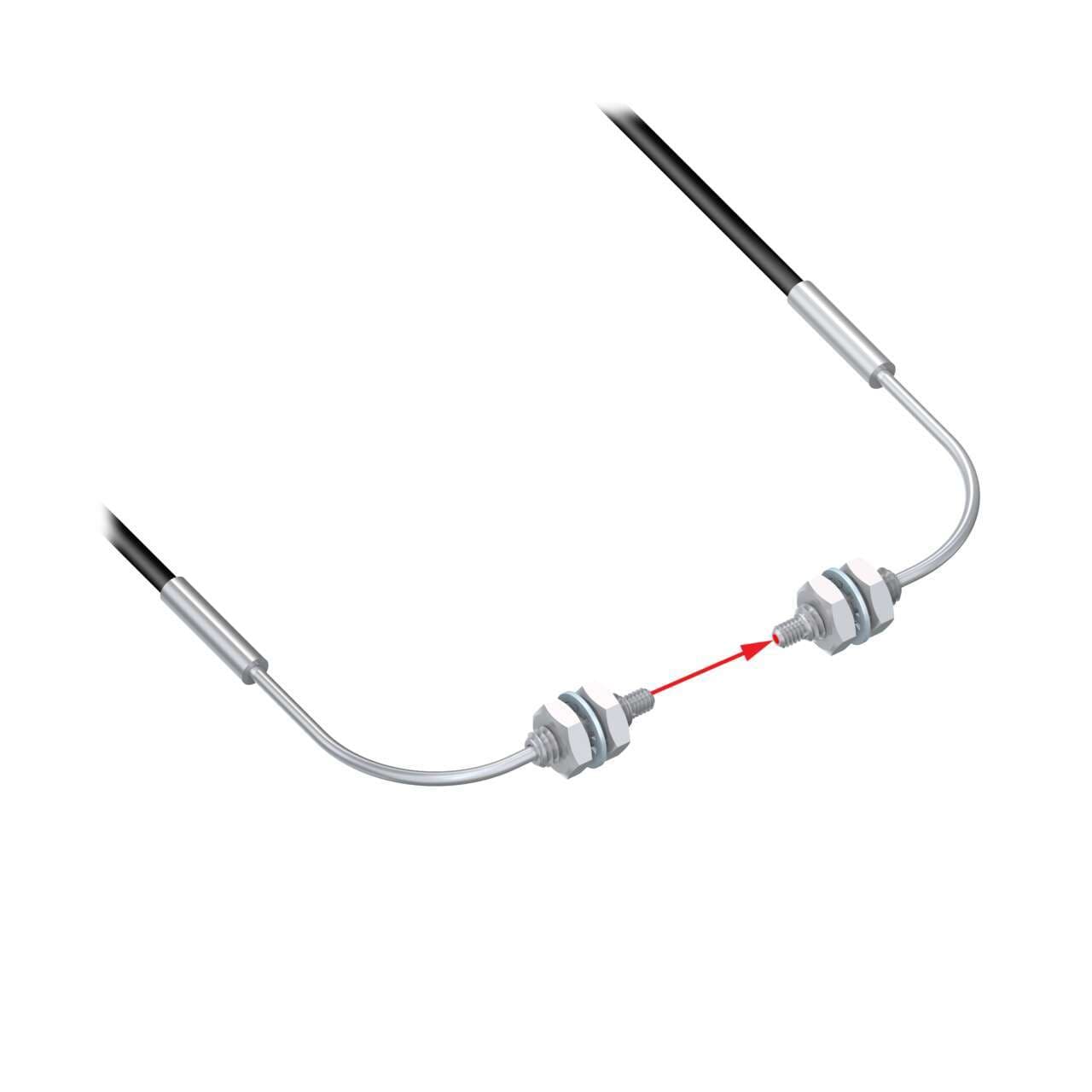

Banner Engineering PIAT46UHF is a fiber optic sensor designed for precise detection tasks. It operates within an ambient air temperature of up to +70°C and features a through-beam system, also known as an opposed mode flex strain relief pair of individual fibers, with side/right-angled sensing. The sensor has a 1mm fiber core diameter and is part of the Plastic fiber (Vantage Line) series. Its cylindrical (threaded) end tip is made from stainless steel, while the fiber itself is plastic, and the sheath is constructed from Polyethylene (PE), ensuring durability and flexibility. The total length of the sensor is 6ft / 2m, accommodating various installation requirements.
