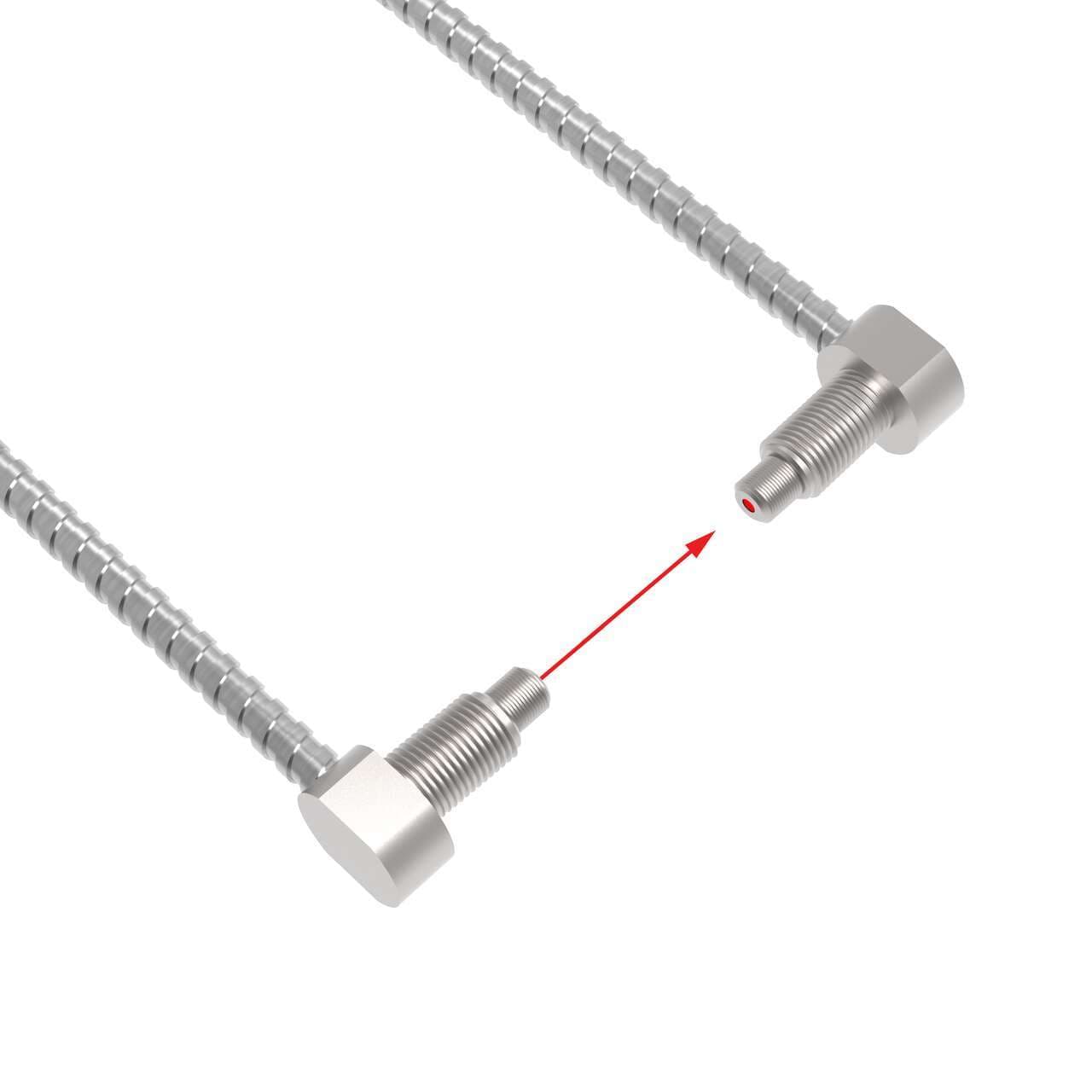

PIAT46TSL5TA-VL Banner Through Beam Sensors

Name: PIAT46TSL5TA-VL
Brand: Banner
Price: 215 USD
Availability: BackOrder

PIAT46TSL5TA-VL on Powermatic Associates

Part#:PIAT46TSL5TA-VL

Alt. Part#:93951

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 2 m; Tight Angle, Thread M4; Stainless Monocoil; 25 mm Bend Radius; Vantage Line

Product Details

Weight
45.3592 g
Country Of Origin
TW
Application: Liquid Level
No
Tariff Fiber Meters (fbm)
4
Measured Max Distance (mm)
146
Max Distance: DF-G1 (mm)
146
Max Distance: DF-G2 (mm)
236
Max Distance: DF-G3 (mm)
1131
Fiber Sensing End Size - Mounting Area
M4
Termination Type
Plastic Fiber Sensors
Feature: Extended Range
No
Application: Vacuum Feed Through
None
Integrated Lens
No
Feature: Small Object Detection
No
Feature: Chemical Resistant
No
Max Temp ( °C)
70
Minimum Repeat Bending Endurance
1000
Termination
Terminated
Sensing End Segment 3
Thread
Core Diameter (mm)
1

Minimum Bend Radius (mm)

Flex Relief

Yes

Retractile

Sensing End Segment 2

Thread

Sensing End Segment 1

Angle

Fiber Sensing End Size

M2.6

Fiber Length (m)

Sensing Mode (General)

Opposed

Fiber Sensing End Tip

Thread

Housing Style

Round

Fiber Sheathing Material (Jacket)

Stainless Steel Monocoil

Sensing Mode (Detailed)

Reflective

Sensing End Material (Specific)

Stainless Steel

Beam Exit

Right Angle

Max Range: DF-G3 (mm)

>1m - <=3m

Fiber Optic Type

Plastic

Quantity Included

Primary brand

Banner Engineering

Diameter

1mm fiber core

Equivalent to

PIAT46TSL5TAVL

Product series / family name

Fiber sensors

Design

through-beam system / opposed mode pair of individual fibers Side / right-angled sensing

Length

6ft / 2m

Sub-range name

Plastic fiber - Vantage Line

Thread size

Order code / Manufacturer SKU

93951

Main function

Fiber sensor

Functions

Fiber optic sensor

Material

Plastic fiber Plastic fiber stainless flexible fiber sheath tub.

Shape

Cylindrical (threaded) end tip

Ambient air temperature for operation

+70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIAT46TSL5TA-VL on Powermatic Associates is $215.00. Order now.

About the product

Banner Engineering PIAT46TSL5TA-VL is a fiber optic sensor designed for precise detection tasks. It operates within an ambient air temperature up to +70°C and features a through-beam system, also known as an opposed mode pair of individual fibers, with side and right-angled sensing capabilities. The sensor has a 1mm fiber core diameter and is part of the Plastic fiber series. Its design includes a cylindrical (threaded) end tip, with the sensing end made of stainless steel and the fiber sheathed in polyethylene (PE). The total length of the fiber is 6ft or approximately 2 meters.
