PIAT46TMB5MTA Banner Through Beam Sensors

PIAT46TMB5MTA on Powermatic Associates
Banner
  • PIAT46TMB5MTA
  • PIAT46TMB5MTA

Part#:PIAT46TMB5MTA

Alt. Part#:74964

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

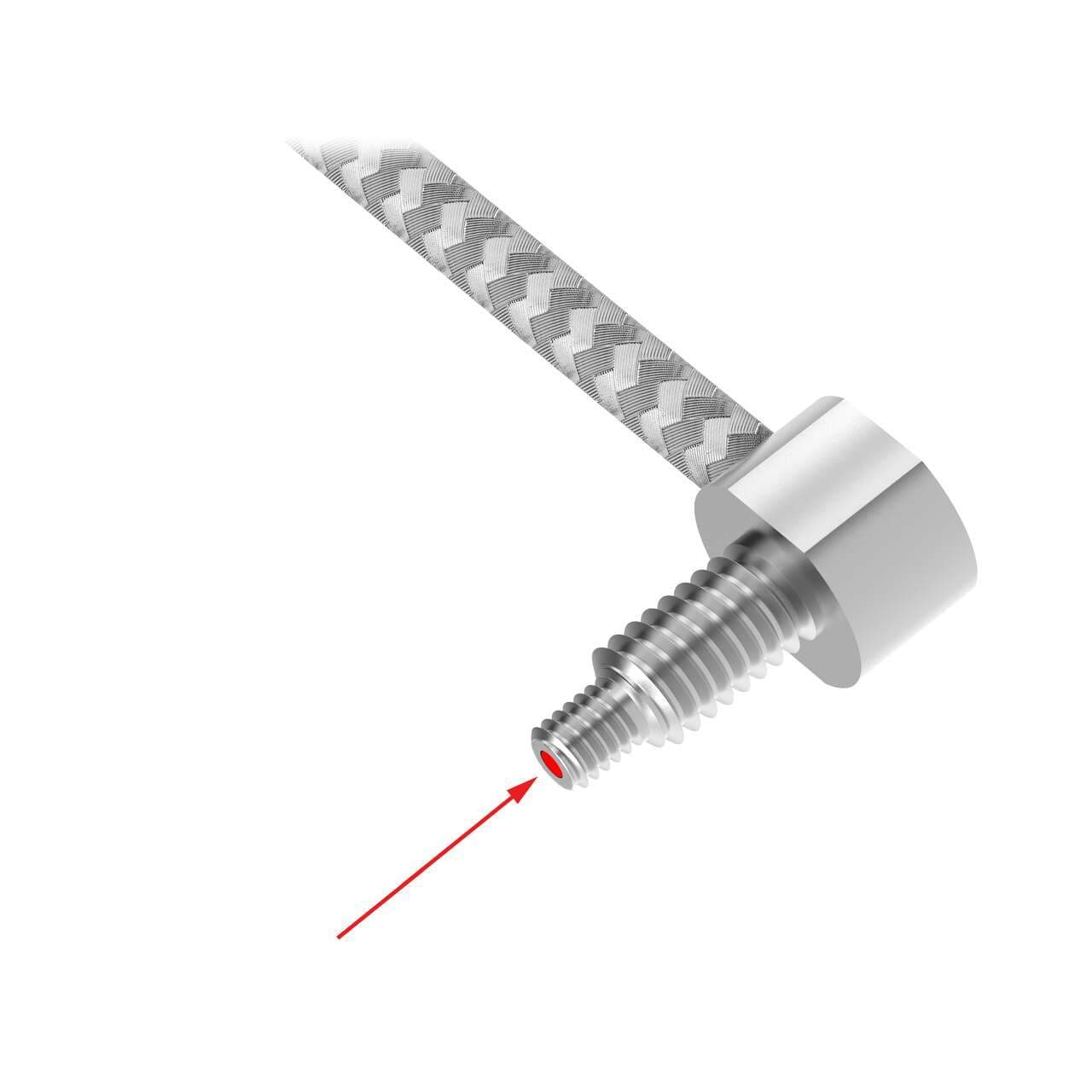

Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 2 m; Angle, Thread; SteelSkin, TMB5 Termination

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    JP
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Measured Max Distance (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    M4
  • Termination Type
    Plastic Fiber Sensors
  • Tariff Fiber Meters (fbm)
    4
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Feature: Small Object Detection
    No
  • Integrated Lens
    No
  • Feature: Extended Range
    No
  • Feature: Chemical Resistant
    No
  • Minimum Repeat Bending Endurance
    1000
  • Max Temp ( °C)
    70
  • Termination
    Terminated
  • Minimum Bend Radius (mm)
    12
  • Core Diameter (mm)
    1
  • Flex Relief
    No
  • Sensing End Segment 1
    Angle
  • Retractile
    No
  • Sensing End Segment 3
    Thread
  • Sensing End Segment 2
    Thread
  • Fiber Sensing End Size
    M2.5
  • Fiber Length (m)
    2
  • Fiber Sensing End Tip
    Thread
  • Sensing Mode (General)
    Opposed
  • Fiber Sheathing Material (Jacket)
    STEELSKIN
  • Fiber Optic Type
    Plastic
  • Beam Exit
    Right Angle
  • Sensing End Material (Specific)
    Stainless Steel
  • Sensing Mode (Detailed)
    Reflective
  • Housing Style
    Round
  • Quantity Included
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIAT46TMB5MTA on Powermatic Associates is $409.00. Order now.

About the product

Banner Engineering PIAT46TMB5MTA is a fiber optic sensor designed for precise detection tasks. It operates within an ambient air temperature up to +70°C and features a through-beam system, also known as an opposed mode pair of individual fibers positioned side by side with right-angled sensing. The sensor is part of the Plastic fiber (Vantage Line) series, indicating its use of plastic fiber with a 1mm fiber core diameter. It is encased in a stainless steel fiber sheath for added durability. The cylindrical (threaded) end tip ensures easy installation and secure mounting. This model has a length of 6ft / 2m, accommodating various application needs.
