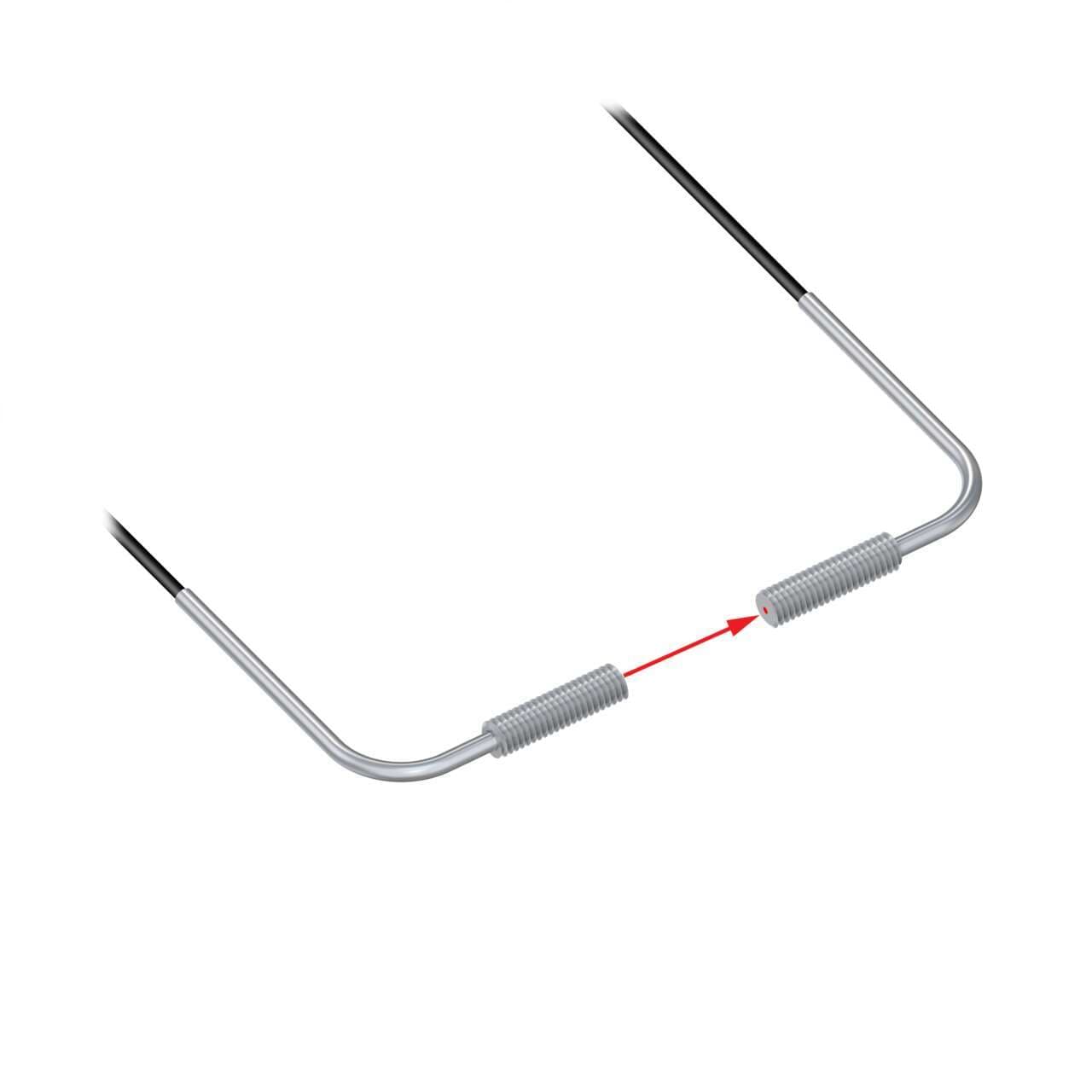

Part#:PIAT26U

Alt. Part#:28235

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Opposed Mode; Core Dia.: 0.5 mm; Fiber Length 2 m; Angle, Thread; Free cut

Product Details

  • Weight
    40.369688 g
  • Country Of Origin
    JP
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Measured Max Distance (mm)
    No Data
  • Termination Type
    Plastic Fiber Sensors
  • Feature: Extended Range
    No
  • Integrated Lens
    No
  • Feature: Small Object Detection
    No
  • Core Diameter (mm)
    0.5
  • Termination
    Free Cut
  • Flex Relief
    No
  • Fiber Length (m)
    2
  • Quantity Included
    2
  • Retractile
    No
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Fiber Sensing End Tip
    Thread
  • Max Distance: DF-G2 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    M3
  • Tariff Fiber Meters (fbm)
    4
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Feature: Chemical Resistant
    No
  • Minimum Repeat Bending Endurance
    5000
  • Beam Exit
    Right Angle
  • Max Temp ( °C)
    70
  • Minimum Bend Radius (mm)
    10
  • Sensing Mode (Detailed)
    Reflective
  • Sensing End Material (Specific)
    Nickel-Plated Brass
  • Sensing Mode (General)
    Opposed
  • Fiber Optic Type
    Plastic
  • Sensing End Segment 2
    Thread
  • Sensing End Segment 1
    Angle
  • Housing Style
    Round
  • Fiber Sensing End Size
    M3
  • Diameter
    0.5mm fiber core
  • Main function
    Fiber sensor
  • Length
    6ft / 2m
  • Ambient air temperature for operation
    +70 °C
  • Order code / Manufacturer SKU
    28235
  • Primary brand
    Banner Engineering
  • Sub-range name
    Plastic fiber series
  • Product series / family name
    Fiber sensors
  • Material
    Brass sensing end Plastic fiber Polyethylene fiber sheath
  • Functions
    Fiber optic sensor
  • Thread size
    M3
  • Design
    through-beam system / opposed mode pair of individual fibers Side / right-angled sensing
  • Shape
    Cylindrical (threaded) end tip

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIAT26U on Powermatic Associates is $89.00. Order now.

About the product

Banner Engineering PIAT26U is a fiber optic sensor designed for use in applications requiring precise detection through a through-beam system or opposed mode pair of individual fibers positioned side by side with right-angled sensing. It features a 1mm fiber core diameter and is part of the Plastic fiber series. The sensor has a cylindrical (threaded) end tip, constructed with a stainless steel sensing end and a plastic fiber encased in a Steelskin fiber sheath for enhanced durability. It has a total length of 10ft (3 meters) and is capable of operating in ambient air temperatures up to +70°C.
