PIAT16U Banner Through Beam Sensors

PIAT16U on Powermatic Associates
Banner
  • PIAT16U
  • PIAT16U

Part#:PIAT16U

Alt. Part#:48022

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Opposed Mode; Core Dia.: 0.25 mm; Fiber Length 2 m; Angle, Thread; Free cut

Product Details

  • Weight
    36.28736 g
  • Country Of Origin
    JP
  • Max Distance: DF-G3 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Measured Max Distance (mm)
    No Data
  • Max Distance: DF-G1 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    M3
  • Feature: Small Object Detection
    No
  • Feature: Extended Range
    No
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Feature: Chemical Resistant
    No
  • Integrated Lens
    No
  • Minimum Repeat Bending Endurance
    1000
  • Termination
    Free Cut
  • Core Diameter (mm)
    0.3
  • Flex Relief
    No
  • Retractile
    No
  • Sensing End Segment 2
    Thread
  • Sensing End Segment 3
    Sideview
  • Sensing End Segment 1
    Angle
  • Fiber Sensing End Size
    M3
  • Beam Exit
    Right Angle
  • Fiber Optic Type
    Plastic
  • Fiber Sensing End Tip
    Sideview
  • Sensing Mode (Detailed)
    Reflective
  • Sensing Mode (General)
    Opposed
  • Termination Type
    Plastic Fiber Sensors
  • Tariff Fiber Meters (fbm)
    4
  • Max Temp ( °C)
    70
  • Minimum Bend Radius (mm)
    5
  • Fiber Length (m)
    2
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Sensing End Material (Specific)
    Nickel-Plated Brass
  • Housing Style
    Round
  • Quantity Included
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIAT16U on Powermatic Associates is $101.00. Order now.

About the product

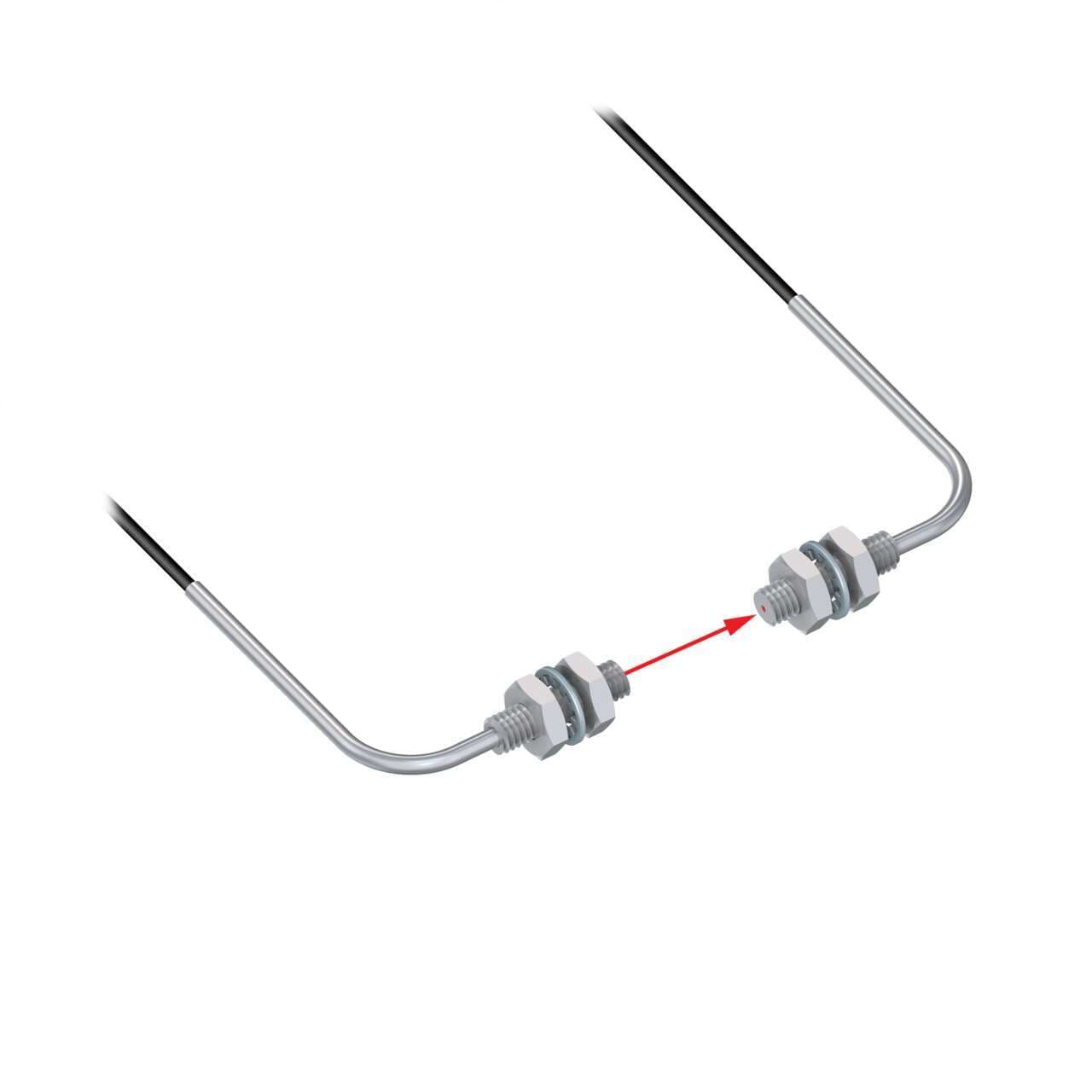

Banner Engineering PIAT16U is a fiber optic sensor designed for precise detection tasks, featuring a through-beam system with an opposed mode pair of individual fibers positioned side by side in a right-angled sensing configuration. This sensor is part of the Plastic fiber series, characterized by a 0.5mm fiber core diameter and a 6ft (2m) length. It is built with a cylindrical (threaded) brass sensing end, while the fiber itself is made of plastic, and the sheath is constructed from polyethylene (PE), ensuring durability and compatibility with a variety of applications. The PIAT16U is engineered to operate effectively in ambient air temperatures up to +70°C, making it suitable for a wide range of industrial environments.
