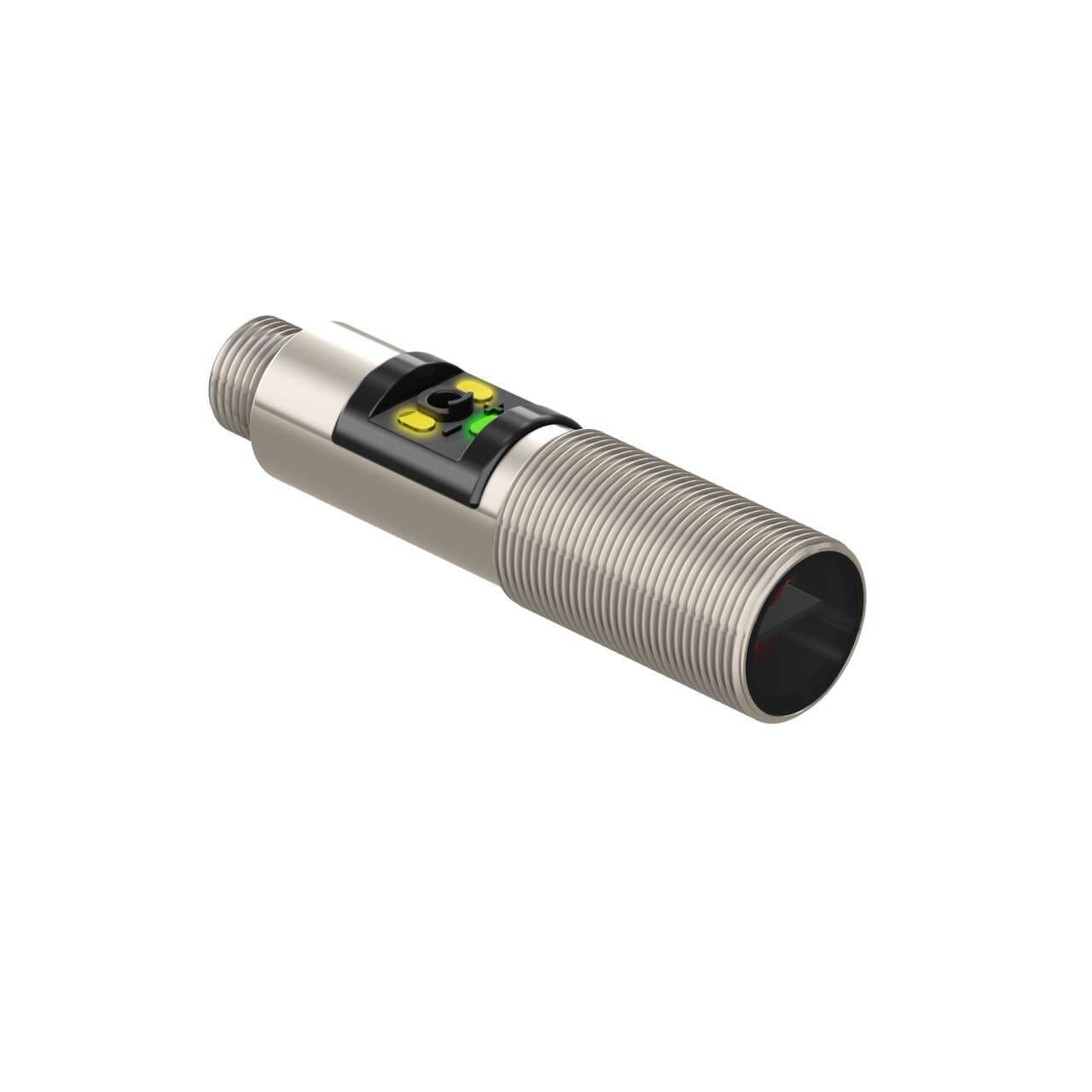

M18-4VPLV-Q8 Banner Proximity Sensors
Part#:M18-4VPLV-Q8
Alt. Part#:95487
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
M18-4 Series: Stainless: Non-Polarized Retroreflective with Pot; Range: variable to 7.5 m; Input: 10-30 V dc; Outputs: Complementary PNP; 4-pin M12 Integral QD
Product Details
- Weight 22.6796 g
- Country Of Origin CN
- Sensing distance 7.5m
- Thread size M18
- Product series / family name M18 barrel series
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Light Color Visible red
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Material Stainless steel housing Acrylic lns.
- Compliant with standard(s) cULus CE
- Sub-range name M18-3 (stainless steel)
- Shape Cylindrical threaded/barrel
- Digital outputs 1 x digital output (PNP transistor)
- Ambient air temperature for operation -40...+70 °C
- Main function Sensor (Photo-electric)
- Order code / Manufacturer SKU 95487
- Design retro-reflective mode
- Degree of protection IP67 IP69K
- Primary brand Banner Engineering
- Functions Photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting) potentiometer adjustment
- Wavelength 624 nm
- Operating mode Light-ON Dark-ON
- Response time 1.5ms / 0.0015 s
- Equivalent to M184VPLVQ8
- Primary Housing Material Stainless Steel
- Special Feature: Intrinsically Safe No
- Min Op. Temp. (°C) -40
- NEMA Rating N/A
- Feature: Encapsulated No
- Sensing Beam Visible Red LED
- Special Feature: Water Detection No
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Sensing Mode (Detailed) Non-Polarized
- Delay at Power-up (ms) 100
- IP Rating IP67, IP69
- Feature: Ecolab Certified Yes
- Sensing Mode (General) Retroreflective
- Power Supply/Supply Voltage 10-30 V dc
- Barrel Diameter (mm) 18
- DeviceNet No
- Input/Output Discrete
- Operation Light/Dark Operate
- Adjustments Potentiometer
- Feature: Audible No
- Max Op. Temp. (°C) 70
- Lens Material Acrylic
- Feature: Chemical Resistant Yes
- Max Sensing Distance (mm) 7500
- Output response time (ms) 1.5
- Indicator LEDs
- IO Link No
- Connection Integral QD
- Opposed Mode Emitter/Receiver N/A
- Power DC
- Outputs PNP
- Repeatability (µs) 100
- Sensing Beam Wavelength 624
- Feature: Washdown Rated Yes
- Housing Style Barrel
- Quick Disconnect Type M12 (Euro)
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M18-4VPLV-Q8 on Powermatic Associates is $119.00. Order now.
About the product
Banner Engineering M18-4VPLV-Q8 is a photo-electric sensor from the M18-3 (stainless steel) series designed in a retro-reflective mode with potentiometer adjustment. It features a visible red light with a wavelength of 624 nm and is housed in a stainless steel casing with an acrylic lens. This sensor is shaped in an M18 cylindrical threaded/barrel form and comes pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function within an ambient air temperature range of -40 to +70 °C. The M18-4VPLV-Q8 offers a sensing distance of 7.5m and includes 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 1.5ms / 0.0015 s. It is designed for both Light-ON and Dark-ON operating modes and provides a degree of protection rated at IP67 and IP69K.
