EA5R450PIXMODSRLCQ
Banner
Product Lifecycle: Active

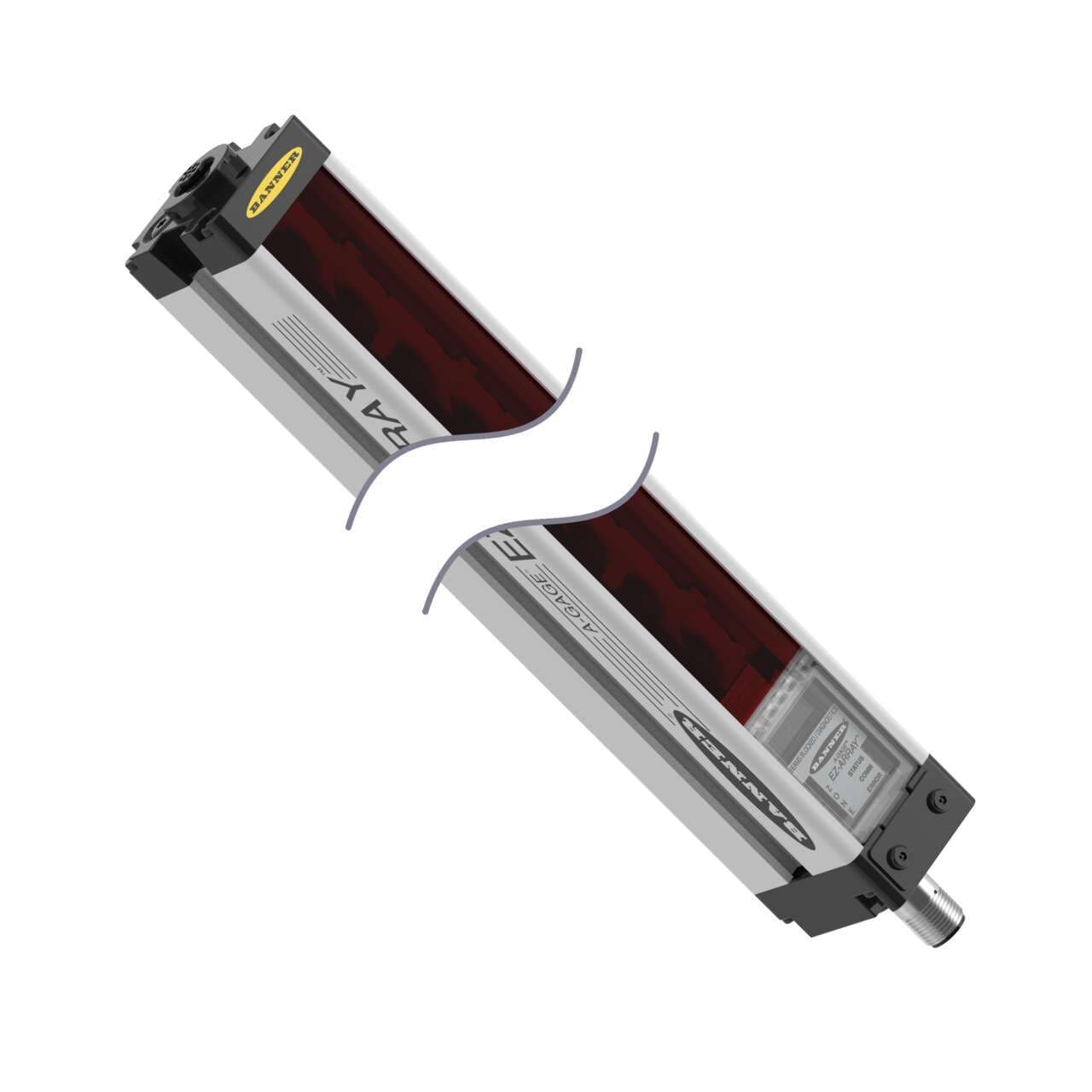

Banner Engineering EA5R450PIXMODSRLCQ is a sensor designed for edge detection, belonging to the EZ-ARRAY series. It features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. This sensor offers two analog outputs (4-20mA) and two digital outputs (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. With an IP65 degree of protection, it is built to withstand challenging environments. The sensor has a rectangular shape, with dimensions specifying a 450mm array length, and is capable of detecting objects sized between 5-10mm. It boasts a resolution of 5mm and a sensing distance ranging from 30mm to 1.5m. This model is specifically designed as a short-range low-contrast measuring light curtain array edge/profile sensor (receiver alone). It comes pre-equipped with an 8-pin Euro-style M12 connector for easy installation and operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). Communication is facilitated via the Modbus RTU RS-485 protocol, and the sensor features 90 beams with a 5mm beam spacing/pitch for precise detection.
Banner Engineering EA5R450PIXMODSRLCQ is a sensor designed for edge detection, belonging to the EZ-ARRAY series. It features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. This sensor offers two analog outputs (4-20mA) and two digital outputs (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. With an IP65 degree of protection, it is built to withstand challenging environments. The sensor has a rectangular shape, with dimensions specifying a 450mm array length, and is capable of detecting objects sized between 5-10mm. It boasts a resolution of 5mm and a sensing distance ranging from 30mm to 1.5m. This model is specifically designed as a short-range low-contrast measuring light curtain array edge/profile sensor (receiver alone). It comes pre-equipped with an 8-pin Euro-style M12 connector for easy installation and operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). Communication is facilitated via the Modbus RTU RS-485 protocol, and the sensor features 90 beams with a 5mm beam spacing/pitch for precise detection.
Product details
- Max Relative Humidity95%
- Power Supply12-30V dc
- Emitter/Receiver Range (m)0.3 - 1.5
- Discrete OutputPNP
- Analog OutputCurrent (4-20 mA)
- RS-485Yes
- Minimum Object Sensitivity (mm)5-10
- Array Length (mm)450
- Max Temp (°C)70
- Min Temp (°C)-40
- Housing Length (mm)529
- Modbus RTUYes
- Number of Beams90
- RS-232No
- Device TypeTwo-Piece
- IO LinkNo
- Beam Spacing5 mm
- DeviceNetNo
- Primary Housing MaterialAluminum
- Sensing Mode (Detailed)Receiver
- Low ContrastYes
- Short RangeYes
- PowerDC
- Sub-range nameEZ-ARRAY
- Connection typePre-equipped with 8-pin Euro-style M12 connector
- MaterialAluminium housing
- Compliant with standard(s)CE
- Main functionSensor (Edge)
- Communication protocolModbus RTU RS-485
- Sensing distance30cm...1.5m
- Degree of protectionIP65
- Primary brandBanner Engineering
- Supply voltage (DC)12Vdc-30Vdc (24Vdc nom.)
- DisplayLCD 3 digits display
- FunctionsShort-range low-contrast measuring light curtain array edge/profile sensor receiver green LED (power ON) red LED (failure)
- Dimensions450mm array length
- Order code / Manufacturer SKU85582
- Product series / family nameA-GAGE series
- Distance90 beams / 5mm beam spacing/pitch
- Digital outputs2 x digital outputs (PNP transistors)
- Analog outputs2 x analog outputs (4-20mA)
- Resolution5mm
- Ambient air temperature for operation-40...+70 °C
- Detectable object size5-10mm
