EA5R150PIXMODSRQ Banner Measurement Sensors

EA5R150PIXMODSRQ on Powermatic Associates
Banner

Part#:EA5R150PIXMODSRQ

Manufacturer:Banner

Alt. Part#:81139

Product Lifecycle:Active

Get a quick Quote!

EZ-ARRAY Short Range Receiver: 150 mm (5.9 in); Range: (matching emitter sold separately) 30-1500 mm; Input:; Outputs: 2 Solid-State PNP 2 Analog 4-20 mA EIA-485; 8-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the EA5R150PIXMODSRQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1487.78176 g
  • Country Of Origin
    MX
  • Discrete Output
    PNP
  • Power Supply
    12-30V dc
  • Max Relative Humidity
    95%
  • Emitter/Receiver Range (m)
    0.3 - 1.5
  • Max Temp (°C)
    70
  • RS-485
    Yes
  • Minimum Object Sensitivity (mm)
    5-10
  • Analog Output
    Current (4-20 mA)
  • Array Length (mm)
    150
  • Housing Length (mm)
    227
  • Min Temp (°C)
    -40
  • RS-232
    No
  • Number of Beams
    30
  • Power
    DC
  • Modbus RTU
    Yes
  • DeviceNet
    No
  • Primary Housing Material
    Aluminum
  • Device Type
    Two-Piece
  • Short Range
    Yes
  • Beam Spacing
    5 mm
  • IO Link
    No
  • Sensing Mode (Detailed)
    Receiver

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

EA5R150PIXMODSRQ Description

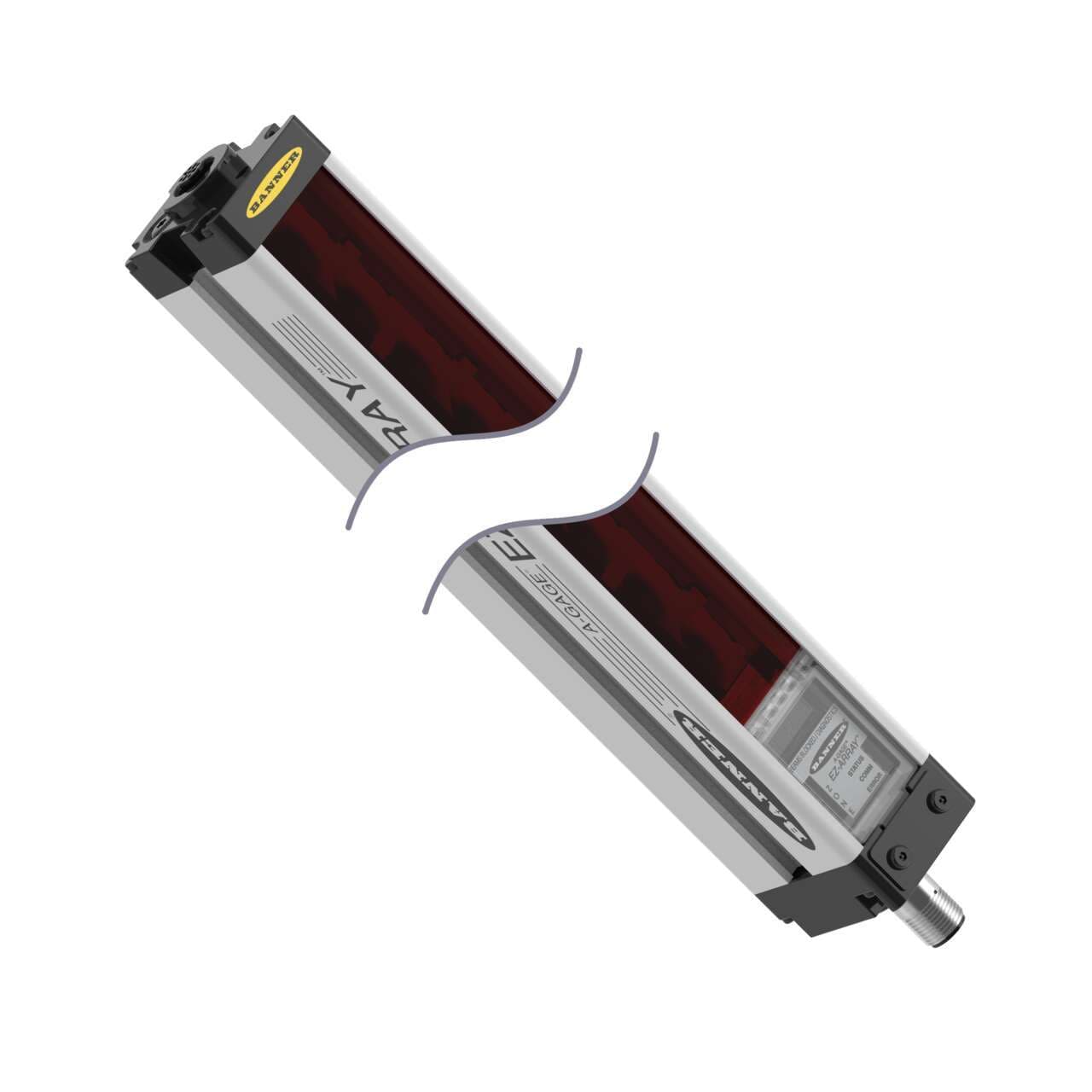

Banner Engineering EA5R150PIXMODSRQ is a sensor designed for edge detection with a robust aluminium housing. This sensor, part of the EZ-ARRAY series, functions as a short-range measuring light curtain array edge/profile sensor and is specified as the receiver alone. It features a 150mm array length and is capable of detecting objects sized between 5-10mm with a resolution of 5mm. The sensing distance ranges from 30mm to 1.5m, accommodating various application needs. It offers two analog outputs (4-20mA) and two digital outputs (PNP transistor; complementary NO/NC) for versatile connectivity. The sensor operates within an ambient air temperature range of -40 to +70°C and is protected by an IP65-rated enclosure, ensuring durability in challenging environments. It is pre-equipped with an 8-pin Euro-style M12 connector for easy installation and supports a supply voltage of 12Vdc-30Vdc (24Vdc nom.). Communication is facilitated via the Modbus RTU RS-485 protocol, and the sensor features 30 beams with a 5mm beam spacing/pitch, enhancing its detection capabilities.

Related documents EA5R150PIXMODSRQ Specs

EA5R150PIXMODSRQ 126701.pdf
