EA5R600PUXMODSRQ Banner Measurement Sensors
Part#:EA5R600PUXMODSRQ
Manufacturer:Banner
Alt. Part#:11359
Product Lifecycle:Active
Get a quick Quote!

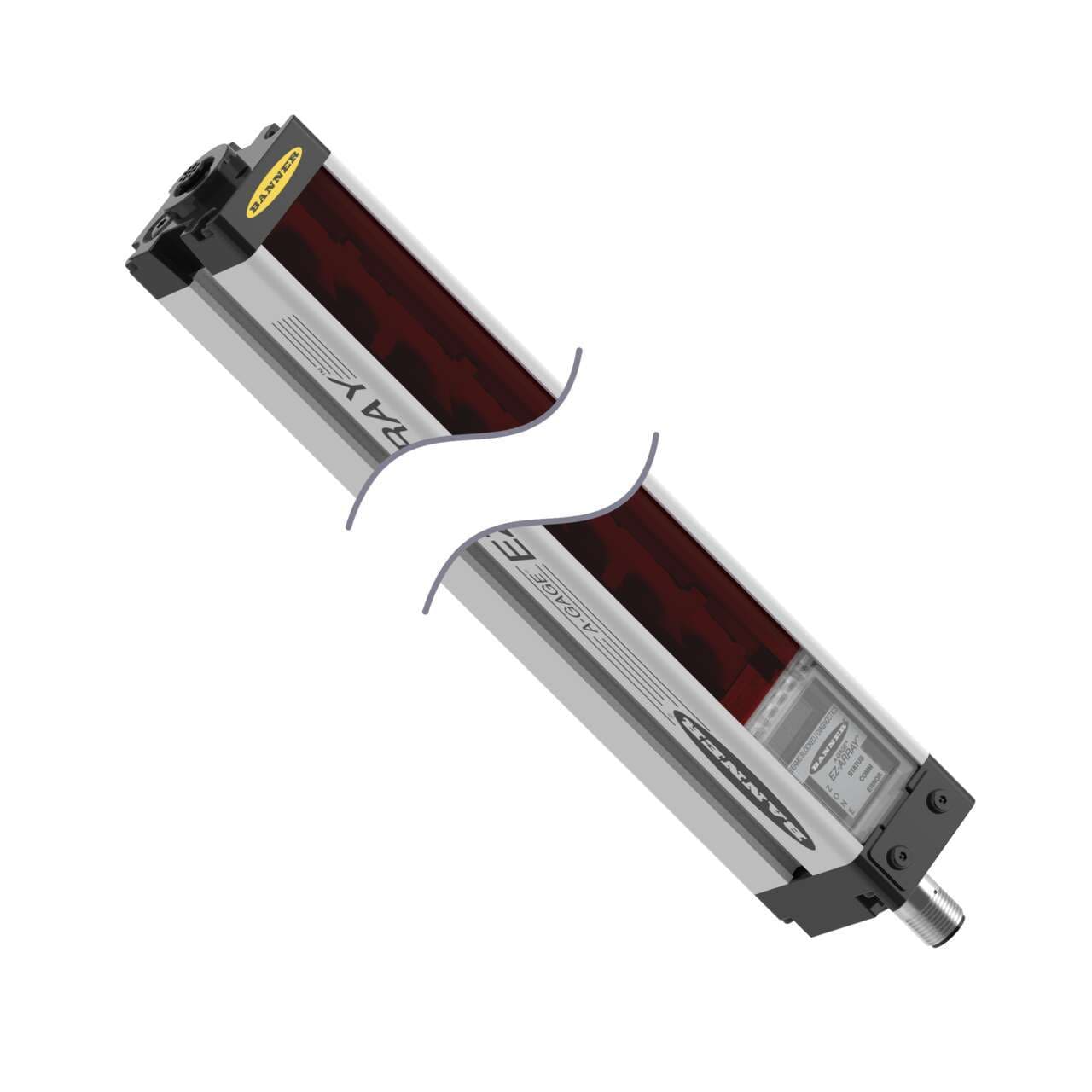

EZ-ARRAY Short Range Receiver:600 mm; Range 30-1500 mm;Input 12-30 V dc; Output 2 NPN Discrete; Output 2 0-10 V Analog; EIA-485; 8-pin M12 QD; 5-pin M12
About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the EA5R600PUXMODSRQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 2263.42408 g
- Country Of Origin MX
- Max Relative Humidity 95%
- Power Supply 12-30V dc
- Emitter/Receiver Range (m) 0.3 - 1.5
- Discrete Output PNP
- Max Temp (°C) 70
- Minimum Object Sensitivity (mm) 5-10
- Housing Length (mm) 678
- Array Length (mm) 600
- Number of Beams 120
- Min Temp (°C) -40
- RS-485 Yes
- Analog Output Voltage (0-10 V)
- RS-232 No
- Short Range Yes
- Modbus RTU Yes
- IO Link No
- Device Type Two-Piece
- Primary Housing Material Aluminum
- Sensing Mode (Detailed) Receiver
- Power DC
- Beam Spacing 5 mm
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
EA5R600PUXMODSRQ Description
Banner Engineering EA5R600PUXMODSRQ is a sensor designed for edge detection, belonging to the EZ-ARRAY series. This sensor features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. It is equipped with two analog outputs (0-10Vdc) and two digital outputs (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. The sensor offers a degree of protection rated at IP65 and has dimensions with a 600mm array length. It is capable of detecting objects sized between 5-10mm, with a resolution of 5mm and a sensing distance ranging from 30mm to 1.5m. This short-range measuring light curtain array edge/profile sensor (receiver alone) is rectangular in shape and comes pre-equipped with an 8-pin Euro-style M12 connector for easy installation. It requires a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and utilizes the Modbus RTU RS-485 communication protocol. The sensor features 120 beams with a 5mm beam spacing/pitch, facilitating precise detection and measurement.
Related documents EA5R600PUXMODSRQ Specs
