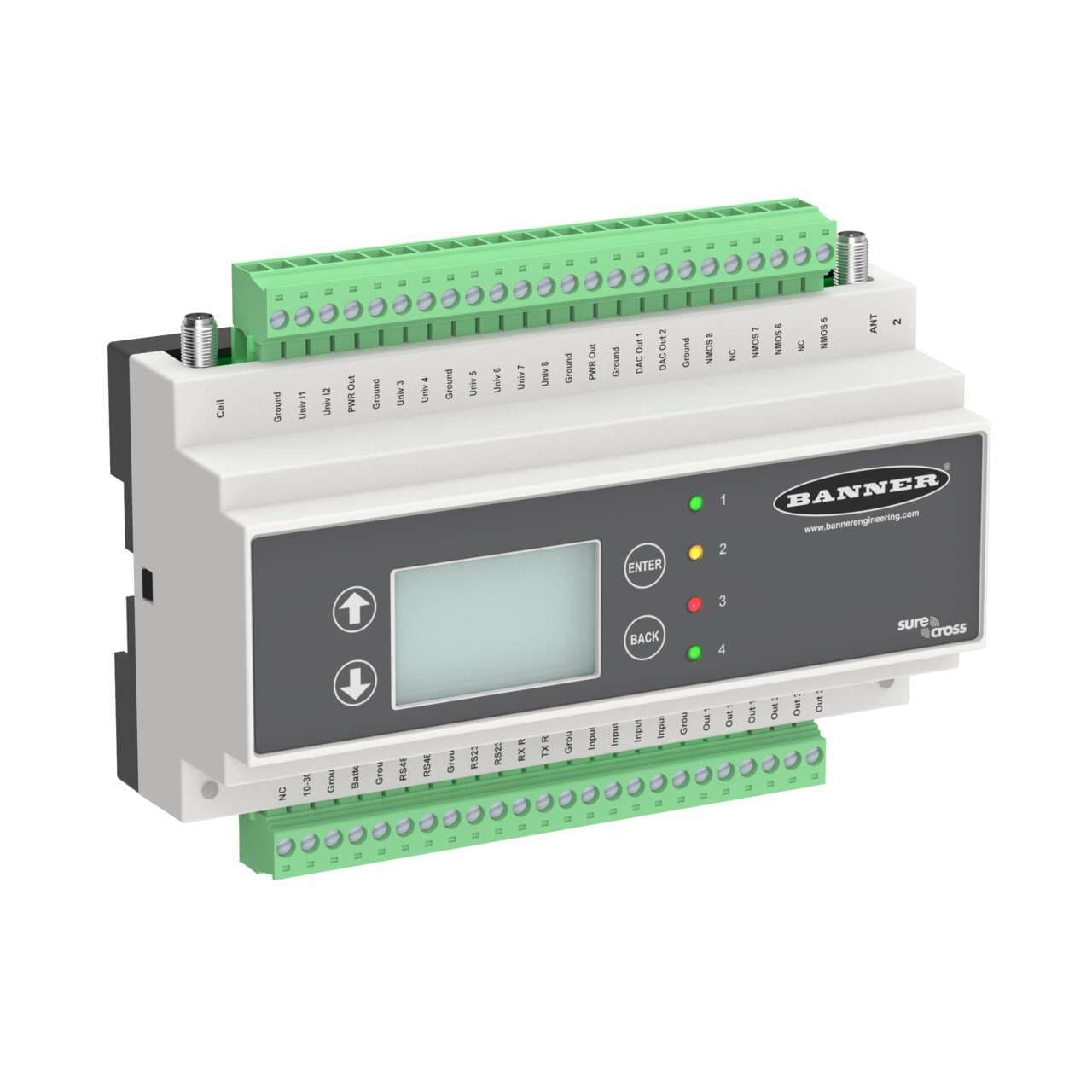

DXM1500-B2R2 Banner I/O Modules

Banner Engineering DXM1500-B2R2 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP67. This controller features dimensions of H93.9mm x W156mm x D94.6mm. It is equipped with 2 analog outputs (0-20mA / 0-10Vdc), 8 digital outputs (12Vdc-30Vdc; PNP/NPN; 100mA), and digital inputs including 2 isolated inputs (12-30Vdc) and 8 inputs (12Vdc-30Vdc; Sink/Source/Counter) which can also function as 8 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM1500-B2R2 operates with a 300MHz processing speed suitable for high I/O count applications and includes an RJ45 connector (Ethernet) and RP-SMA connector for connectivity. It requires a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.) and supports communication protocols such as RS-485, RS-232, Modbus RTU, Modbus TCP, Ethernet/IP, and PROFINET. The controller has a memory capacity of 16MB (on-board) and supports an 8GB SD card. It utilizes a 900MHz ISM band 1W radio (HE5 MultiHop data radio; North America) capable of transmitting data up to a maximum distance of 9.6km at nominal emission power.
