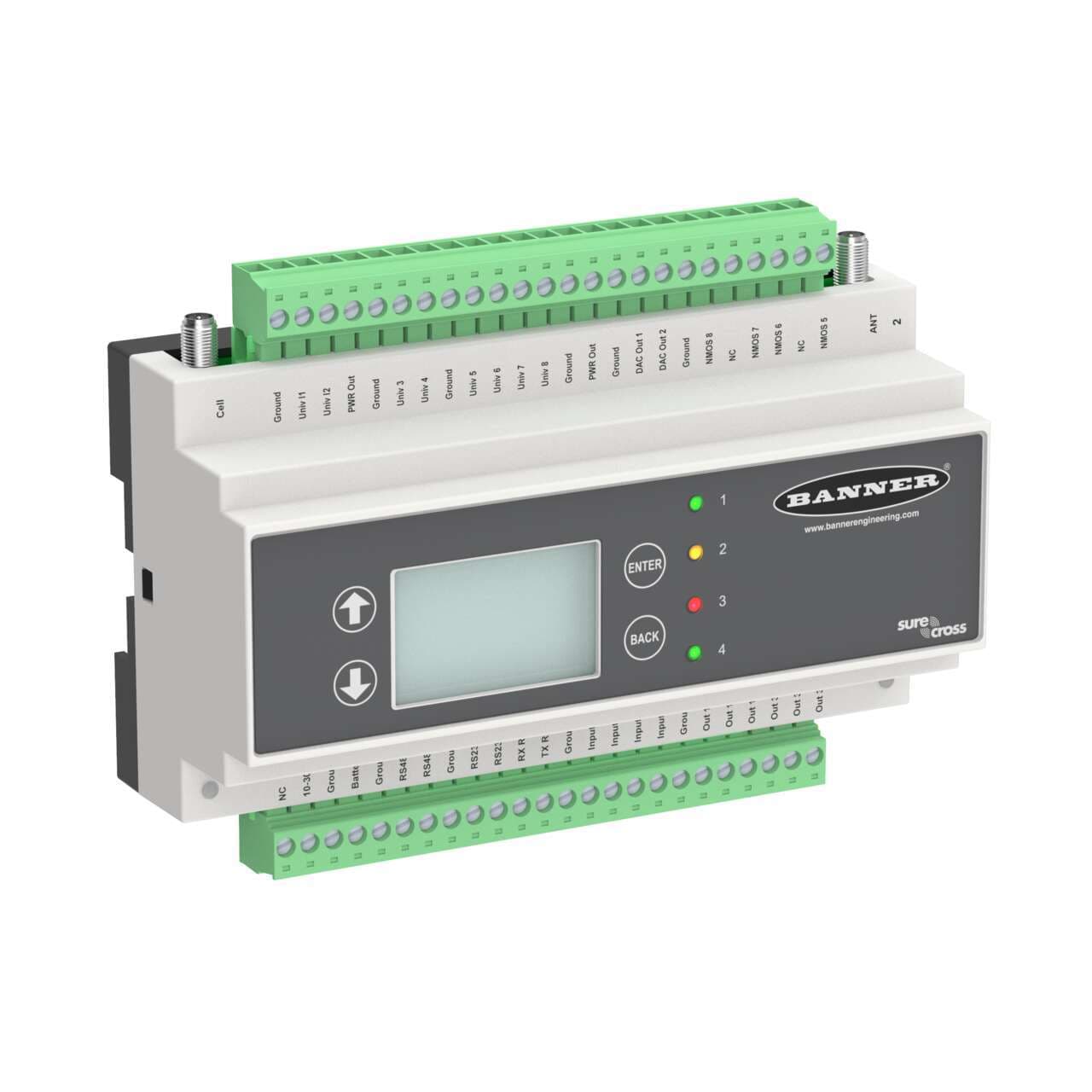

DXM1500-B1R2 Banner I/O Modules

DXM1500-B1R2 on Powermatic Associates
Banner
  • DXM1500-B1R2
  • DXM1500-B1R2

Part#:DXM1500-B1R2

Alt. Part#:807406

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DXM1500 Controller; Multihop Radio 900 MHz 1 W; Inputs: 2 Discrete, 8 Universal; Outputs: 2 Relay, 4 Discrete, 2 Analog; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller

Product Details

  • Weight
    662.24432 g
  • Country Of Origin
    US
  • Wireless Radio Frequency
    900 MHz
  • 1-wire Serial Interface
    No
  • RS-485
    Yes
  • Wireless
    Yes
  • Modbus/TCP
    Yes
  • RS-232
    Yes
  • PROFINET
    Yes
  • Modbus RTU
    Yes
  • EtherNet/IP
    Yes
  • Application: Temperature Input
    Yes
  • Application: Indicator Light
    Yes
  • Feature: Hazardous Area
    No
  • Dimension Length (mm)
    150
  • On-Board Memory (MB)
    16
  • Processing Speed (MHz)
    300
  • Star Topology
    No
  • Tree Topology
    Yes
  • Relative Humidity
    95%
  • Min Temp Operating Conditions
    -20
  • Point-to-Multipoint Topology
    Yes
  • Point-to-Point Topology
    Yes
  • Max Temp Operating Conditions
    60
  • LCD Display
    Yes
  • Environmental Rating (IP)
    IP20
  • Power Supply
    12-30 V dc
  • Discrete Inputs
    Yes
  • Discrete Outputs
    Yes
  • Output Details
    2 Relay, 4 NMOS, 2 Analog
  • Analog Inputs
    Yes
  • Input Details
    2 Isolated discrete and 8 Universal
  • Analog Outputs
    Yes
  • Input/Output
    Analog & Discrete
  • Device Type
    Wireless Controller with MultiHop Radio
  • Housing Style
    External Terminals
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM1500-B1R2 on Powermatic Associates is $1,199.00. Order now.

About the product

Banner Engineering DXM1500-B1R2 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP67. This controller features dimensions of H93.9mm x W156mm x D94.6mm. It is equipped with 2 analog outputs (0-20mA / 0-10Vdc), 2 digital outputs (SPDT / Form-C / NO/NC contact type; 16A / 250Vac), and 4 digital outputs (12Vdc-30Vdc; NMOS; 1A). Additionally, it has 2 digital inputs (12-30Vdc isolated inputs) and 8 digital inputs (12Vdc-30Vdc; Sink/Source/Counter) which can also function as 8AI (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM1500-B1R2 operates with a 300MHz processing speed, suitable for applications requiring a high I/O count, and features isolated inputs and a built-in relay. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. It requires a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.) and supports multiple communication protocols such as RS-485, RS-232, Modbus RTU, Modbus TCP, Ethernet/IP, and PROFINET. The controller has a memory capacity of 16MB (on-board) and supports an SD card up to 8GB. It utilizes a 900MHz ISM band 1W radio (HE5 MultiHop data radio; North America) for transmission, capable of reaching a maximum distance of 9.6km at nominal emission power.

DXM1500-B1R2 Related Documents

210854.pdf
