DXM1500-B1R1 Banner I/O Modules

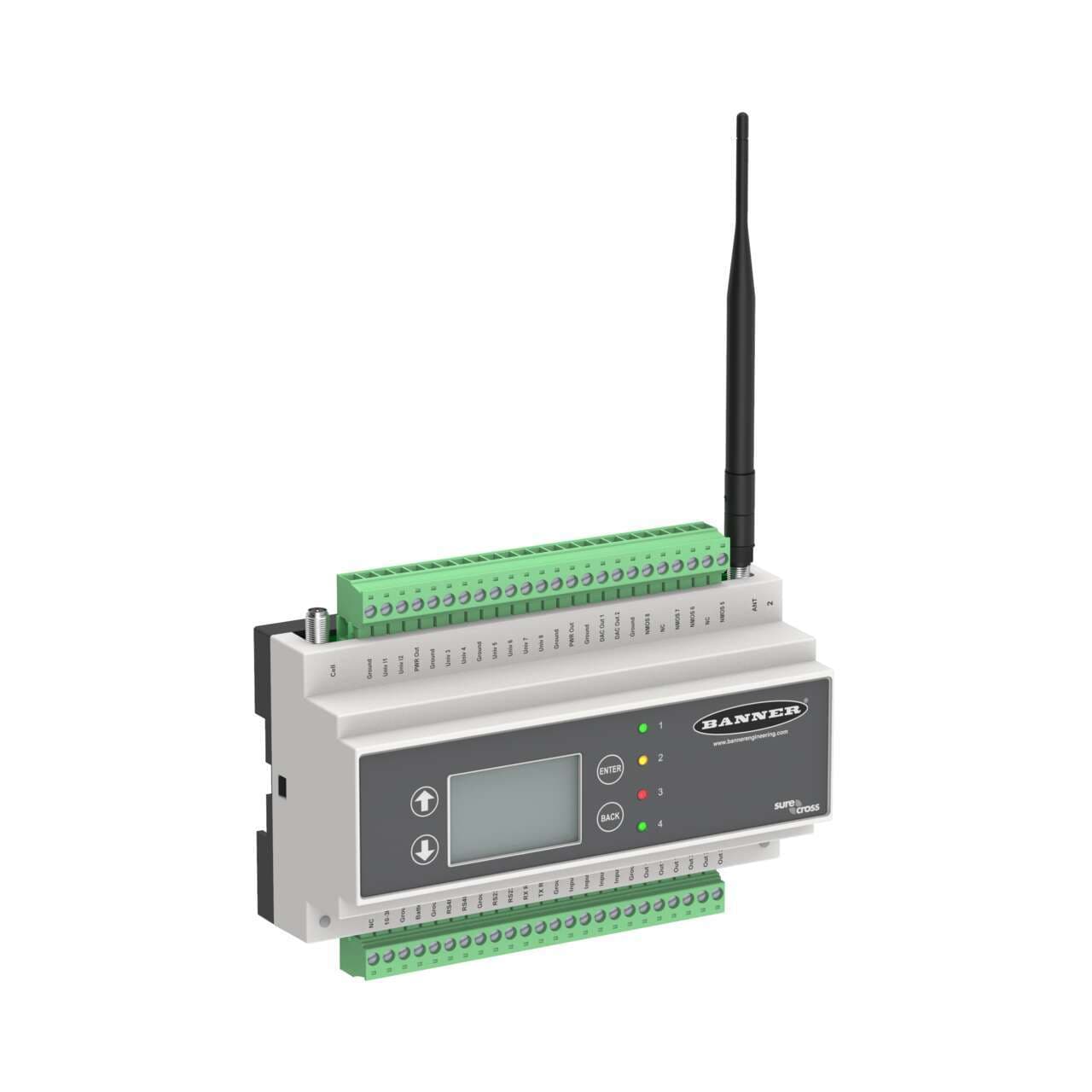

Banner Engineering DXM1500-B1R1 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP67. This controller features dimensions of H93.9mm x W156mm x D94.6mm. It is equipped with 2 analog outputs (0-20mA / 0-10Vdc), 2 digital outputs (SPDT / Form-C / NO/NC contact type; 16A / 250Vac), and 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), alongside 2 digital inputs (12-30Vdc isolated inputs) and 8 digital inputs (12Vdc-30Vdc; Sink/Source/Counter) which can also function as 8AI (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM1500-B1 series controller boasts a 300MHz processing speed suitable for high I/O count applications, isolated inputs, and a built-in relay. Connection options include an RJ45 connector for Ethernet and an RP-SMA connector, with a supply voltage requirement of 12-30Vdc (12Vdc-24Vdc nom.). It supports RS-485, RS-232, Modbus RTU, Modbus TCP, Ethernet/IP, and PROFINET communication protocols. The controller has a memory capacity of 16MB (on-board) and 8GB (SD card), operates on a 900MHz ISM band 1W radio (PE5 performance radio; North America), and can achieve a maximum transmission distance of 9.6km at nominal emission power.
