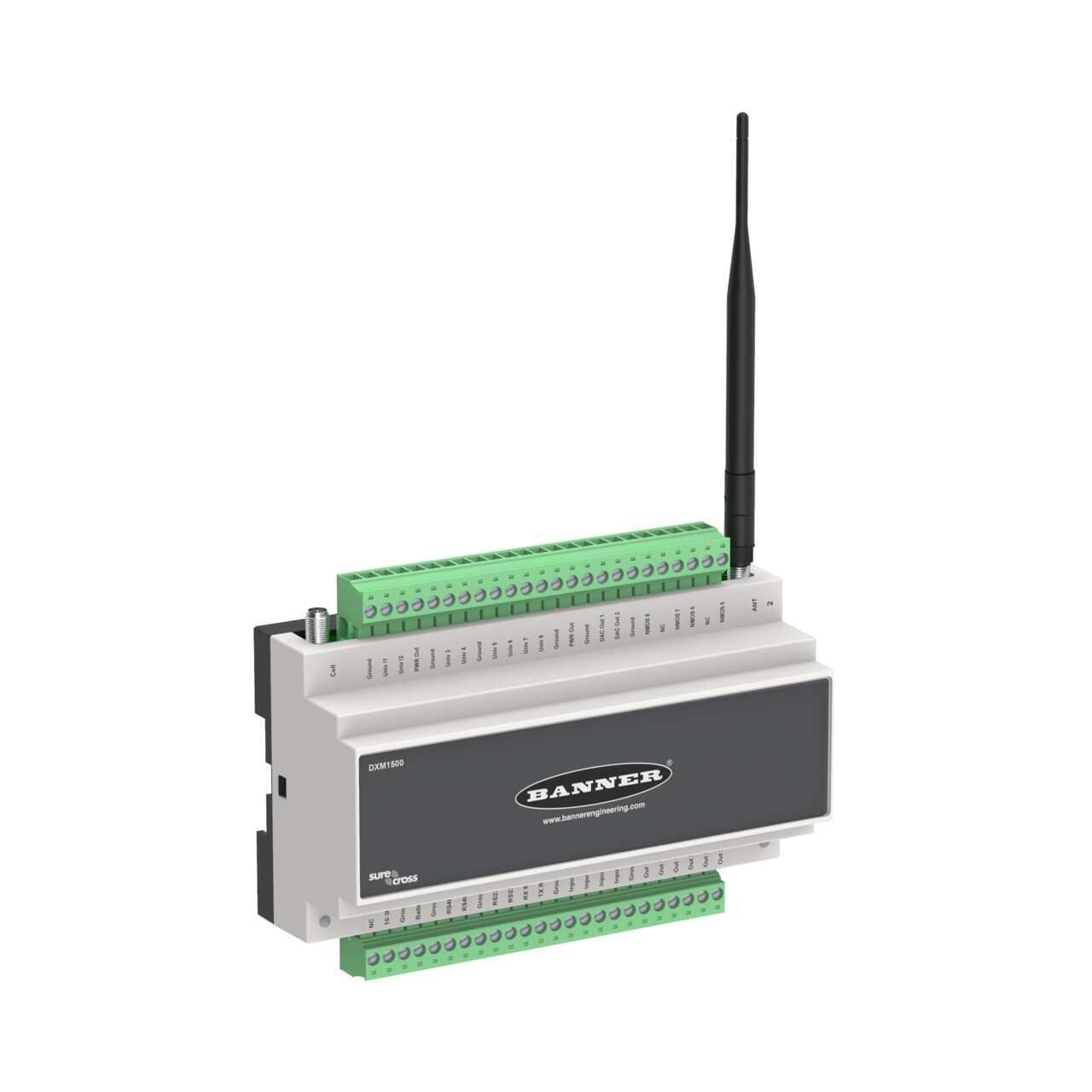

DXM150-S2R2 Banner I/O Modules

DXM150-S2R2 on Powermatic Associates
Banner
  • DXM150-S2R2
  • DXM150-S2R2

Part#:DXM150-S2R2

Alt. Part#:800845

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DXM150 Modbus Slave Device; Multihop Radio 900 MHz 1 W; Inputs: 2 Discrete, 8 Universal; Outputs: 8 Discrete, 2 Analog; RS485

Product Details

  • Weight
    566.99 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Wireless
    Yes
  • RS-485
    Yes
  • RS-232
    No
  • PROFINET
    No
  • Wireless Radio Frequency
    900 MHz
  • Modbus RTU
    Yes
  • EtherNet/IP
    No
  • Modbus/TCP
    No
  • Application: Object Counting
    Yes
  • Feature: Hazardous Area
    No
  • Tree Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Star Topology
    Yes
  • Point-to-Point Topology
    Yes
  • Relative Humidity
    95%
  • Environmental Rating (IP)
    IP20
  • Power Supply
    12-30 V dc
  • Output Details
    8 PNP/NPN, 2 Analog
  • Input Details
    2 Isolated Discrete, 8 Universal
  • Min Temp Operating Conditions
    -40
  • Max Temp Operating Conditions
    60
  • Analog Inputs
    Yes
  • Discrete Inputs
    Yes
  • Discrete Outputs
    Yes
  • Analog Outputs
    Yes
  • Input/Output
    Analog & Discrete
  • Device Type
    Modbus Slave Device
  • Housing Style
    External Terminals
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM150-S2R2 on Powermatic Associates is $699.00. Order now.

About the product

Banner Engineering DXM150-S2R2 is a remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller is equipped with 2 analog outputs (0-10Vdc), 2 digital outputs (SPDT / Form-C / NO/NC contact type; 16A / 250Vac), and 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), alongside 2 digital inputs (12-30Vdc isolated inputs) and 8 digital inputs (12Vdc-30Vdc; Sink/Source/Counter) which can also function as 8AI (4-20mA / 0-10Vdc / 10kΩ thermistor). It supports Modbus I/O peripheral functionality within the DXM150-S2 series. Connection is facilitated via an RP-SMA connector, and it requires a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.). Communication is enabled through RS-485 Modbus RTU, with a memory capacity of 2MB (on-board memory) and an expandable 8GB via SD card. The device operates on a 900MHz ISM band 1W radio (HE5 MultiHop data radio; North America), capable of a maximum 9.6km transmission distance at nominal emission power. Dimensions are H93.9mm x W156mm x D94.6mm.
