DXM150-B2R3 Banner I/O Modules

Name: DXM150-B2R3
Brand: Banner
Price: 1199 USD
Availability: BackOrder

Part#:DXM150-B2R3

Manufacturer:Banner

Alt. Part#:803761

Product Lifecycle:Active

Get a quick Quote!

DXM150 Controller; DX80 Performance Gateway 2.4 GHz 65 mW; Inputs: 2 Discrete, 8 Universal; Outputs: 8 Discrete, 2 Analog; SAM4 Processor, LCD Display; RS485, Ethernet, USB, Solar/Battery Controller

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DXM150-B2R3 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
521.6308 g
Country Of Origin
US
1-wire Serial Interface
No
Wireless Radio Frequency
2.4 GHz
Wireless
Yes
PROFINET
No
RS-232
Yes
RS-485
Yes
Modbus RTU
Yes
Modbus/TCP
Yes
EtherNet/IP
Yes
Application: Temperature Input
Yes
Application: Indicator Light
Yes
On-Board Memory (MB)
2
Feature: Hazardous Area
No
Application: Object Counting
Yes
Processing Speed (MHz)
100
Point-to-Point Topology
Yes
Dimension Length (mm)
150
Tree Topology
No

Star Topology

Yes

Point-to-Multipoint Topology

Yes

LCD Display

Yes

Input Details

2 Isolated discrete and 8 Universal

Max Temp Operating Conditions

Relative Humidity

95%

Min Temp Operating Conditions

-20

Discrete Outputs

Yes

Output Details

8 PNP/NPN Selectable, 2 Analog

Input/Output

Analog & Discrete

Power Supply

12-30 V dc

Environmental Rating (IP)

IP20

Analog Outputs

Yes

Housing Style

External Terminals

Power

Discrete Inputs

Yes

Analog Inputs

Yes

Device Type

Wireless Controller with Performance Gateway

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DXM150-B2R3 Description

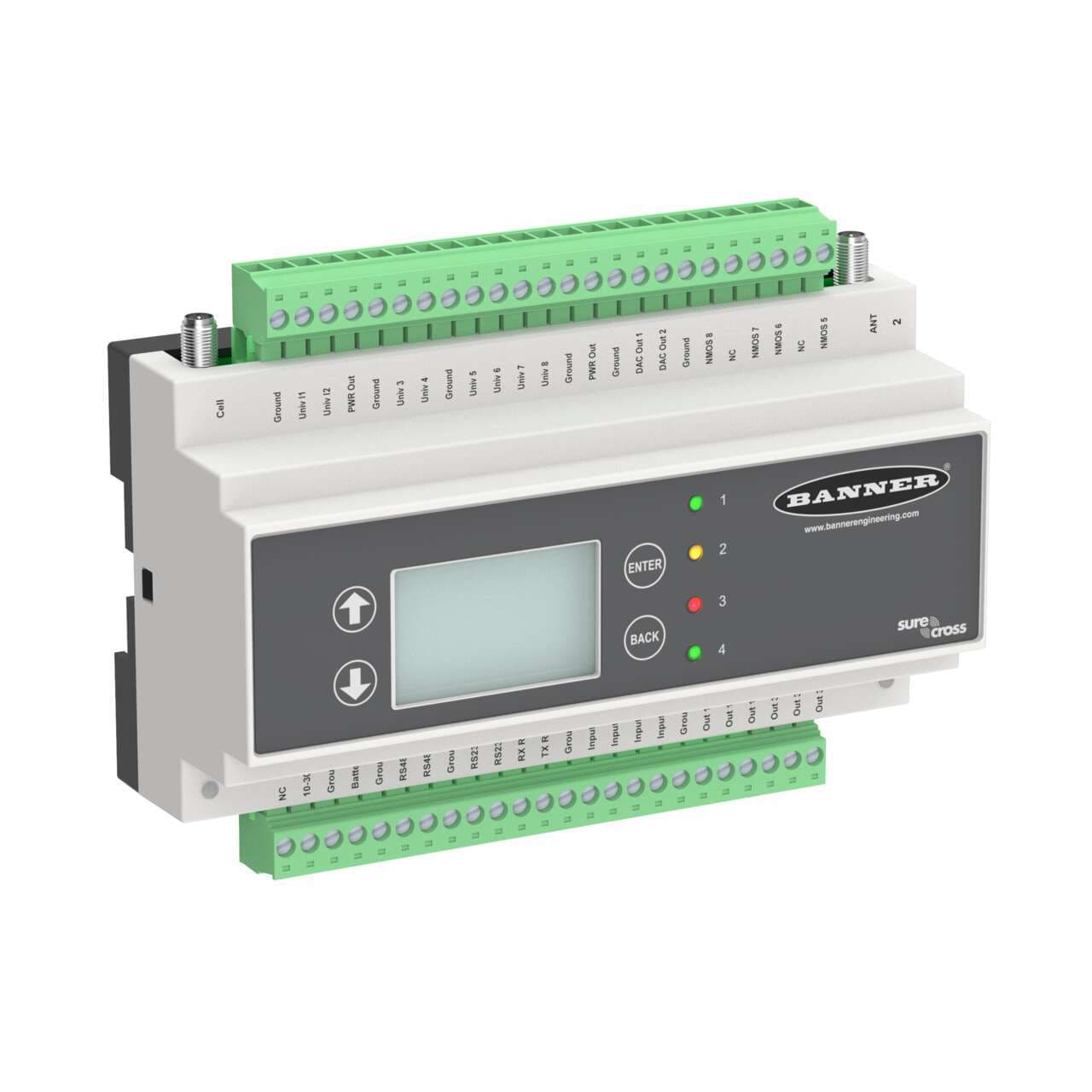

Banner Engineering DXM150-B2R3 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller features dimensions of H93.9mm x W156mm x D94.6mm. It is equipped with 2 analog outputs (0-20mA / 0-10Vdc), 8 digital outputs (12Vdc-30Vdc; PNP/NPN; 100mA), and 10 digital inputs, which include 2 isolated inputs (12-30Vdc) and 8 inputs (12Vdc-30Vdc; Sink/Source/Counter) that can also function as 8 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM150-B2 series controller utilizes a 100MHz processing speed suitable for high I/O count applications and incorporates FHSS (Frequency Hopping Spread Spectrum) technology with a SAM4 processor. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. It supports a supply voltage range of 12-30Vdc (12Vdc-24Vdc nom.) and communicates via RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP protocols. The controller has a memory capacity of 2MB (on-board) and supports an 8GB SD card. It operates on a 2.4GHz ISM band frequency with a 65mW radio (PE5 performance radio; worldwide), capable of a maximum transmission distance of 3.2km at nominal emission power.
