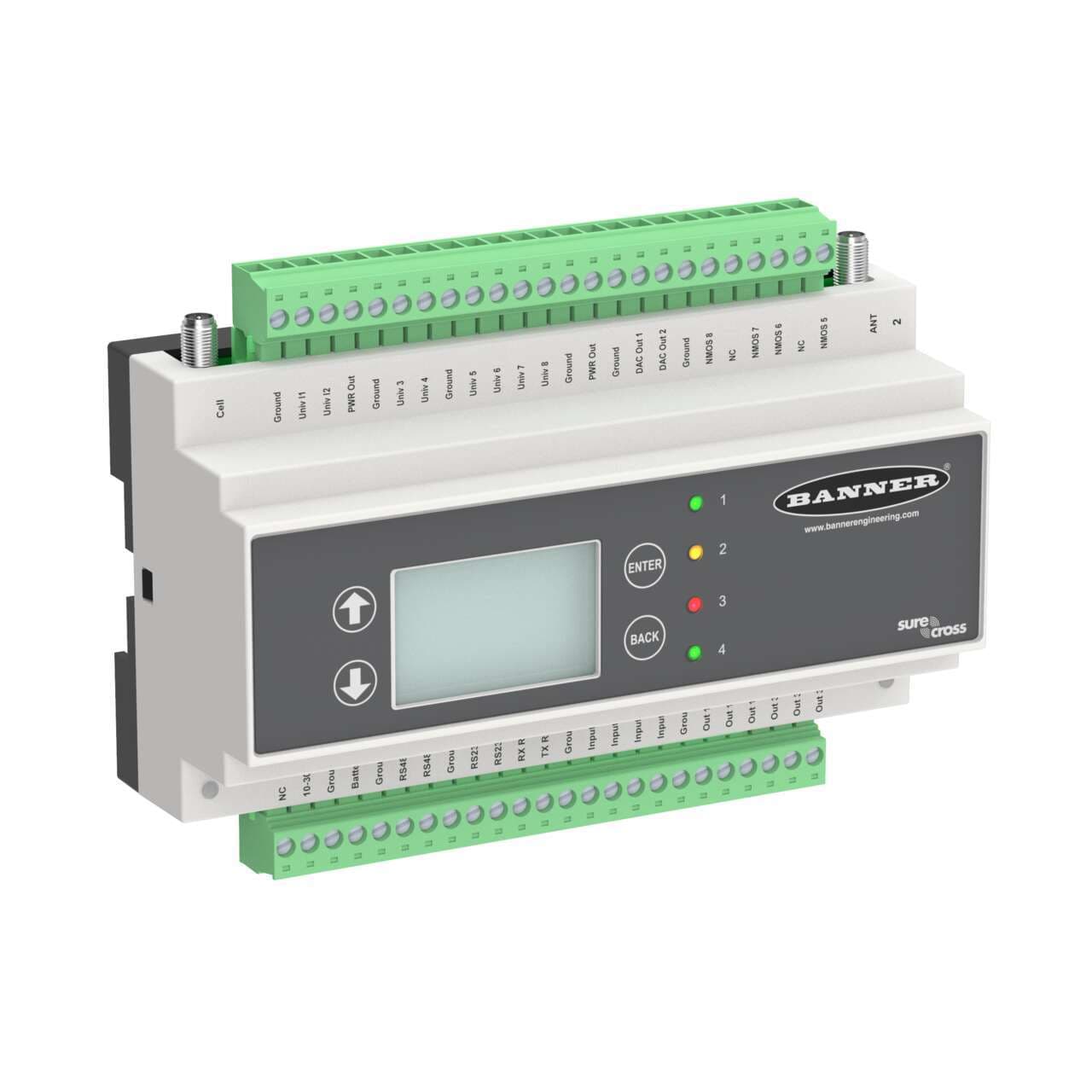

DXM150-B2R1 Banner I/O Modules

Name: DXM150-B2R1
Brand: Banner
Price: 1220 USD
Availability: BackOrder

Part#:DXM150-B2R1

Manufacturer:Banner

Category:I/O Modules

Alt. Part#:800840

Product Lifecycle:Active

Get a quick Quote!

DXM150 Controller; DX80 Performance Gateway 900 MHz 1 W; Inputs: 2 Discrete, 8 Universal; Outputs: 8 Discrete, 2 Analog; SAM4 Processor, LCD Display; RS485, Ethernet, USB, Solar/Battery Controller

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DXM150-B2R1 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
662.24432 g
Country Of Origin
US
Wireless
Yes
RS-485
Yes
Application: Temperature Input
Yes
PROFINET
No
Wireless Radio Frequency
900 MHz
RS-232
Yes
1-wire Serial Interface
No
Modbus/TCP
Yes
Application: Object Counting
Yes
Feature: Hazardous Area
No
Dimension Length (mm)
150
On-Board Memory (MB)
2
Processing Speed (MHz)
100
Modbus RTU
Yes
EtherNet/IP
Yes
Application: Indicator Light
Yes
Tree Topology
No
Point-to-Point Topology
Yes

Relative Humidity

95%

Point-to-Multipoint Topology

Yes

Min Temp Operating Conditions

-20

Star Topology

Yes

LCD Display

Yes

Max Temp Operating Conditions

Environmental Rating (IP)

IP20

Power Supply

12-30 V dc

Output Details

8 PNP/NPN Selectable, 2 Analog

Input Details

2 Isolated discrete and 8 Universal

Housing Style

External Terminals

Analog Inputs

Yes

Discrete Outputs

Yes

Discrete Inputs

Yes

Analog Outputs

Yes

Input/Output

Analog & Discrete

Device Type

Wireless Controller with Performance Gateway

Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DXM150-B2R1 Description

Banner Engineering DXM150-B2R1 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller features dimensions of H93.9mm x W156mm x D94.6mm. It is equipped with 2 analog outputs (0-20mA / 0-10Vdc), 8 digital outputs (12Vdc-30Vdc; PNP/NPN; 100mA), and digital inputs including 2 x 12-30Vdc isolated inputs and 8 x 12Vdc-30Vdc (Sink/Source/Counter) inputs, which can also function as 8 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM150-B2R1 operates on a 900 MHz transmission frequency with a maximum transmission distance of 9.6km. It incorporates a 100MHz processing speed suitable for high I/O count applications, utilizes FHSS (Frequency Hopping Spread Spectrum) technology, and is powered by a SAM4 processor. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. The supply voltage requirement is 12-30Vdc (12Vdc-24Vdc nom.). Communication protocols supported are RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP. Memory capacity includes 2MB of on-board memory and an 8GB SD card. This device is part of the DXM150-B2 series and is designed for Modbus I/O controller functions.

$1,220.00

Request a quote, and we will send availability within minutes.

Select Qty:

$1,220.00

$1,220.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
