DXM150-B2 Banner I/O Modules

DXM150-B2 on Powermatic Associates
Banner
  • DXM150-B2
  • DXM150-B2

Part#:DXM150-B2

Alt. Part#:805984

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DXM150 Controller; I/O Base Board Only; Inputs: 2 Discrete, 8 Universal; Outputs: 8 Discrete, 2 Analog; SAM4 Processor, LCD Display; RS485, Ethernet, USB, Solar/Battery Controller

Product Details

  • Weight
    589.6696 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • PROFINET
    No
  • Wireless
    No
  • RS-485
    Yes
  • RS-232
    Yes
  • Modbus RTU
    Yes
  • Feature: Hazardous Area
    No
  • Application: Indicator Light
    Yes
  • Modbus/TCP
    Yes
  • EtherNet/IP
    Yes
  • On-Board Memory (MB)
    2
  • Processing Speed (MHz)
    100
  • Min Temp Operating Conditions
    -20
  • LCD Display
    Yes
  • Relative Humidity
    95%
  • Environmental Rating (IP)
    IP20
  • Dimension Length (mm)
    150
  • Power Supply
    12-30 V dc
  • Max Temp Operating Conditions
    60
  • Output Details
    8 PNP/NPN Selectable, 2 Analog
  • Analog Inputs
    Yes
  • Discrete Outputs
    Yes
  • Discrete Inputs
    Yes
  • Input Details
    2 Isolated discrete and 8 Universal
  • Input/Output
    Analog & Discrete
  • Analog Outputs
    Yes
  • Housing Style
    External Terminals
  • Device Type
    Wireless Controller
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM150-B2 on Powermatic Associates is $999.00. Order now.

About the product

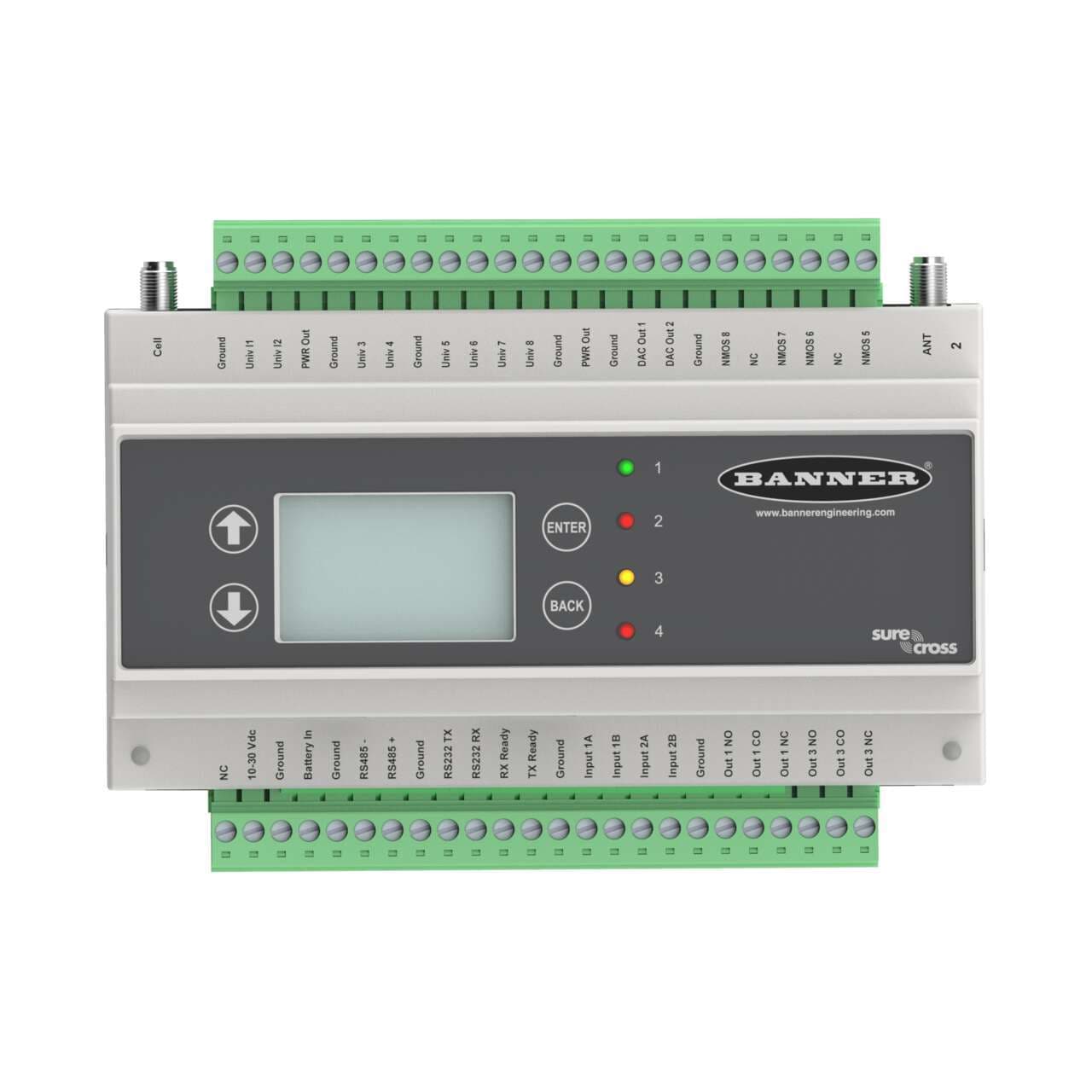

Banner Engineering DXM150-B2 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller features dimensions of H93.9mm x W156mm x D94.6mm. It is equipped with 2 analog outputs (0-20mA / 0-10Vdc), 8 digital outputs (12Vdc-30Vdc; PNP/NPN; 100mA), and 10 digital inputs, which include 2 isolated inputs (12-30Vdc) and 8 inputs (12Vdc-30Vdc; Sink/Source/Counter) that can also function as 8 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM150-B2 serves as a Modbus controller within the DXM150-B2 series, featuring an I/O base board only, a 100MHz processing speed suitable for high I/O count applications, FHSS (Frequency Hopping Spread Spectrum) technology, and a SAM4 processor. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. It requires a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.) and supports RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. Memory capacity is 2MB for on-board memory and 8GB for an SD card.

DXM150-B2 Related Documents

195952.pdf
