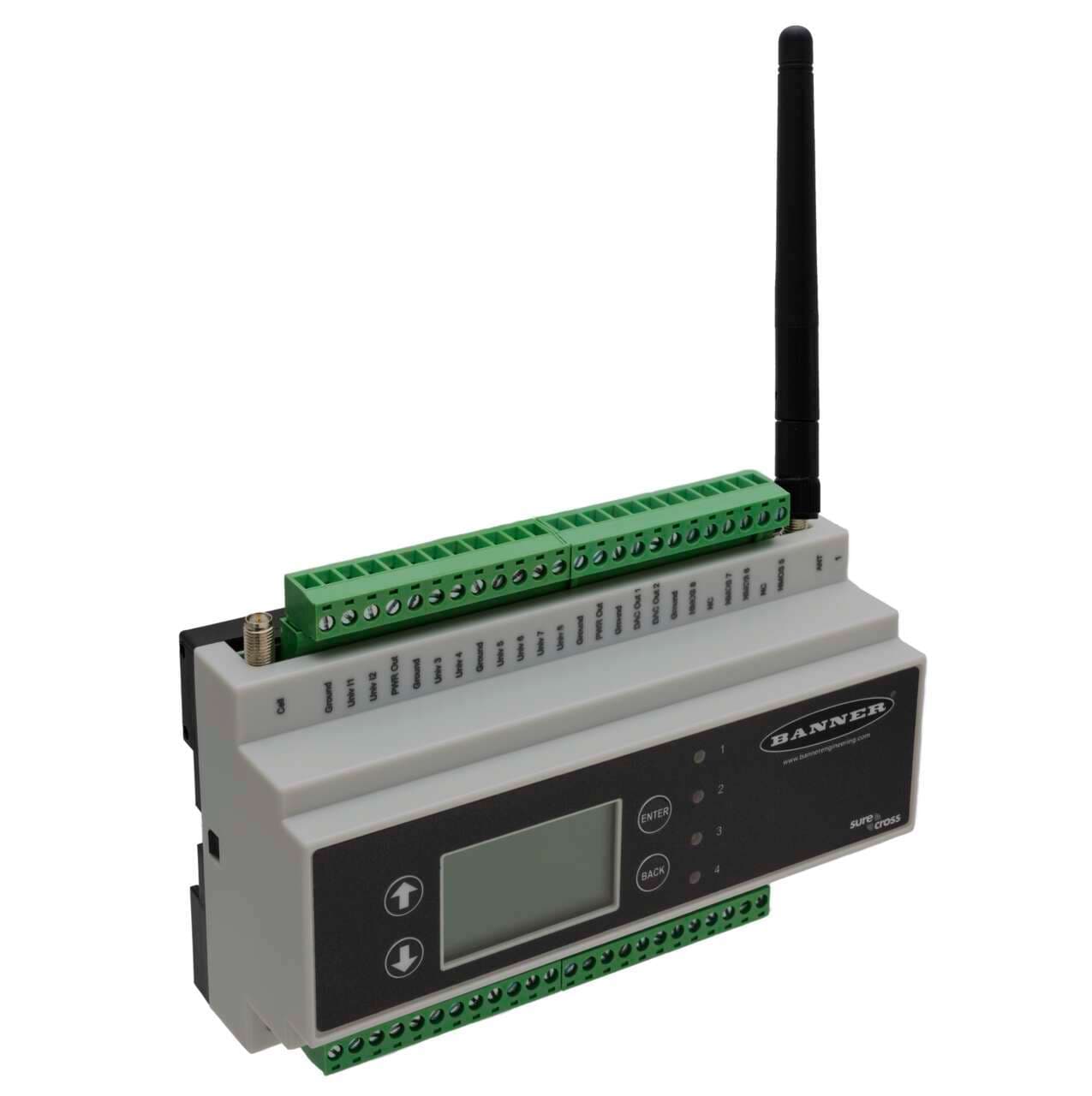

DXM150-B1R3 Banner I/O Modules

Banner Engineering DXM150-B1R3 is a remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. The controller dimensions are H93.9mm x W156mm x D94.6mm. It is equipped with 2 analog outputs (0-20mA / 0-10Vdc), 2 digital outputs (SPDT / Form-C / NO/NC contact type; 16A / 250Vac), and 4 digital outputs (12Vdc-30Vdc; NMOS; 1A). Additionally, it has 2 digital inputs (12-30Vdc isolated inputs) and 8 digital inputs (12Vdc-30Vdc; Sink/Source/Counter) which can also function as 8AI (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM150-B1R3, part of the DXM150-B1 series, incorporates a 100MHz processing speed suitable for high I/O count applications, isolated inputs, and a built-in relay. It utilizes Frequency Hopping Spread Spectrum (FHSS) technology with a SAM4 processor and CAN support. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. The supply voltage requirement is 12-30Vdc (12Vdc-24Vdc nom.). Communication protocols supported are RS-485, RS-232, Modbus RTU, Modbus TCP, and Ethernet/IP. Memory capacity includes 2MB of on-board memory and an 8GB SD card. Operating on a 2.4GHz ISM band with a 65mW radio (PE5 performance radio; worldwide), it achieves a maximum transmission distance of 3.2km at nominal emission power.
