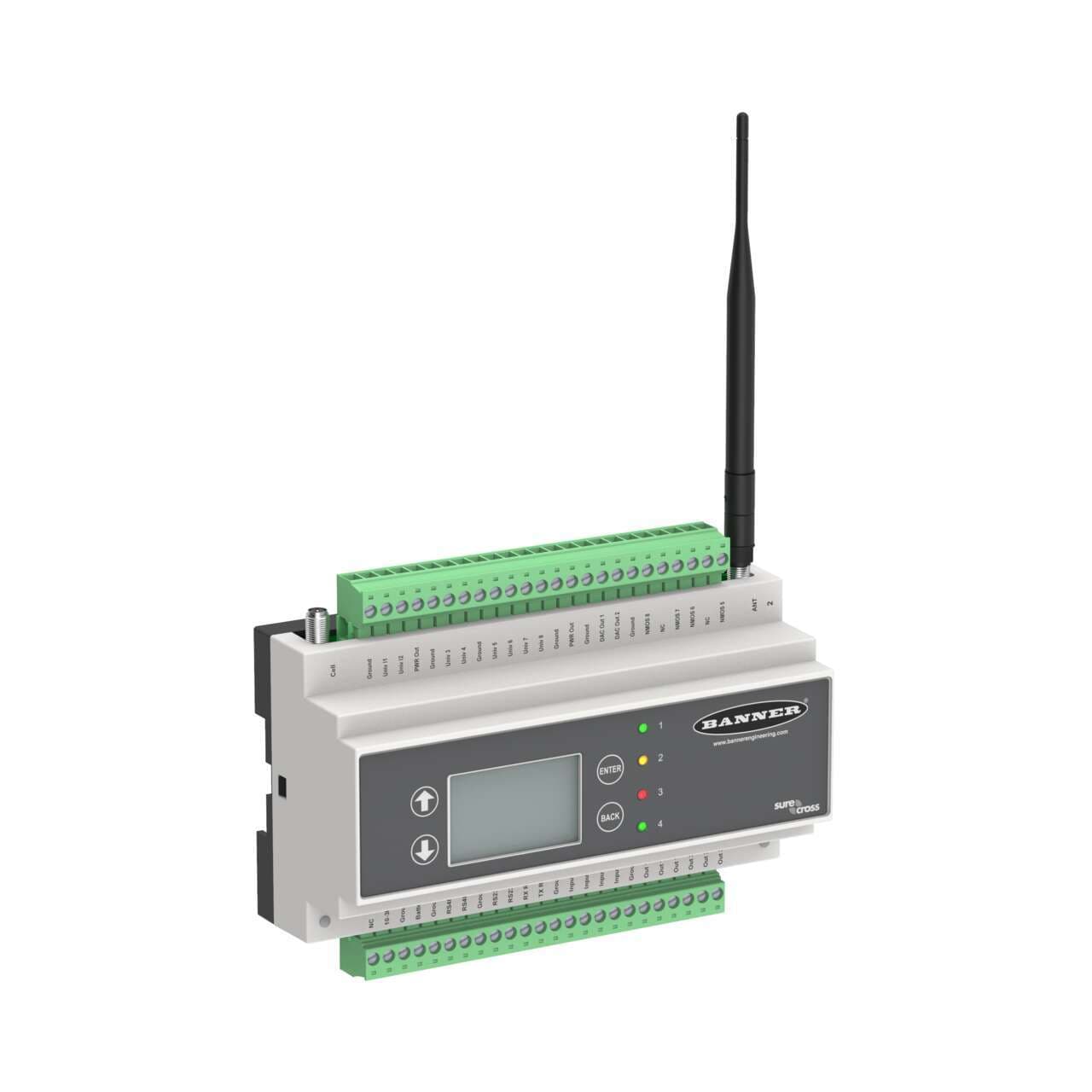

DXM150-B1R1 Banner I/O Modules

DXM150-B1R1 on Powermatic Associates
Banner

Part#:DXM150-B1R1

Manufacturer:Banner

Category:I/O Modules

Alt. Part#:91026

Product Lifecycle:Active

Get a quick Quote!

DXM150 Controller; DX80 Performance Gateway 900 MHz 1 W; Inputs: 2 Discrete, 8 Universal; Outputs: 2 Relay, 4 Discrete, 2 Analog; SAM4 Processor, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DXM150-B1R1 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    662.24432 g
  • Country Of Origin
    US
  • Wireless Radio Frequency
    900 MHz
  • Wireless
    Yes
  • RS-232
    Yes
  • RS-485
    Yes
  • Modbus/TCP
    Yes
  • PROFINET
    No
  • 1-wire Serial Interface
    No
  • Modbus RTU
    Yes
  • EtherNet/IP
    Yes
  • Application: Indicator Light
    Yes
  • Application: Temperature Input
    Yes
  • Feature: Hazardous Area
    No
  • Application: Object Counting
    Yes
  • Dimension Length (mm)
    150
  • On-Board Memory (MB)
    2
  • Processing Speed (MHz)
    100
  • Tree Topology
    No
  • Point-to-Point Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Relative Humidity
    95%
  • Min Temp Operating Conditions
    -20
  • Star Topology
    Yes
  • LCD Display
    Yes
  • Max Temp Operating Conditions
    60
  • Environmental Rating (IP)
    IP20
  • Power Supply
    12-30 V dc
  • Output Details
    2 Relay, 4 NMOS, 2 Analog
  • Housing Style
    External Terminals
  • Discrete Outputs
    Yes
  • Analog Inputs
    Yes
  • Analog Outputs
    Yes
  • Input/Output
    Analog & Discrete
  • Device Type
    Wireless Controller with Performance Gateway
  • Power
    DC
  • Input Details
    2 Isolated discrete and 8 Universal
  • Discrete Inputs
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


DXM150-B1R1 Description

Banner Engineering DXM150-B1R1 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller features 2 analog outputs (0-20mA / 0-10Vdc), 2 digital outputs (SPDT / Form-C / NO/NC contact type; 16A / 250Vac), and 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), alongside 2 digital inputs (12-30Vdc isolated inputs) and 8 digital inputs (12Vdc-30Vdc; Sink/Source/Counter) which can also function as 8AI (4-20mA / 0-10Vdc / 10kΩ thermistor). It utilizes a 100MHz processing speed suitable for high I/O count applications, features isolated inputs, a built-in relay, and employs FHSS (Frequency Hopping Spread Spectrum) technology with a SAM4 processor and CAN support. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector, with a supply voltage range of 12-30Vdc (12Vdc-24Vdc nom.). The DXM150-B1R1 supports RS-485, RS-232, Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols, has a memory capacity of 2MB (on-board) and 8GB (SD card), and operates on a 900MHz ISM band 1W radio (PE5 performance radio; North America) capable of a maximum 9.6km transmission distance at nominal emission power. Its dimensions are H93.9mm x W156mm x D94.6mm.
