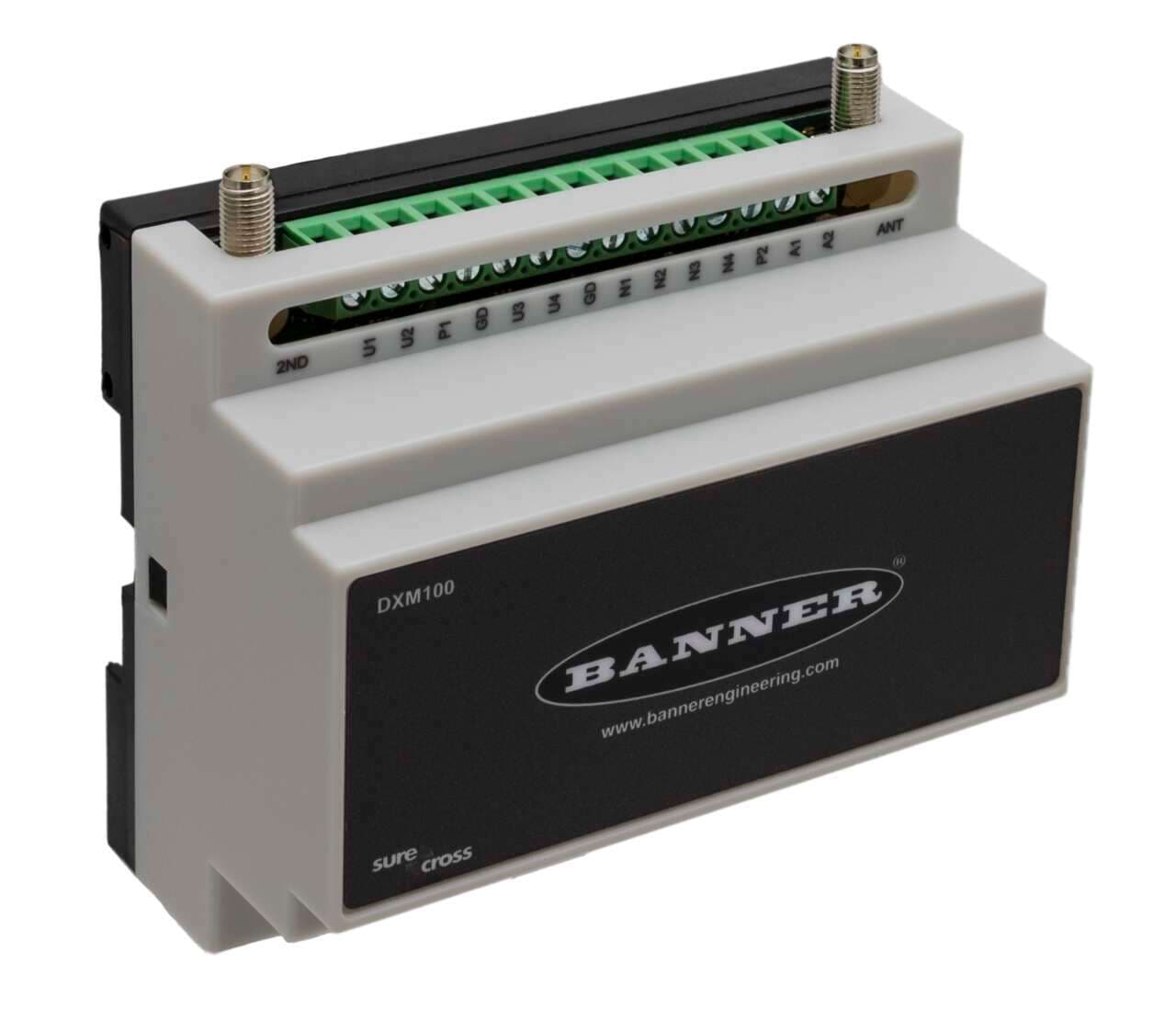

DXM100-S1 Banner I/O Modules

DXM100-S1 on Powermatic Associates
Banner

Part#:DXM100-S1

Alt. Part#:95655

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DXM100 Modbus Slave Device; I/O Base Board Only; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; RS485

Product Details

  • Weight
    299.37072 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Wireless Radio Frequency
    N/A
  • RS-232
    No
  • RS-485
    Yes
  • Wireless
    No
  • PROFINET
    No
  • Modbus/TCP
    No
  • Modbus RTU
    Yes
  • EtherNet/IP
    No
  • Feature: Hazardous Area
    No
  • Dimension Length (mm)
    100
  • On-Board Memory (MB)
    N/A
  • Processing Speed (MHz)
    N/A
  • Analog Outputs
    Yes
  • Analog Inputs
    Yes
  • Relative Humidity
    95%
  • Min Operating Temperature ( °C)
    -40
  • Max Operating Temperature ( °C)
    85
  • Input/Output
    Analog & Discrete
  • Discrete Inputs
    Yes
  • Max Temp Operating Conditions
    60
  • Min Temp Operating Conditions
    -20
  • Housing Style
    External Terminals
  • Discrete Outputs
    Yes
  • Environmental Rating (IP)
    IP20
  • Input Details
    4 Universal Inputs
  • Output Details
    4 NMOS Discrete, 2 Selectable Analog
  • Power Supply
    12-30 V dc
  • Power
    DC
  • Device Type
    Modbus Slave Device

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM100-S1 on Powermatic Associates is $399.00. Order now.

About the product

Banner Engineering DXM100-S1 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller features dimensions of H61.1mm x W105.3mm x D94.7mm. It is equipped with 2 analog outputs (4-20mA / 0-10Vdc), 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), and 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also be used as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM100-S1 supports wireless Modbus peripheral functionality, belongs to the DXM100-S1 series, and is designed as an I/O base board only. It utilizes an RP-SMA connector for connections, requires a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.), and communicates via RS-485 Modbus RTU. Additionally, it has a memory capacity of 8GB using an SD card.

DXM100-S1 Related Documents

195454.pdf
