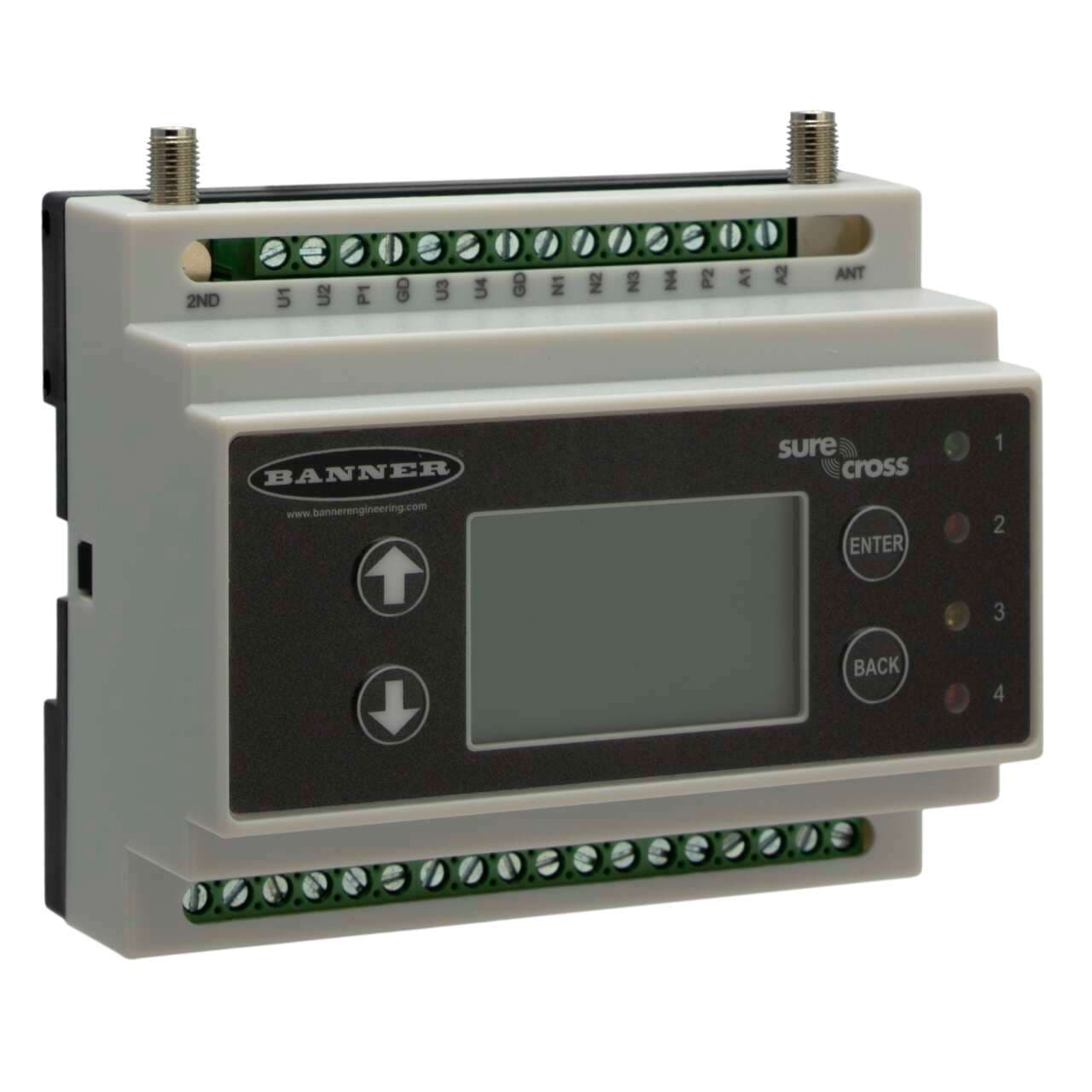

DXM100-B2R1 Banner I/O Modules

DXM100-B2R1 on Powermatic Associates
Banner

Part#:DXM100-B2R1

Manufacturer:Banner

Alt. Part#:802359

Product Lifecycle:Active

Get a quick Quote!

DXM100 Controller; DX80 Performance Gateway 900 MHz 1 W; Inputs: 4 Universal, SDI-12 Interface; Outputs: 4 NMOS Discrete, 2 Analog, 2 DC Latching, 2 Switched Power, 1 Courtesy Power; SAM4 processor, LCD Display; RS485, Ethernet, USB, Solar/Battery Controller

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DXM100-B2R1 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    503.48712 g
  • Country Of Origin
    US
  • Application: Soil Moisture Monitoring
    Yes
  • Wireless Radio Frequency
    900 MHz
  • PROFINET
    No
  • Modbus RTU
    Yes
  • Modbus/TCP
    Yes
  • 1-wire Serial Interface
    No
  • RS-485
    Yes
  • Wireless
    Yes
  • RS-232
    No
  • EtherNet/IP
    Yes
  • Application: Temperature Input
    Yes
  • Feature: Hazardous Area
    No
  • Application: Indicator Light
    Yes
  • Application: Object Counting
    Yes
  • Dimension Length (mm)
    100
  • On-Board Memory (MB)
    2
  • Processing Speed (MHz)
    100
  • Star Topology
    Yes
  • Tree Topology
    No
  • Point-to-Point Topology
    Yes
  • Relative Humidity
    95%
  • LCD Display
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Min Temp Operating Conditions
    -20
  • Max Temp Operating Conditions
    60
  • Valve Control
    Yes
  • Environmental Rating (IP)
    IP20
  • Output Details
    4 NMOS Discrete, 2 Analog, 2 DC Latching
  • Power Supply
    12-30 V dc
  • Power
    DC
  • Analog Outputs
    Yes
  • Analog Inputs
    Yes
  • Discrete Outputs
    Yes
  • Housing Style
    External Terminals
  • Device Type
    Wireless Controller with Performance Gateway
  • Input/Output
    Analog & Discrete
  • Input Details
    4 Universal Inputs, SDI-12 interface
  • Discrete Inputs
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DXM100-B2R1 Description

Banner Engineering DXM100-B2R1 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller features 2 analog outputs (0-10Vdc), 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), and 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also function as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). It has dimensions of H61.1mm x W105.3mm x D94.7mm. The DXM100-B2R1 utilizes a 900 MHz transmission frequency with a maximum transmission distance of 9.6km. It incorporates SDI-12 data collection, a 100MHz processing speed for smart valve control, and FHSS (Frequency Hopping Spread Spectrum) technology with a SAM4 processor. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. The supply voltage requirement is 12-30Vdc (12Vdc-24Vdc nom.). It supports RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. Memory capacity includes 2MB of on-board memory and an 8GB SD card. The frequency band is the 900MHz ISM with a 1W radio (PE5 performance radio; North America).

Related documents DXM100-B2R1 Specs

DXM100-B2R1 195232.pdf
