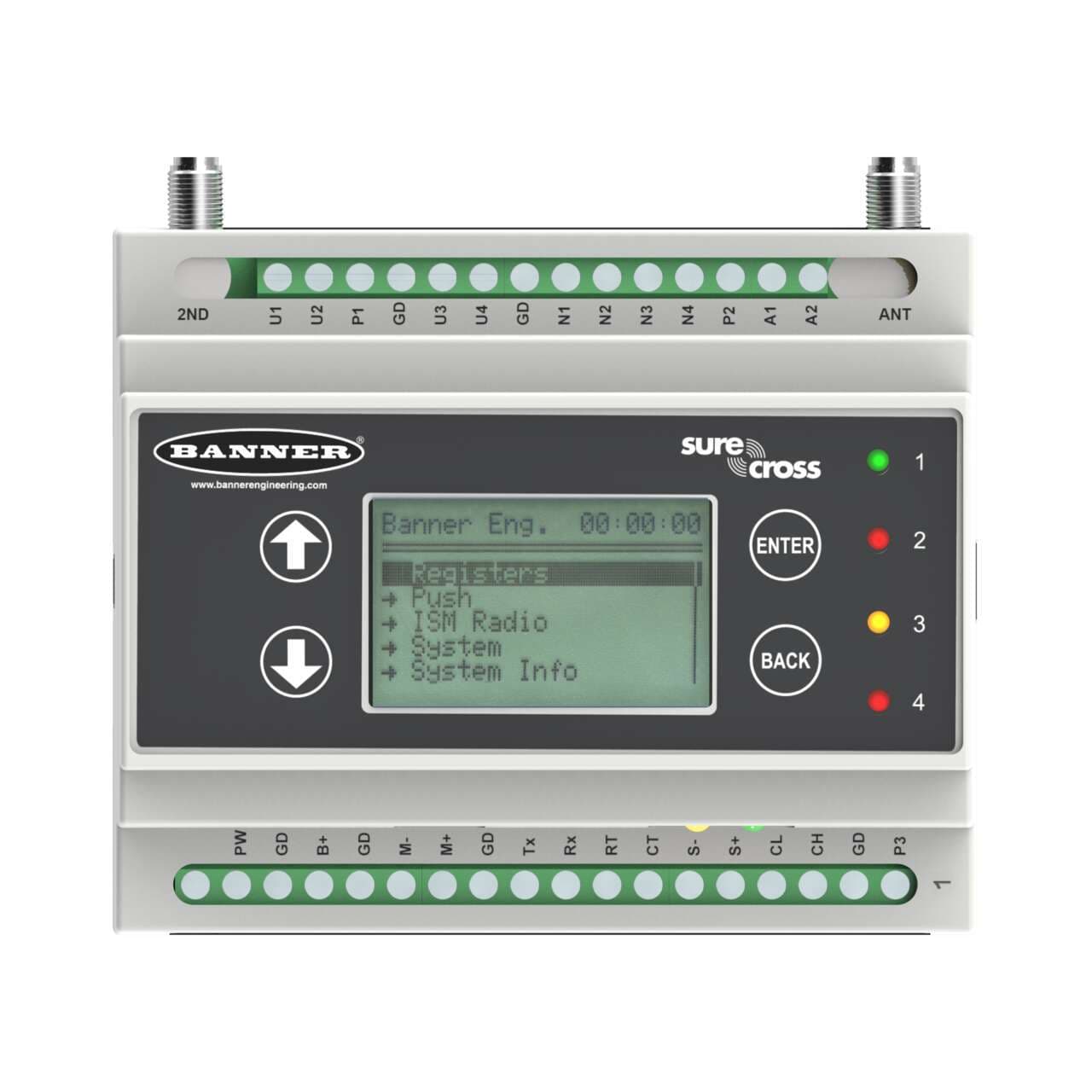

DXM100-B2 Banner I/O Modules

DXM100-B2 on Powermatic Associates
Banner
  • DXM100-B2
  • DXM100-B2

Part#:DXM100-B2

Alt. Part#:802378

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DXM100 Controller; I/O Base Board Only; Inputs: 4 Universal, SDI-12 Interface; Outputs: 4 NMOS Discrete, 2 Analog, 2 DC Latching, 2 Switched Power, 1 Courtesy Power; SAM4 processor, LCD Display; RS485, Ethernet, USB, Solar/Battery Controller

Product Details

  • Weight
    476.2716 g
  • Country Of Origin
    US
  • Wireless
    No
  • 1-wire Serial Interface
    No
  • Modbus/TCP
    Yes
  • EtherNet/IP
    Yes
  • Environmental Rating (IP)
    IP20
  • Feature: Hazardous Area
    No
  • Device Type
    Wireless Controller
  • Wireless Radio Frequency
    N/A
  • RS-485
    Yes
  • RS-232
    Yes
  • PROFINET
    No
  • Modbus RTU
    Yes
  • Application: Indicator Light
    Yes
  • Dimension Length (mm)
    100
  • On-Board Memory (MB)
    2
  • Discrete Outputs
    Yes
  • Output Details
    4 NMOS Discrete, 2 (0-10 V) Analog
  • Power Supply
    12-30 V dc
  • Input Details
    4 Universal Inputs
  • Processing Speed (MHz)
    100
  • Relative Humidity
    95%
  • Min Temp Operating Conditions
    -20
  • Max Temp Operating Conditions
    80
  • LCD Display
    Yes
  • Input/Output
    Analog & Discrete
  • Analog Outputs
    Yes
  • Discrete Inputs
    Yes
  • Housing Style
    External Terminals
  • Analog Inputs
    Yes
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM100-B2 on Powermatic Associates is $799.00. Order now.

About the product

Banner Engineering DXM100-B2 is a remote I/O controller designed for DIN rail mounting, featuring a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller is equipped with 2 analog outputs (0-10Vdc), 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), and 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also function as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). It serves as a Modbus controller within the DXM100-B2 series, featuring an SDI-12 data collection I/O base board with a 100MHz processing speed, powered by a SAM4 processor. The DXM100-B2 provides connectivity through an RJ45 connector (Ethernet) and an RP-SMA connector, supporting a supply voltage range of 12-30Vdc (12Vdc-24Vdc nom.). It utilizes RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. Memory capacity includes 2MB of on-board memory and an expandable 8GB via SD card. Dimensions are H61.1mm x W105.3mm x D94.7mm.
