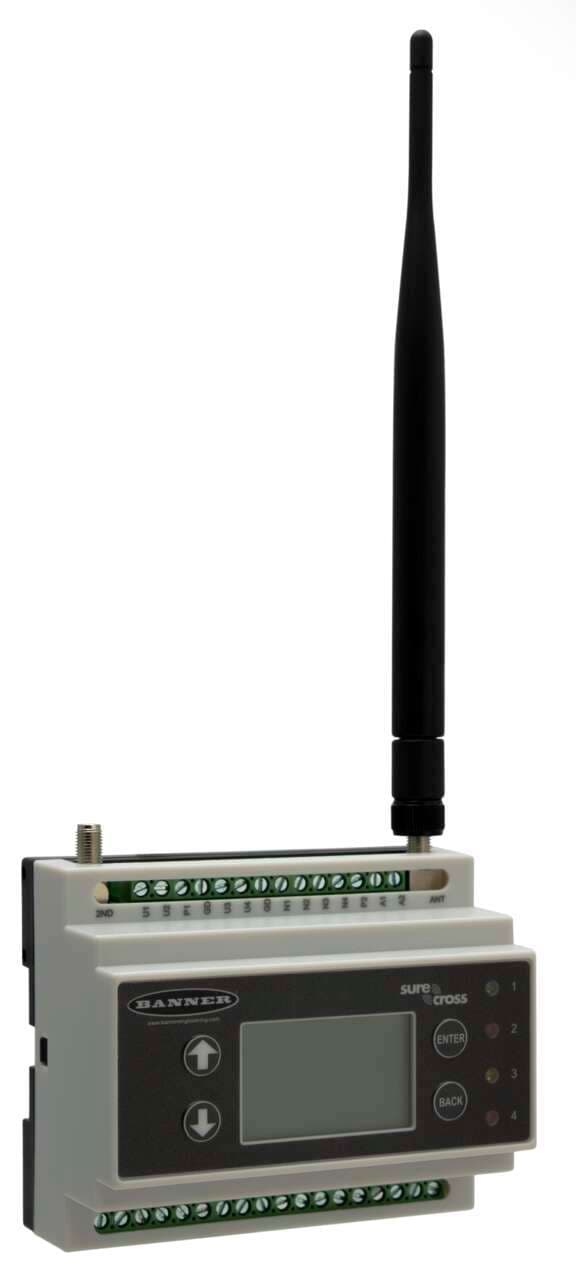

DXM100-B1R1 Banner I/O Modules
Part#:DXM100-B1R1
Manufacturer:Banner
Alt. Part#:95651
Product Lifecycle:Active
Get a quick Quote!
DXM100 Controller; DX80 Performance Gateway 900 MHz 1 W; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; SAM4 processor, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DXM100-B1R1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 498.9512 g
- Country Of Origin US
- EPLAN Cabinet Installable Yes
- 1-wire Serial Interface No
- Wireless Radio Frequency 900 MHz
- RS-485 Yes
- RS-232 Yes
- Wireless Yes
- EtherNet/IP Yes
- Application: Indicator Light Yes
- Modbus/TCP Yes
- Modbus RTU Yes
- PROFINET No
- Application: Object Counting Yes
- Feature: Hazardous Area No
- Application: Temperature Input Yes
- Tree Topology No
- On-Board Memory (MB) 2
- Dimension Length (mm) 100
- Star Topology Yes
- Point-to-Point Topology Yes
- Relative Humidity 95%
- Min Operating Temperature ( °C) -20
- Max Operating Temperature ( °C) 80
- Min Temp Operating Conditions -20
- Point-to-Multipoint Topology Yes
- Max Temp Operating Conditions 60
- Power Supply 12-30 V dc
- Output Details 4 NMOS Discrete, 2 Selectable Analog
- Environmental Rating (IP) IP20
- LCD Display Yes
- Input Details 4 Universal Inputs
- Discrete Inputs Yes
- Discrete Outputs Yes
- Device Type Wireless Controller with Performance Gateway
- Analog Outputs Yes
- Input/Output Analog & Discrete
- Analog Inputs Yes
- Housing Style External Terminals
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
DXM100-B1R1 Description
Banner Engineering DXM100-B1R1 is a remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers 2 analog outputs (4-20mA / 0-10Vdc), with a degree of protection rated at IP20. The dimensions of the DXM100-B1R1 are H61.1mm x W105.3mm x D94.7mm. It includes 4 digital outputs (12Vdc-30Vdc; NMOS; 1A) and 4 digital inputs (12-30Vdc; Sink/Source/Counter) that can also function as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). This Modbus I/O controller is part of the DXM100-B1 series and is designed with a 100MHz processing speed to support data aggregation of sensors and wireless networks using FHSS (Frequency Hopping Spread Spectrum) technology and a SAM4 processor CAN. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. It requires a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.) and supports communication protocols such as RS-485, RS-232, Modbus RTU, Modbus TCP, and Ethernet/IP. The memory capacity is 2MB for on-board memory and 8GB for an SD card. It operates on a 900MHz ISM band 1W radio (PE5 performance radio; North America) and can achieve a maximum transmission distance of 9.6km at nominal emission power.
Related documents DXM100-B1R1 Specs
Manufacturer warranty
$999.00
