DF-G3IR-PD-2M Banner Sensor Accessories

DF-G3IR-PD-2M on Powermatic Associates
Banner

Part#:DF-G3IR-PD-2M

Manufacturer:Banner

Category:Sensor Accessories

Alt. Part#:87656

Product Lifecycle:Active

Get a quick Quote!

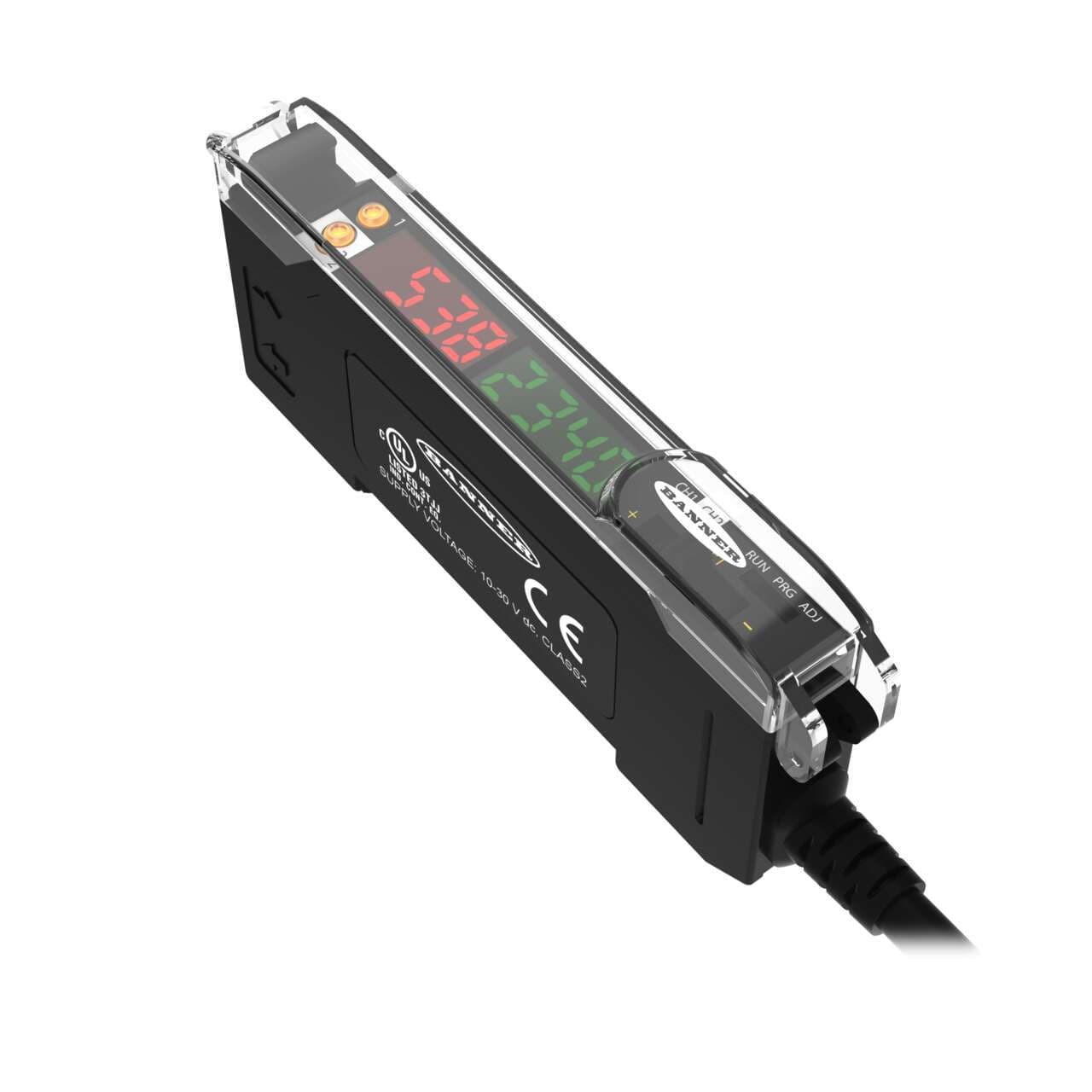

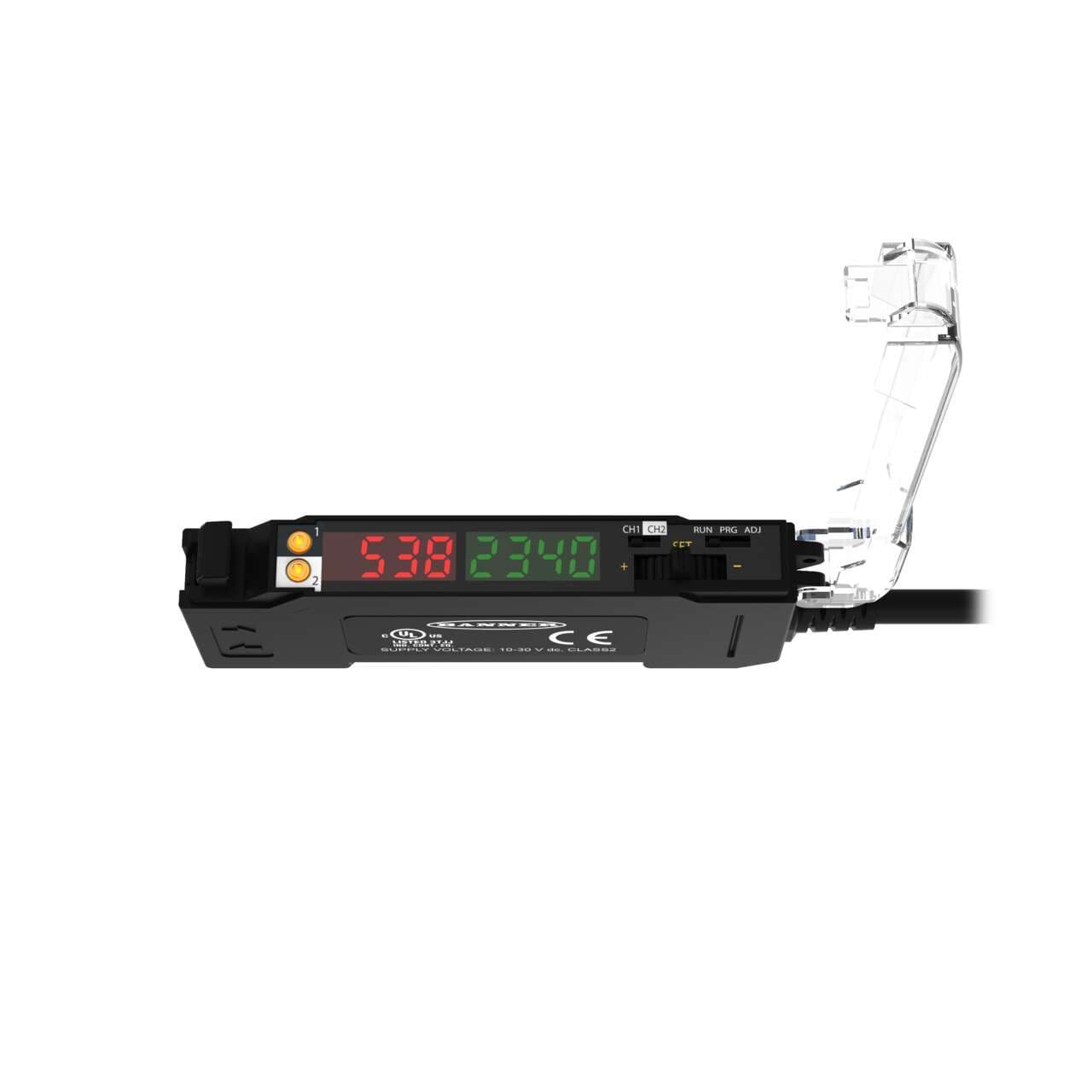

DF-G3 IR Beam High Power Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 2 PNP; 2 m 5-conductor PVC Cable

About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DF-G3IR-PD-2M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    CN
  • Feature: Audible
    No
  • Housing Material
    Thermoplastic
  • IO Link
    No
  • Feature: Health/ Marginal Signal Output
    Yes
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Special Feature: Bussable Power
    No
  • Minimum response time (ms)
    .5
  • Adjustments
    Teach Button
  • Delay at Power-up (ms)
    500
  • Indicator Display Type
    Dual Digital Displays
  • Power Supply/Supply Voltage
    10-30 V dc
  • Special Feature: Remote Teach
    Yes
  • Crosstalk Avoidance
    Yes
  • Intrinsically Safe
    No
  • Max Op. Temperature (°C)
    55
  • Min Op. Temperature (°C)
    -10
  • Max Op. Relative Humidity (%)
    90% @ 60°C
  • NEMA Rating
    NEMA 1
  • IP Rating
    IP50
  • Number of Pins
    5
  • Repeatability (µs)
    100 to 180
  • Quick Disconnect Type
    No QD
  • Output Type (Specific)
    Dual Discrete
  • Connection
    Cable
  • Power
    DC
  • Output
    PNP
  • Input/Output
    Discrete
  • Color LED - Amplifiers
    Infrared
  • Cable Length (m)
    2
  • Fiber Type
    Glass Only
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    DIN Rail
  • Primary brand
    Banner Engineering
  • Shape
    Rectangular
  • Degree of protection
    IP50 NEMA 1
  • Product series / family name
    Fiber optic amplifiers
  • Functions
    Long-range fiber optic sensor amplifier yellow LED (output status) red LED (signal)
  • Wavelength
    850 nm
  • Digital outputs
    2 x digital outputs (PNP transistors)
  • Equivalent to
    DFG3IRPD2M
  • Sub-range name
    DF-G3 Expert series
  • Mounting mode
    DIN rail mounting
  • Order code / Manufacturer SKU
    87656
  • Main function
    Amplifier for sensor
  • Display
    LED 4 digits x 2 (red + green)
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Ambient air temperature for operation
    -10...+55 °C
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Light Color
    Infrared (IR)
  • Material
    thermoplastic housing Glass fiber
  • Compliant with standard(s)
    cULus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


DF-G3IR-PD-2M Description

Banner Engineering DF-G3IR-PD-2M is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing and glass fiber material. It operates within an ambient air temperature range of -10 to +55°C and offers a degree of protection rated at IP50 NEMA 1. This part emits infrared light with a wavelength of 850 nm and features 2 digital outputs (PNP transistor; complementary NO/NC). Its rectangular shape and high-power design are part of the DF-G3 Expert series, specifically tailored for long-range fiber optic sensor amplification. The connection is facilitated through a pre-wired 6.5ft / 2m cable terminated with bare end flying leads, and it requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
