DF-G1-NS-2M Banner Sensor Accessories

DF-G1-NS-2M on Powermatic Associates
Banner
  • DF-G1-NS-2M
  • DF-G1-NS-2M

Part#:DF-G1-NS-2M

Alt. Part#:19350

Manufacturer:Banner

Category:Sensor Accessories

Product Lifecycle:Active

Product description

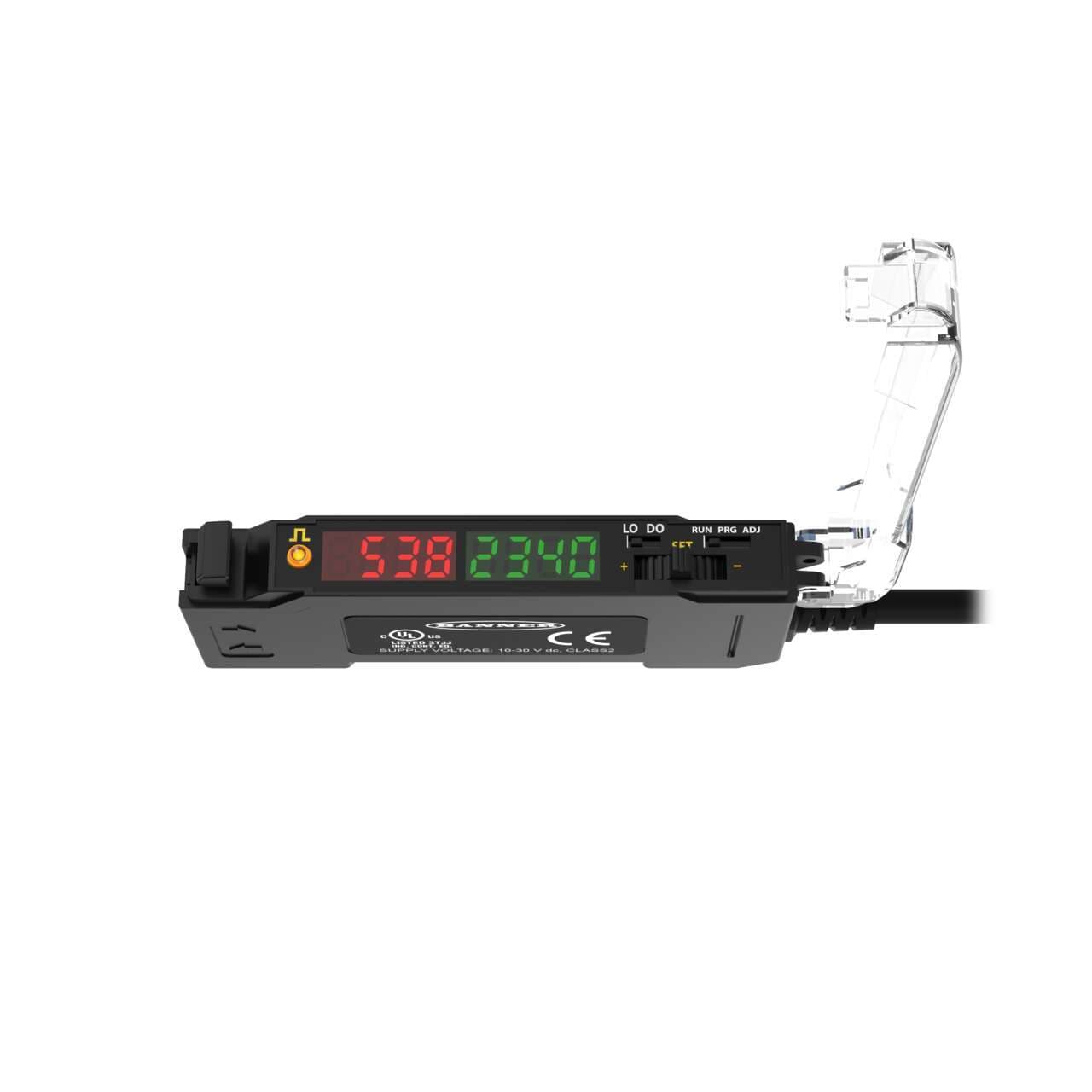

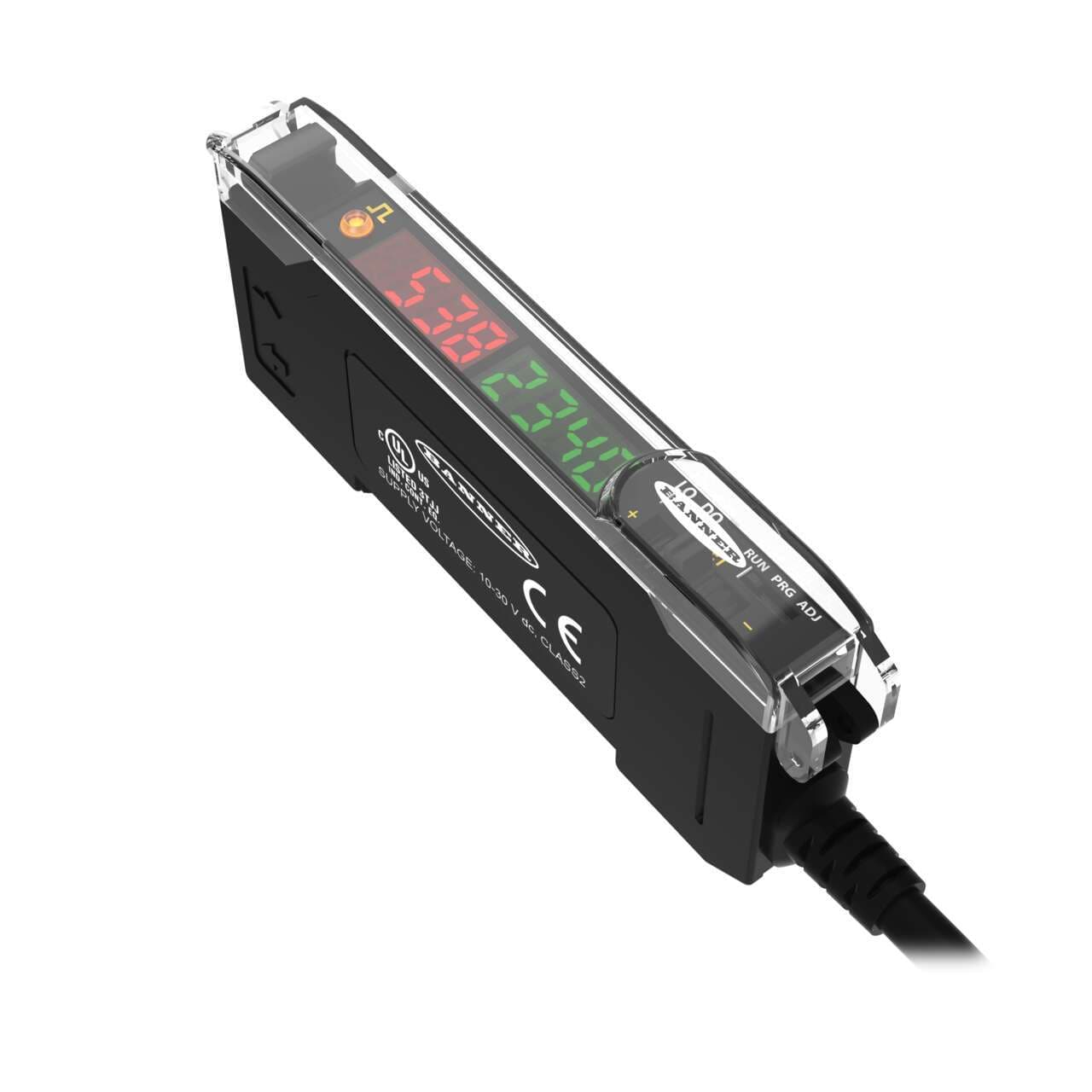

DF-G1 Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Output: 1 NPN; 2 m (6.5 ft) Cable

Product Details

  • Weight
    125.0553144 g
  • Country Of Origin
    CN
  • Housing Material
    Thermoplastic
  • IO Link
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Minimum response time (ms)
    .2
  • Special Feature: Remote Teach
    Yes
  • Special Feature: Bussable Power
    No
  • Delay at Power-up (ms)
    500
  • Indicator Display Type
    Dual Digital Displays
  • Power Supply/Supply Voltage
    10-30 V dc
  • Adjustments
    Teach Button
  • Crosstalk Avoidance
    Yes
  • Intrinsically Safe
    No
  • Max Op. Relative Humidity (%)
    90% @ 60°C
  • Min Op. Temperature (°C)
    -10
  • Max Op. Temperature (°C)
    55
  • NEMA Rating
    NEMA 1
  • Number of Pins
    4
  • IP Rating
    IP50
  • Repeatability (µs)
    66 to 100
  • Output Type (Specific)
    Single Discrete
  • Quick Disconnect Type
    No QD
  • Fiber Type
    Plastic and Glass
  • Primary Housing Material
    Thermoplastic
  • Output
    NPN
  • Connection
    Cable
  • Color LED - Amplifiers
    Red
  • Power
    DC
  • Input/Output
    Discrete
  • Housing Style
    DIN Rail
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G1-NS-2M on Powermatic Associates is $172.00. Order now.

About the product

Banner Engineering DF-G1-NS-2M is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing. It operates within an ambient air temperature range of -10 to +55°C and offers a degree of protection rated at IP50 NEMA 1. This part features a visible red light with a wavelength of 660 nm and a rapid response time of 0.2ms. It includes 1 x digital output (NPN transistor) and is characterized by its rectangular shape. The DF-G1-NS-2M, belonging to the DF-G1 Expert series, incorporates dual-display fiber optic sensor amplifier functions and is designed with TEACH mode for ease of use. It comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads, and requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
