DF-G1-NS-9M Banner Sensor Accessories

DF-G1-NS-9M on Powermatic Associates
Banner

Part#:DF-G1-NS-9M

Alt. Part#:19351

Manufacturer:Banner

Category:Sensor Accessories

Product Lifecycle:Active

Product description

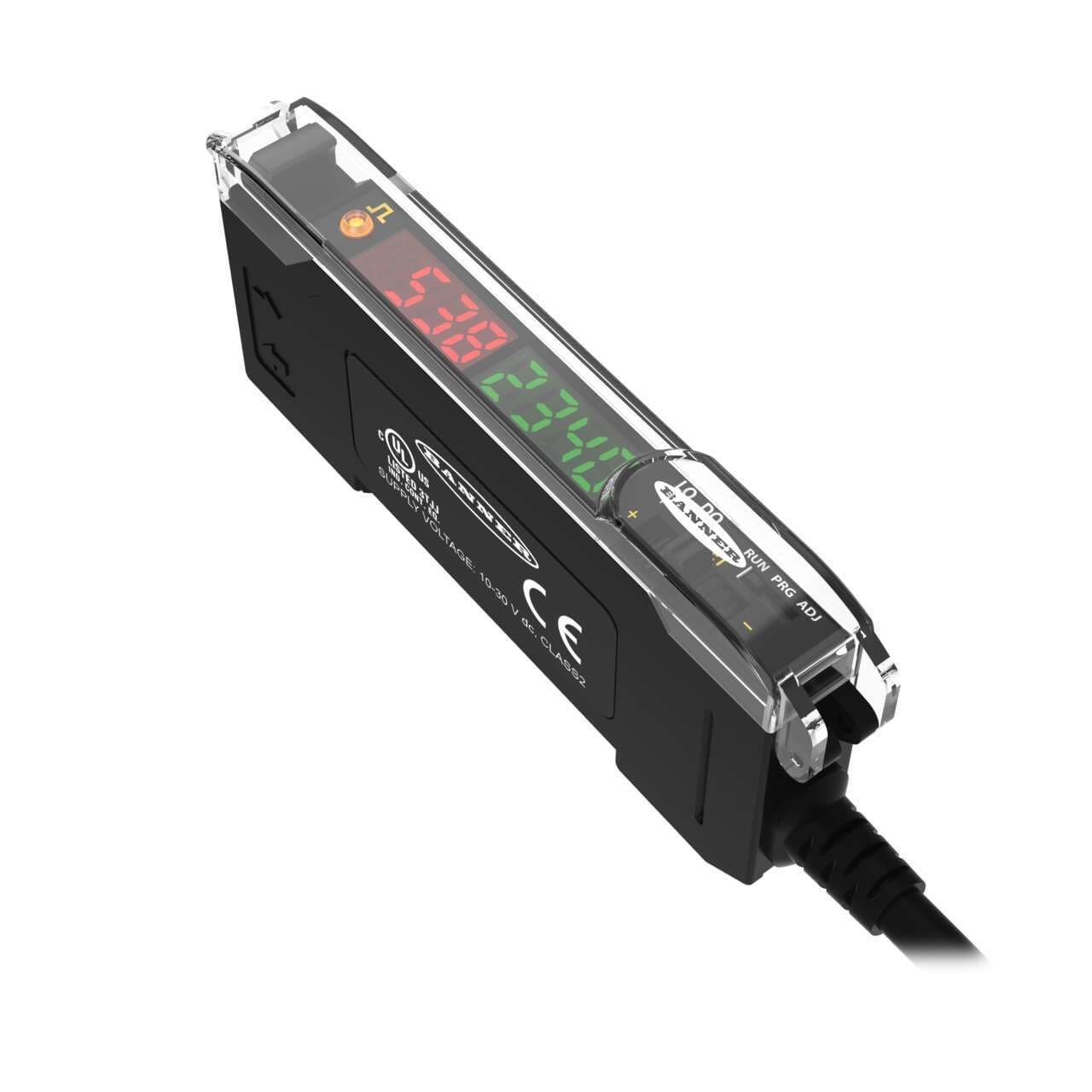

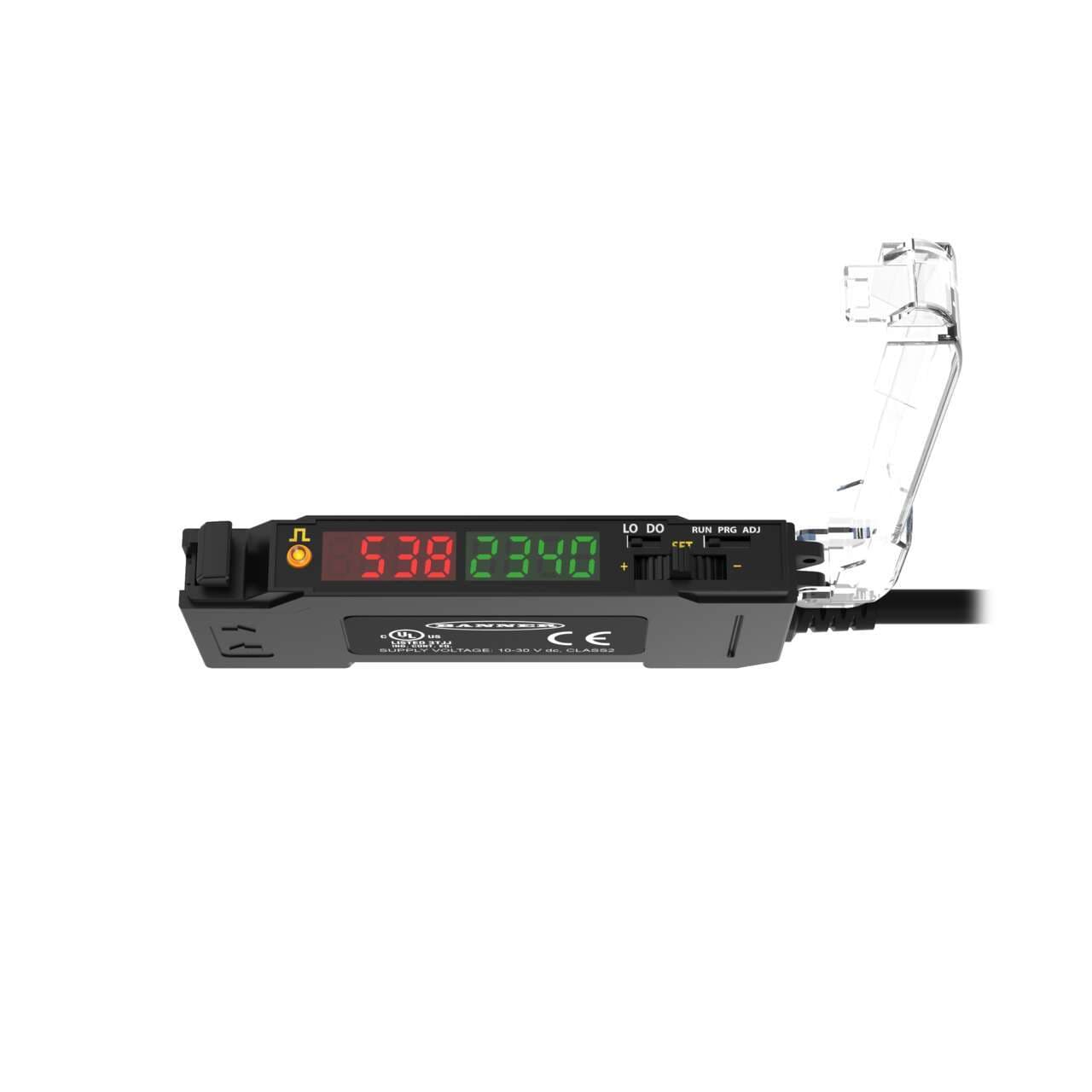

DF-G1 Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Output: 1 NPN; 9 m (30 ft) Cable

Product Details

  • Weight
    346.2267736 g
  • Country Of Origin
    CN
  • Housing Material
    Thermoplastic
  • IO Link
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Minimum response time (ms)
    .2
  • Special Feature: Bussable Power
    No
  • Indicator Display Type
    Dual Digital Displays
  • Power Supply/Supply Voltage
    10-30 V dc
  • Adjustments
    Teach Button
  • Delay at Power-up (ms)
    500
  • Intrinsically Safe
    No
  • Crosstalk Avoidance
    Yes
  • Max Op. Relative Humidity (%)
    90% @ 60°C
  • Max Op. Temperature (°C)
    55
  • Min Op. Temperature (°C)
    -10
  • NEMA Rating
    NEMA 1
  • Special Feature: Remote Teach
    Yes
  • Quick Disconnect Type
    No QD
  • Repeatability (µs)
    66 to 100
  • IP Rating
    IP50
  • Number of Pins
    4
  • Output Type (Specific)
    Single Discrete
  • Input/Output
    Discrete
  • Connection
    Cable
  • Output
    NPN
  • Fiber Type
    Plastic and Glass
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    DIN Rail
  • Power
    DC
  • Cable Length (m)
    9
  • Color LED - Amplifiers
    Red
  • Display
    LED 4 digits x 2 (red + green)
  • Main function
    Amplifier for sensor
  • Sub-range name
    DF-G1 Expert series
  • Light Color
    Visible red
  • Mounting mode
    DIN rail mounting
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Connection type
    Pre-wired with 9m cable terminated with bare end flying leads
  • Primary brand
    Banner Engineering
  • Design
    light-intensity receiver
  • Material
    thermoplastic housing
  • Compliant with standard(s)
    cULus CE
  • Product series / family name
    Fiber optic amplifiers
  • Shape
    Rectangular
  • Digital outputs
    1 x digital output (NPN transistor)
  • Functions
    Dual-display fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
  • Wavelength
    660 nm
  • Degree of protection
    IP50 NEMA 1
  • Order code / Manufacturer SKU
    19351
  • Ambient air temperature for operation
    -10...+55 °C
  • Equivalent to
    DFG1NS9M

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G1-NS-9M on Powermatic Associates is $224.00. Order now.


About the product

Banner Engineering DF-G1-NS-9M is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing. It operates within an ambient air temperature range of -10 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. This part features a visible red light with a wavelength of 660 nm and includes 1 x digital output (NPN transistor). Its rectangular shape and dual-display functionality categorize it within the DF-G1 Expert series. The design incorporates TEACH mode for ease of use and is equipped with a pre-wired 9m cable terminated with bare end flying leads for connection. It supports a supply voltage range of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc.
