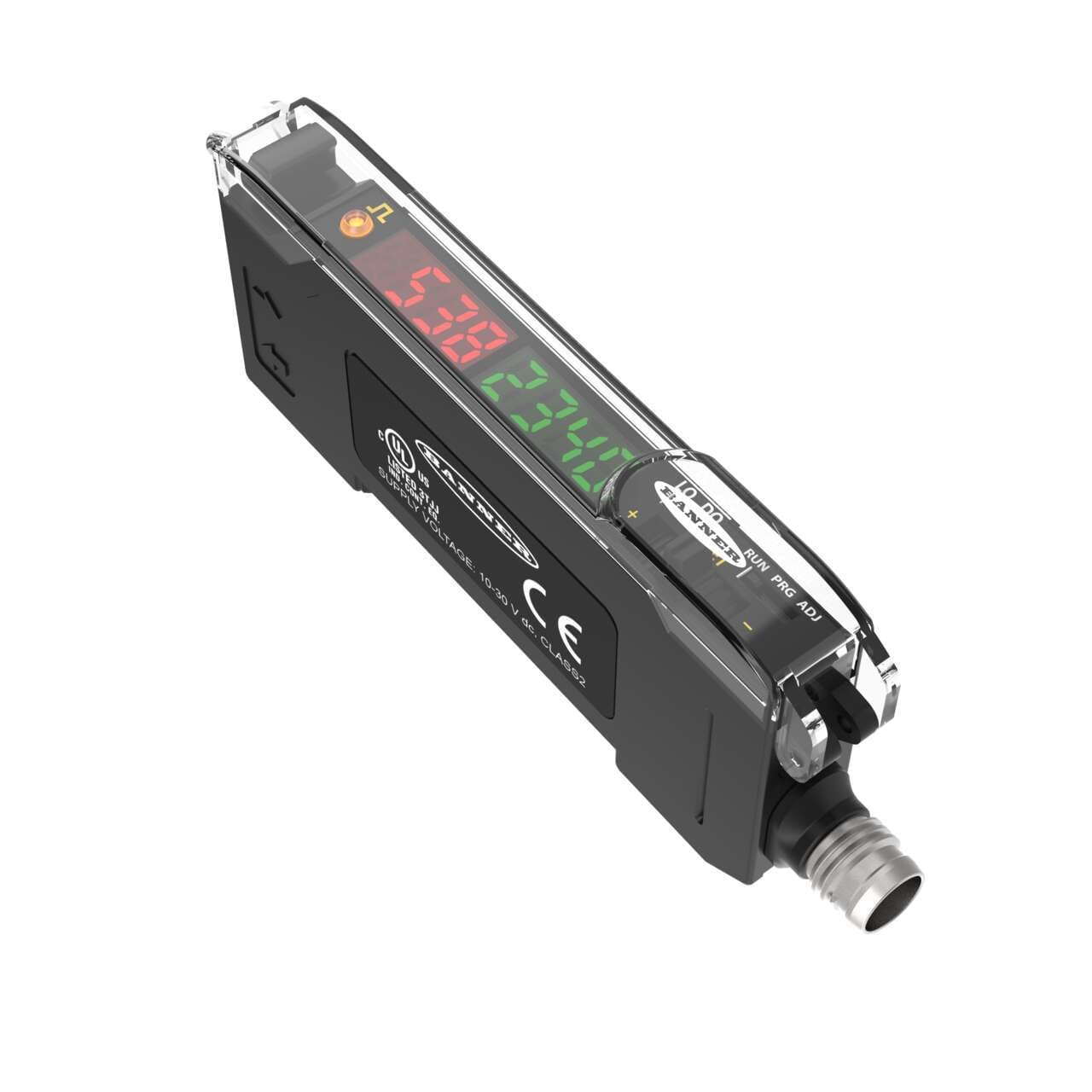

DF-G1-NS-Q7 Banner Sensor Accessories
Part#:DF-G1-NS-Q7
Alt. Part#:19354
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
DF-G1 Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Output: 1 NPN; 4-pin M8 Integral QD
Product Details
- Weight 75.2509128 g
- Country Of Origin MX
- IO Link No
- Feature: Hazardous Area No
- Housing Material Thermoplastic
- Feature: Audible No
- Feature: Timing (Hold/Delay) Yes
- Indicator Display Type Dual Digital Displays
- Minimum response time (ms) .2
- Special Feature: Bussable Power No
- Delay at Power-up (ms) 500
- Adjustments Teach Button
- Power Supply/Supply Voltage 10-30 V dc
- Intrinsically Safe No
- Special Feature: Remote Teach Yes
- Crosstalk Avoidance Yes
- Max Op. Relative Humidity (%) 90% @ 60°C
- Number of Pins 4
- Min Op. Temperature (°C) -10
- NEMA Rating NEMA 1
- Max Op. Temperature (°C) 55
- Quick Disconnect Type M8 (Pico)
- IP Rating IP50
- Output Type (Specific) Single Discrete
- Repeatability (µs) 66 to 100
- Fiber Type Plastic and Glass
- Output NPN
- Connection Integral QD
- Primary Housing Material Thermoplastic
- Input/Output Discrete
- Color LED - Amplifiers Red
- Housing Style DIN Rail
- Power DC
- Main function Amplifier for sensor
- Functions Dual-display fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
- Shape Rectangular
- Material thermoplastic housing
- Equivalent to DFG1NSQ7
- Display LED 4 digits x 2 (red + green)
- Design light-intensity receiver
- Ambient air temperature for operation -10...+55 °C
- Sub-range name DF-G1 Expert series
- Wavelength 660 nm
- Connection type Pre-equipped with 4-pin Pico-style M8 connector
- Mounting mode DIN rail mounting
- Product series / family name Fiber optic amplifiers
- Light Color Visible red
- Digital outputs 1 x digital output (NPN transistor)
- Compliant with standard(s) cULus CE
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Degree of protection IP50 NEMA 1
- Order code / Manufacturer SKU 19354
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G1-NS-Q7 on Powermatic Associates is $172.00. Order now.
About the product
Banner Engineering DF-G1-NS-Q7 is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing. It operates within an ambient air temperature range of -10 to +55°C and offers a degree of protection rated at IP50 NEMA 1. This part features a visible red light with a wavelength of 660 nm and a rapid response time of 0.2ms. It includes 1 x digital output (NPN transistor) and is characterized by its rectangular shape. As part of the DF-G1 Expert series, this dual-display fiber optic sensor amplifier is designed with TEACH mode functionality and comes pre-equipped with a 4-pin Pico-style M8 connector for connectivity. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal.
