DF-G1-PS-9M

Banner

Product Lifecycle: Active

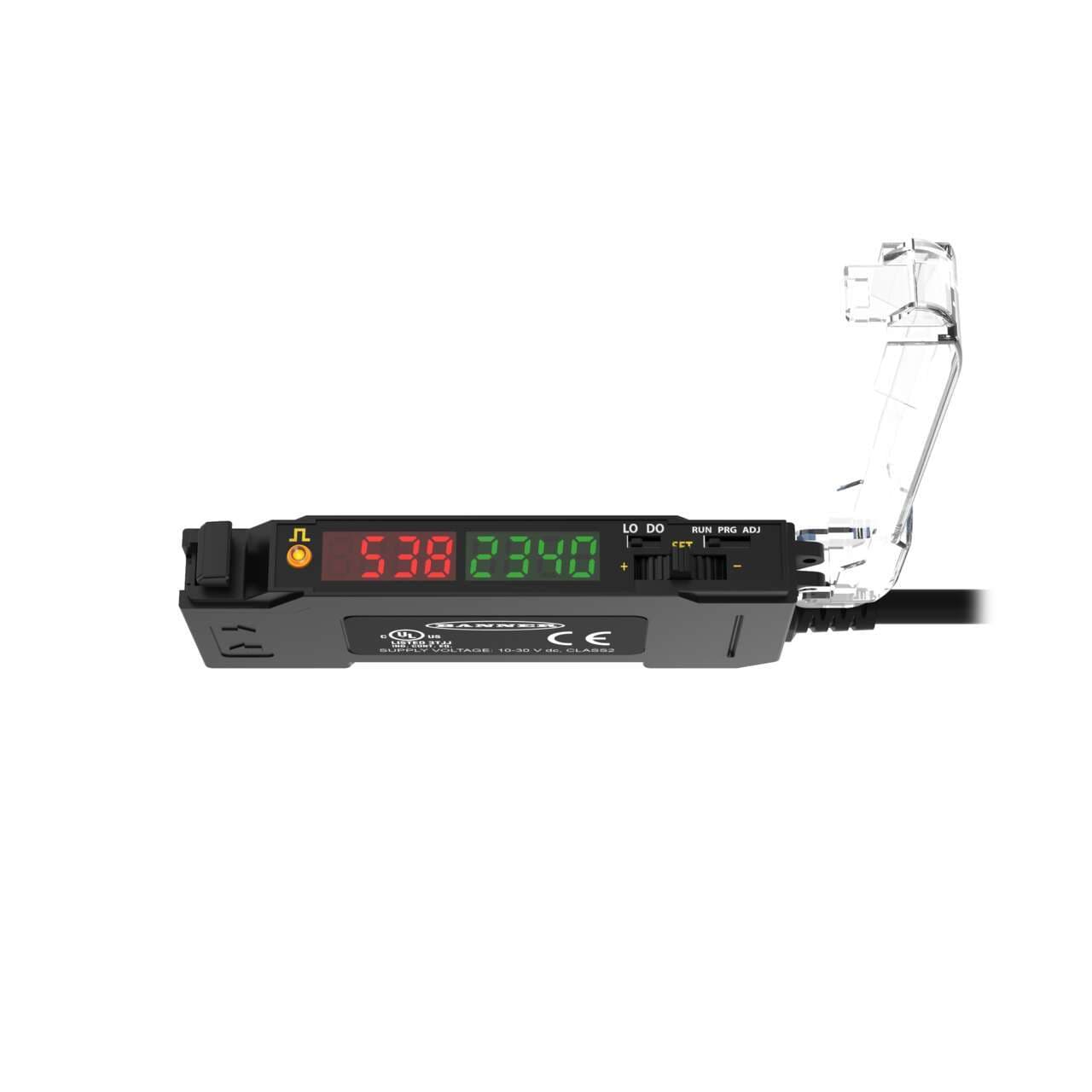

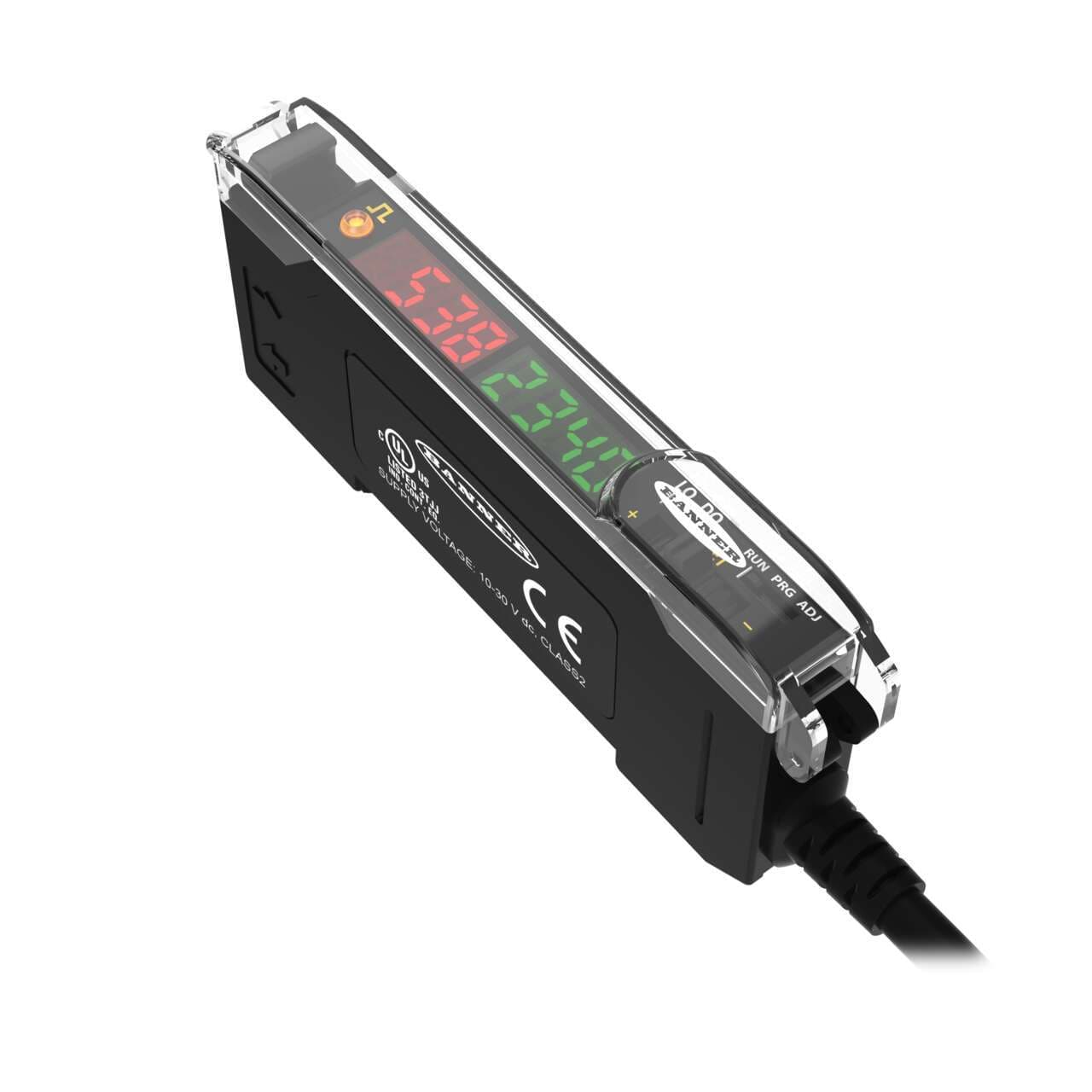

Banner Engineering DF-G1-PS-9M is an amplifier for sensors, designed for DIN rail mounting and features a thermoplastic housing. It operates within an ambient air temperature range of -10 to +55°C and offers a degree of protection rated at IP50 NEMA 1. This part emits visible red light with a wavelength of 660 nm and includes 1 x digital output (PNP transistor). Its rectangular shape and dual-display functionality categorize it within the DF-G1 Expert series. The design incorporates TEACH mode for ease of use, and it connects via a pre-wired 9m cable terminated with bare end flying leads. The supply voltage requirement ranges from 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc.

DF-G1-PS-9M

Banner Engineering DF-G1-PS-9M is an amplifier for sensors, designed for DIN rail mounting and features a thermoplastic housing. It operates within an ambient air temperature range of -10 to +55°C and offers a degree of protection rated at IP50 NEMA 1. This part emits visible red light with a wavelength of 660 nm and includes 1 x digital output (PNP transistor). Its rectangular shape and dual-display functionality categorize it within the DF-G1 Expert series. The design incorporates TEACH mode for ease of use, and it connects via a pre-wired 9m cable terminated with bare end flying leads. The supply voltage requirement ranges from 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc.

  • IO LinkNo
  • Housing MaterialThermoplastic
  • Feature: AudibleNo
  • Feature: Hazardous AreaNo
  • Feature: Timing (Hold/Delay)Yes
  • Minimum response time (ms).2
  • Special Feature: Bussable PowerNo
  • Indicator Display TypeDual Digital Displays
  • Special Feature: Remote TeachYes
  • Delay at Power-up (ms)500
  • Power Supply/Supply Voltage10-30 V dc
  • AdjustmentsTeach Button
  • Intrinsically SafeNo
  • Crosstalk AvoidanceYes
  • Min Op. Temperature (°C)-10
  • Max Op. Temperature (°C)55
  • NEMA RatingNEMA 1
  • Max Op. Relative Humidity (%)90% @ 60°C
  • Number of Pins4
  • IP RatingIP50
  • Repeatability (µs)66 to 100
  • Output Type (Specific)Single Discrete
  • Input/OutputDiscrete
  • Quick Disconnect TypeNo QD
  • Fiber TypePlastic and Glass
  • ConnectionCable
  • OutputPNP
  • Color LED - AmplifiersRed
  • Housing StyleDIN Rail
  • Primary Housing MaterialThermoplastic
  • Cable Length (m)9
  • PowerDC
  • Primary brandBanner Engineering
  • Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Wavelength660 nm
  • Ambient air temperature for operation-10...+55 °C
  • Order code / Manufacturer SKU19356
  • Product series / family nameFiber optic amplifiers
  • Designlight-intensity receiver
  • Connection typePre-wired with 9m cable terminated with bare end flying leads
  • Equivalent toDFG1PS9M
  • DisplayLED 4 digits x 2 (red + green)
  • Mounting modeDIN rail mounting
  • Degree of protectionIP50 NEMA 1
  • FunctionsDual-display fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
  • Light ColorVisible red
  • Materialthermoplastic housing
  • Compliant with standard(s)cULus CE
  • Main functionAmplifier for sensor
  • Sub-range nameDF-G1 Expert series
  • ShapeRectangular
  • Digital outputs1 x digital output (PNP transistor)
