870-527 WAGO Terminal Blocks

Name: 870-527
Brand: WAGO
Price: 7.41 USD
Availability: BackOrder

Part#:870-527

Manufacturer:WAGO

Category:Terminal Blocks

Product Lifecycle:Active

Product description

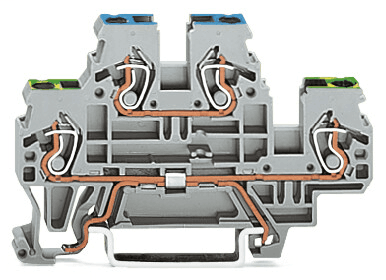

870-527 WAGO - Double-deck terminal block; Ground conductor/through terminal block; 2.5 mm²; PE/L; without marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm²; gray

Product Details

Weight
11.31000297 g
Country Of Origin
Germany
HTS Code
85369010000
Actuator
Operating Tool
Operating Temperature
105 degrees celsius
Conductor Material
Copper
Strip Length
0.28 inches, 7 millimeters
Current
24 amperes
Conductor Size
12 american wire gauge, 2.5 millimeters
Voltage
500 volts
Color
Gray
Package Type
Box
Country of Origin
Germany
Height
2.756 inches, 70 millimeters
Width
0.197 inches, 5 millimeters
Insulation Material
Polyamide
Mounting Type
DIN-35 Rail
Flammability Class
V0
Weight
11.310 grams

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 870-527 on Powermatic Associates is $7.41. Order now.

About the product

Wago 870-527 is a terminal block designed for feed-through and grounding applications. It features CAGE-CLAMP spring connections for secure and maintenance-free wire connections. This terminal block is rated for a current of 24A according to IEC standards and is designed with two decks for efficient space utilization. It supports a rated impulse voltage of 5 mm and has a net height of 6 kV, indicating its insulation properties. The terminal block is designed to fit on DIN-35 rail, accommodating various installation environments. It is suitable for wires ranging from 0.08mm2 to 4mm2 for fine stranded conductors and 0.08mm2 to 2.5mm2 for solid conductors, including #28AWG to #12AWG sizes. The terminal block's dimensions are H70mm x W5mm x D40mm, and it is constructed from Polyamide (PA) 66 for durability. It features a 4-wire connection system (2 clamps + 2 clamps) and is part of the X-COM series, designed for a network frequency with a diameter rating of 500 V according to IEC standards.
