2002-1201 WAGO Terminal Blocks

2002-1201 on Powermatic Associates
WAGO

Part#:2002-1201

Manufacturer:WAGO

Category:Terminal Blocks

Product Lifecycle:Active

306 in stock

Apr 1, 2025

Product description

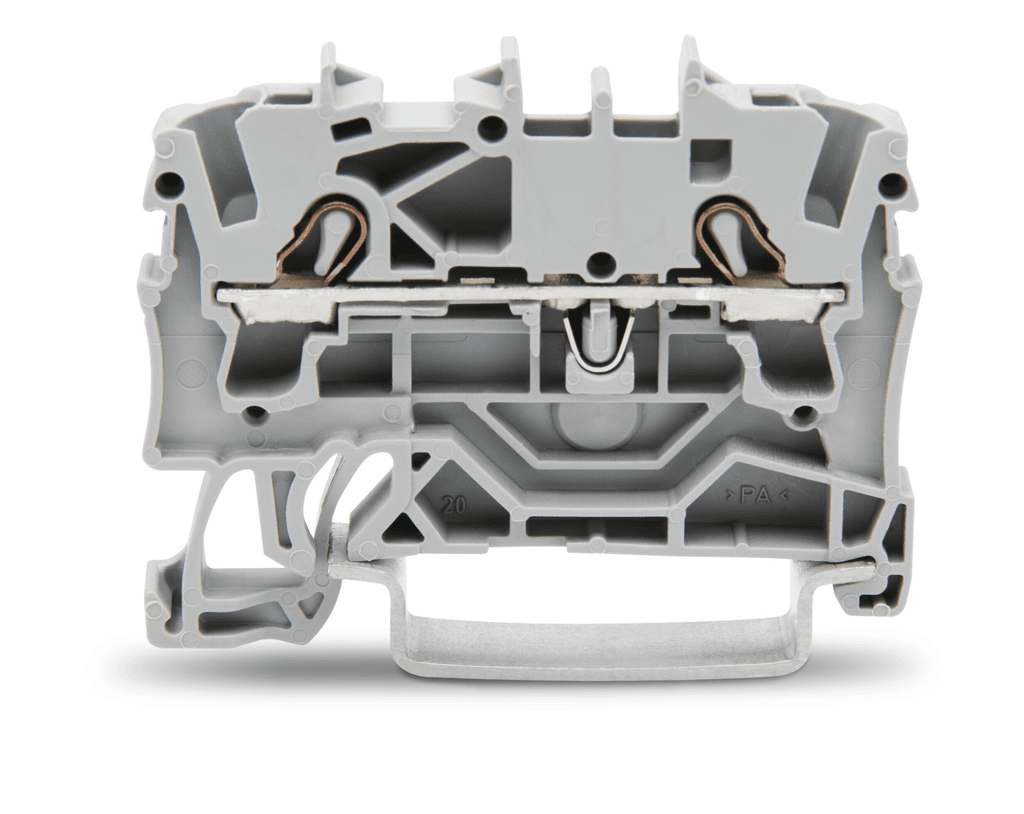

2002-1201 WAGO - TOPJOB®S feedthrough terminal block; rail mount; 2-conductor; 5.2 mm wide; gray

Product Details

  • Weight
    5.079001336 g
  • Country Of Origin
    Germany
  • HTS Code
    85369010000
  • Weight
    5.086 grams
  • Voltage
    600 volts, 800 volts
  • Width
    0.205 inches, 5.2 millimeters
  • Strip Length
    0.47 inches, 12 millimeters
  • Package Type
    Box
  • Operating Temperature
    105 degrees celsius
  • Insulation Material
    Polyamide
  • Mounting Type
    DIN-35 Rail
  • Height
    1.909 inches, 48.5 millimeters
  • Flammability Class
    V0
  • Current
    20 amperes, 24 amperes
  • Conductor Size
    12 american wire gauge, 4 millimeters
  • Conductor Material
    Copper
  • Color
    Gray
  • Actuator
    Operating Tool

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2002-1201 on Powermatic Associates is $1.64. Order now.
