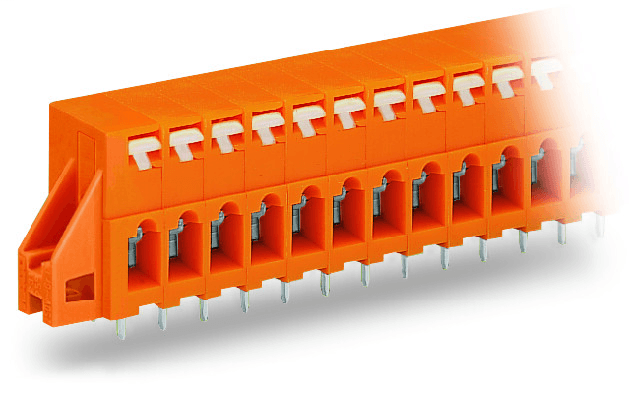

741-233 WAGO Terminal Blocks

WAGO 741-233 is an automation part with a short circuit breaking rating and electrical data adhering to IEC/EN 60664-1 standards. It features nominal voltages of 250V (III/3), 320V (III/2), and 630V (II/2), with rated impulse and surge voltages of 4kV across different overvoltage categories and pollution degrees. The rated current is 16A. UL and CSA approvals are included, with rated voltages of 300V and rated currents of 10A and 16A for different use groups. This part has three connection points, supports a single connection type with CAGE CLAMP technology, and is actuated by a push-button. It accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), with specific sizes for ferruled conductors. The strip length for connections is 5 to 6mm, and the conductor connection direction to PCB is 0°. It has a pole number of 3, pin spacing of 5.08mm, and dimensions that include a width of 24.56mm, height of 22.5mm, and depth of 12.8mm. The mounting options include a mounting flange, feed-through mounting, and panel mounting. The terminal strip is designed for THT PCB contacts with in-line solder pin arrangement. The material is orange Polyamide (PA66) with a V0 flammability class, and the clamping spring is made of Chrome-Nickel spring steel. The contact material is Electrolytic Copper with tin plating. It operates within a temperature range of -60 to +105°C, weighs 5g, and complies with RoHS. The product is part of WAGO's Printed Circuit Connectors group, packaged in boxes of 160 pieces, and has a GTIN of 4044918679978.
