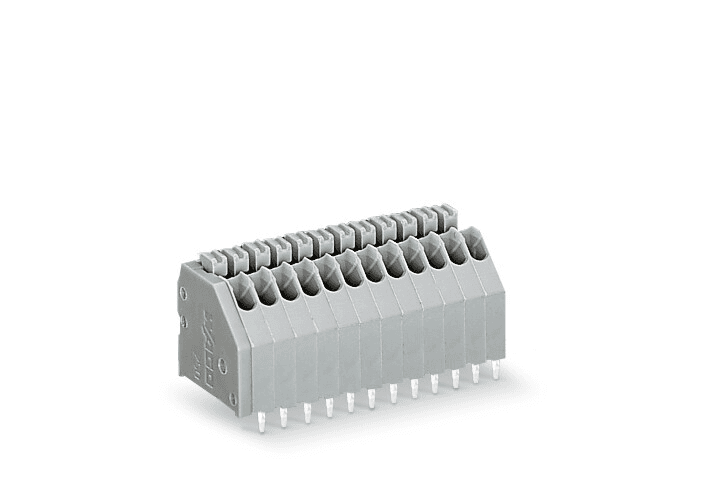

250-313 WAGO Terminal Blocks

WAGO 250-313 is an automation part with a short circuit breaking rating and electrical data adhering to IEC/EN 60664-1 standards. It features nominal voltages of 100V (III/3), 160V (III/2), and 320V (II/2), with rated impulse voltages of 2.5kV for all categories and a rated current of 4A. The part is UL 1059 approved, with rated voltages of 300V and rated currents of 5A for UL Use Groups B and D, and CSA approved with rated voltages of 300V and rated currents of 2A for CSA Use Groups B and D. It has 13 connection points, a single connection type, and one level, utilizing Push-in CAGE CLAMP technology with push-button actuation. The solid and fine-stranded conductor sizes range from 0.14 to 0.5mm2 (24 to 20 AWG), with a conductor connection direction to PCB at 45 degrees and a pole number of 13. Physical specifications include a pin spacing of 2.5mm, width of 34mm, height of 16.7mm, depth of 12mm, and solder pin length of 3.6mm. The part is made from gray Polyamide (PA66), with a flammability class of UL94 V0, and features tin contact plating. It operates within a temperature range of -60 to +105°C, is RoHS compliant without exemption, and comes in a box packaging of 140 pieces per unit with a GTIN of 4050821573197.
