236-114/000-008 WAGO Terminal Blocks

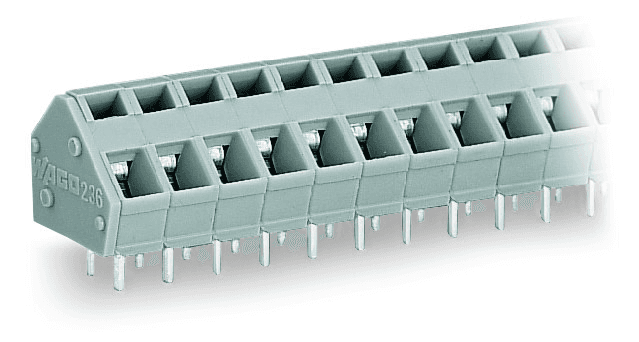

WAGO 236-114/000-008 is a printed circuit connector with a short circuit breaking rating as per IEC/EN 60664-1. It features nominal voltages of 250V (III/3), 320V (III/2), and 630V (II/2) with a rated impulse voltage of 4kV across these categories. The rated current is 24A according to IEC/EN standards. Under UL 1059 approvals, it has rated voltages of 300V and rated currents of 15A for Use Group B and 10A for Use Group D. Similarly, CSA approvals indicate the same voltage and current ratings for Use Groups B and D. This connector has 14 connection points, supports a single connection type with one level, and utilizes CAGE CLAMP technology for connection. It accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), including options for both insulated and uninsulated ferrules. The strip length for connections is 5 to 6mm, and the conductor connection direction to PCB is at 45 degrees. Physically, it has a pin spacing of 5/5.08mm, dimensions of 72.3mm in width, 17mm in height, 14mm in depth, and a solder pin length of 4mm. The terminal strip is dark gray, made from Polyamide (PA66) with a flammability class of V0, and uses Chrome-Nickel spring steel for the clamping spring and tin-plated Electrolytic Copper for contacts. It operates within a temperature range of -60 to +105°C, weighs 12g, and is RoHS compliant without exemptions. The product is packaged in boxes with 60 pieces per unit (15 pieces per sub-packaging) and has a GTIN of 4050821760863.
