TN-M18-H1147/C53 Turck Industrial Automation Components
Part#:TN-M18-H1147/C53
Alt. Part#:7030728
Manufacturer:Turck
Category:Industrial Automation Components
Product Lifecycle:Active
Product description
TN-M18-H1147/C53 Turck - TN-M18-H1147/C53 HF Read/Write Head, For Bus Line Topology with TBEN-*
Product Details
- Weight 60 g
- Country Of Origin DEU
- HTS Code 8536507000
- Country of Origin Germany
- Weight 60 grams
- Ambient Temperature -25 degrees celsius, 70 degrees celsius
- Protection class IP67
- Suitable for bus mode to TBEN-*. Yes
- Fieldbus Protocol Connection to RFID interface
- Ambient temperature -25…+70 °C
- Mounting Non-flush
- Read/Write distance max. 45 mm
- Design Threaded barrel

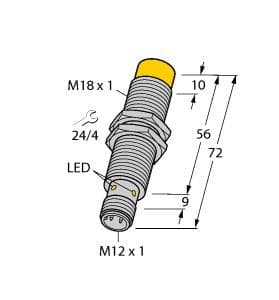

- Construction size M18 x 1
- Technology HF (13.56 MHz)
- Radio communication and protocol standards ISO 15693, NFC Typ 5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TN-M18-H1147/C53 on Powermatic Associates is $394.30. Order now.
About the product
HF Read/Write Head, For Bus Line Topology with TBEN-*, Non-flush, Threaded barrel, M18 x 1, Chrome-plated brass, Device without end termination, Device may only be operated in line topology TBEN-S*-2RFID-* or TBEN-L*-4RFID-*, Max. 32 nodes per line or connection permitted, Use a corresponding terminating resistor (see accessories), Observe the performance of the power supply, especially when turned on, and the maximum current carrying capacity of the cables, Observe the voltage drop on the line, The maximum possible length of the spur line is 2 m, The maximum possible length of the bus is 50 m, By default, a command can only be processed by one read/write head, making HF bus mode suitable for static applications and slow dynamic applications, In continuous HF bus mode, a command is executed simultaneously on all read/write heads in a bus topology. The recorded data is stored in the ring buffer of the module, The read/write head is automatically assigned an address, For different application requirements, the address and can be parameterized, Powered and operated only via BL ident interface module, M12 × 1 male, connection only via BL ident extension cable
