TN-M30-H1147/C53 Turck Industrial Automation Components

TN-M30-H1147/C53 on Powermatic Associates
Turck
  • TN-M30-H1147/C53
  • TN-M30-H1147/C53

Part#:TN-M30-H1147/C53

Alt. Part#:7030730

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

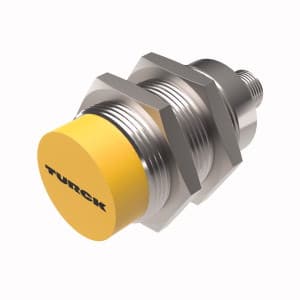

TN-M30-H1147/C53 Turck - TN-M30-H1147/C53 HF Read/Write Head, For Bus Line Topology with TBEN-*

Product Details

  • Weight
    105 g
  • Country Of Origin
    DEU
  • HTS Code
    8533210040
  • Weight
    105 grams
  • Country of Origin
    Germany
  • Ambient Temperature
    -25 degrees celsius, 70 degrees celsius
  • Radio communication and protocol standards
    ISO 15693, NFC Typ 5
  • Protection class
    IP67
  • Fieldbus Protocol
    Connection to RFID interface
  • Technology
    HF (13.56 MHz)
  • Mounting
    Non-flush
  • Design
    Threaded barrel
  • Ambient temperature
    -25…+70 °C
  • Construction size
    M30 x 1.5
  • Read/Write distance max.
    77 mm
  • Suitable for bus mode to TBEN-*.
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TN-M30-H1147/C53 on Powermatic Associates is $394.30. Order now.


About the product

HF Read/Write Head, For Bus Line Topology with TBEN-*, Non-flush, Threaded barrel, M30 x 1.5, Chrome-plated brass, Device without end termination, Device may only be operated in line topology TBEN-S*-2RFID-* or TBEN-L*-4RFID-*, Max. 32 nodes per line or connection permitted, Use a corresponding terminating resistor (see accessories), Observe the performance of the power supply, especially when turned on, and the maximum current carrying capacity of the cables, Observe the voltage drop on the line, The maximum possible length of the spur line is 2 m, The maximum possible length of the bus is 50 m, By default, a command can only be processed by one read/write head, making HF bus mode suitable for static applications and slow dynamic applications, In continuous HF bus mode, a command is executed simultaneously on all read/write heads in a bus topology. The recorded data is stored in the ring buffer of the module, The read/write head is automatically assigned an address, For different application requirements, the address and can be parameterized



TN-M30-H1147/C53 Related Documents

This item can ship within 0 day!

Manufacturer warranty

TN-M30-H1147/C53 Turck

$394.30

Your price can be lower.
Log in or Create account to check your discount

Stock:

0

Select Qty:

$394.30

$394.30 each

Worldwide Shipping and Delivery


Secure Payment Processing


Warranty


Responsive Customer Support
