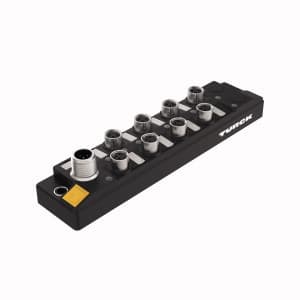

TBIL-S3-8DIP Turck I/O Modules

Name: TBIL-S3-8DIP
Brand: Turck

Turck TBIL-S3-8DIP TBIL-S3-8DIP I/O Hub for connection of digital signals to IO-Link Master, 8 Digital Inputs, 8 M8 Ports

Part#:TBIL-S3-8DIP

Manufacturer:Turck

Alt. Part#:100002594

Product Lifecycle:Active

Get a quick Quote!

TBIL-S3-8DIP I/O Hub for connection of digital signals to IO-Link Master, 8 Digital Inputs, 8 M8 Ports

About the manufacturer: Turck is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the TBIL-S3-8DIP Turck price in the box on the right side or send a quick quote.

Product Details

Weight
160 g
Ambient temperature
-40…+70 °C
Connection technology signal
M12
Product Family
TBIL
Device type
I/O hub, I/O Module, Compact station
Protection class
IP65/IP67/IP69K
Fieldbus Protocol
IO-Link
Signal type
Digital input

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TBIL-S3-8DIP Description

Turck TBIL-S3-8DIP is a remote I/O controller within the TBIL series, designed for IO-link diagnostics to connect digital signals to an IO-Link master. It features a digital block remote input hub with a housing made of fiberglass reinforced PA6-GF30 and metal connectors. This part includes 8 x 3-pin M8 female connectors for I.O. ports and 1 x 5-pin M12 male connector for FIELDBUS. It operates on a supply voltage of 18-30Vdc, with 24Vdc nominal. The TBIL-S3-8DIP is designed for surface mounting and can operate in ambient air temperatures ranging from -40 to +70°C. It offers a degree of protection of IP65, IP67, and IP69K. The net dimensions are 31.6 mm in width, 144 mm in height, and 26.8 mm in depth. It supports the IO-Link communication protocol and has 8 x digital inputs that accept -3...+5Vdc low level signal or 11-30Vdc high level signal.
