BLCEN-4M12MT-4IOL Turck I/O Modules

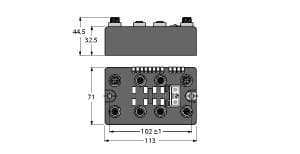

Turck BLCEN-4M12MT-4IOL is a remote I/O controller within the BL compact series designed for Industrial Ethernet applications. It features an auxiliary power with 4 IO-Link channels supporting multi-protocol connectivity, including EtherNet/IP, Modbus TCP, and PROFINET, housed in a medium-sized enclosure. The supply voltage required is 24Vdc, and it is constructed from fiberglass reinforced nylon housing with nickel-plated brass connectors. This part offers a variety of connection types, including 4 x 5-pin M12 female connectors for I.O. ports, 2 x 4-pin M12 female connectors for FIELDBUS, and 2 x 5-pin M12 connectors (male + female) for voltage supply. It boasts a high degree of protection with ratings of IP67 and IP69K, making it suitable for surface mounting. The communication protocols supported are Ethernet/IP, Modbus TCP, PROFINET, and IO-Link. The dimensions are 113 mm in height, 44.5 mm in depth, and 71 mm in width. It operates efficiently within an ambient air temperature range of -40 to +70°C. The connection capacity includes 4 ports, with 4 x digital inputs (PNP) and 4 x digital outputs (PNP). The data transfer speed can reach up to 10Mbps or 100Mbps.
