BLCEN-4M12MT-8XSG-P Turck Industrial Automation Components

BLCEN-4M12MT-8XSG-P on Powermatic Associates
Turck
  • BLCEN-4M12MT-8XSG-P
  • BLCEN-4M12MT-8XSG-P

Part#:BLCEN-4M12MT-8XSG-P

Alt. Part#:6811452

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

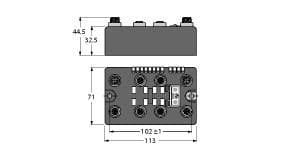

BLCEN-4M12MT-8XSG-P Turck - BLCEN-4M12MT-8XSG-P BL compact™ multiprotocol fieldbus station for Industrial Ethernet, 8 Configurable Digital PNP Channels

Product Details

  • Weight
    444 g
  • Country Of Origin
    USA
  • HTS Code
    8536908530
  • Country of Origin
    USA
  • Weight
    444 grams
  • Ambient Temperature
    -40 degrees celsius, 70 degrees celsius
  • Fieldbus Protocol
    Modbus TCP, EtherNet/IP, PROFINET
  • Protection class
    IP67/IP69K
  • Signal type
    Digital output, Digital input/output, Digital input
  • Connection technology signal
    M12
  • Device type
    I/O Module, Compact station, Field Logic Controller (ARGEE)
  • Ambient temperature
    -40…+70 °C
  • Product Family
    BL compact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BLCEN-4M12MT-8XSG-P on Powermatic Associates is $520.70. Order now.

About the product

BL compact™ multiprotocol fieldbus station for Industrial Ethernet, 8 Configurable Digital PNP Channels, On-machine Compact fieldbus I/O block, EtherNet/IP™, Modbus® TCP, or PROFINET slave, Integrated Ethernet Switch, 10 Mbps / 100 Mbps supported, Two 4-pole M12, D-coded, connectors for fieldbus connection, 2 rotary switches for node address, IP67, IP69K, M12 I/O connectors, LEDs indicating status and diagnostics, Electronics galvanically separated from the field level via optocouplers, 8 Configurable digital PNP channels, 24 VDC, Max. 0.5A per channel, Selection of filtering times (Input delay), Invertible inputs
