PKG 4Z-4 Turck Cordsets

Turck PKG 4Z-4 PKG 4Z-4 Actuator and Sensor Cordset, Connection Cable
Turck

Part#:PKG 4Z-4

Manufacturer:Turck

Alt. Part#:U0070-34

Product Lifecycle:Active

In-stock parts: 6

Sep 28, 2024

PKG 4Z-4 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PKG 4Z-4 Turck price in the box on the right side or send a quick quote.

Product Details

  • Cable Jacket Color
    Yellow
  • Cable length (L)
    4.0  m
  • Approvals
    UL Listed, CSA, CE, RoHS
  • Cable Jacket Material
    PVC
  • Current
    2 A
  • Voltage
    125 V
  • Connector A
    Ø 8 mm
  • Connector A - Number of Pins
    4
  • Connector A - Style
    Straight, Female
  • Number of Conductors
    4
  • Application
    Actuator and Sensor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PKG 4Z-4 Description

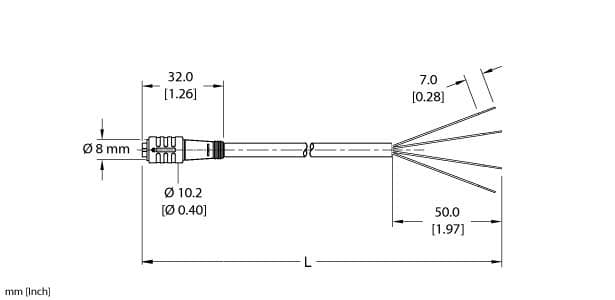

Turck PKG 4Z-4 is a single-ended mating cable/cordset designed for various applications, including C-Track and drag chain environments. This cable features a 4m length with a 4.4mm outer diameter TPE jacket, ensuring durability and flexibility. It is equipped with a 4-pin M8 picofast female connector with snap-lock to bare end flying leads, facilitating easy and secure connections. The PKG 4Z-4 operates at a rated current of 2A and a rated voltage of 125Vac, suitable for 4-wire configurations with a cross-section of 4 x #26AWG. The cable's construction includes a nickel-plated brass coupling nut, POM locking sleeve, and TPU jacket, all in black, offering a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, making it resilient in various environmental conditions.

Related documents PKG 4Z-4 Specs

PKG 4Z-4 edb_U0070-34_eng_us.pdf

This item can ship within 24h!

Manufacturer warranty

$24.90

Stock:

6

Select Qty:

$24.90

$24.90 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
