LI1000P1-Q25LM4-LIU5X3-H1151 Turck Linear Position Sensors
Part#:LI1000P1-Q25LM4-LIU5X3-H1151
Manufacturer:Turck
Alt. Part#:1590249
Product Lifecycle:Active
Get a quick Quote!
LI1000P1-Q25LM4-LIU5X3-H1151 Inductive Linear Position Sensor
About the manufacturer: Turck is one of the manufacturers that offers Linear Position Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the LI1000P1-Q25LM4-LIU5X3-H1151 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 1452 g
- Protection class IP67
- Ambient temperature -25…+70 °C
- Operating voltage 15…30 VDC
- Design Profile
- Measuring range 1000 mm [39.37 in]
- Housing material Aluminum/plastic, PA6-GF30, Anodized
- Electrical connection Connector, M12 × 1
- Output function Analog output
- Measuring principle Inductive
- Voltage output 0…10 V
- Current output 4…20 mA
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
LI1000P1-Q25LM4-LIU5X3-H1151 Description

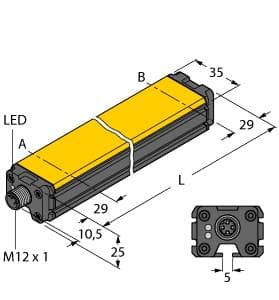

Turck LI1000P1-Q25LM4-LIU5X3-H1151 is an encoder (linear) from the Q-track Q25 series, designed as a contactless linear inductive positioning sensor. It features an L-shaped mounting accessory with a captive positioning element. The dimensions are H35mm x W25mm x D1058mm, with a rectangular shape. The housing is made of anodized aluminum and plastic PA6-GF30, including the active area and sensing face. It comes pre-equipped with a 5-pin M12 Eurofast QD male connector. The encoder offers protection against short-circuit, wire-break, and reverse polarity. It operates on a supply voltage of 15Vdc-30Vdc (24Vdc nom.) and can function in ambient air temperatures ranging from -25 to +70°C. It is rated with a degree of protection IP67. The stroke length includes a 29mm blind zone at both ends, a 1.5mm nominal distance, and a 1000mm (1m) measurement span. It has 1 x analog output (0-10Vdc / 4-20mA; 12-bit resolution), with a current consumption of 50mA and a 500Hz sampling rate. The measurement accuracy is detailed with a 16-bits resolution (0.016mm / 16μm linear resolution), ≤ 0.02% of full scale repeatability, ≤ +/-0.003% / K temperature drift, and ≤ 0.1% of full scale linearity deviation. Visual position indicators include green / yellow / yellow flashing LED (multifunction) and green LED (power ON), with a resolution of 16-bit.
Related documents LI1000P1-Q25LM4-LIU5X3-H1151 Specs
Manufacturer warranty
