LI100P3-Q25LM1-LIU5X3-H1151 Turck Linear Position Sensors
Part#:LI100P3-Q25LM1-LIU5X3-H1151
Manufacturer:Turck
Alt. Part#:1590110
Product Lifecycle:Active
Get a quick Quote!
LI100P3-Q25LM1-LIU5X3-H1151 Inductive Linear Position Sensor
About the manufacturer: Turck is one of the manufacturers that offers Linear Position Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the LI100P3-Q25LM1-LIU5X3-H1151 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 364 g
- Protection class IP67
- Ambient temperature -25…+70 °C
- Current output 4…20 mA
- Housing material Aluminum/plastic, PA6-GF30, Anodized
- Electrical connection Connector, M12 × 1
- Design Profile
- Voltage output 0…10 V
- Output function Analog output
- Measuring range 100 mm [3.94 in]
- Operating voltage 15…30 VDC
- Measuring principle Inductive
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
LI100P3-Q25LM1-LIU5X3-H1151 Description

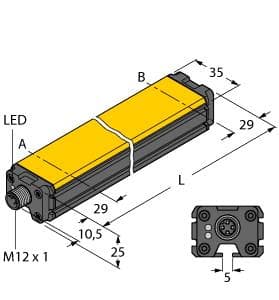

Turck LI100P3-Q25LM1-LIU5X3-H1151 is an encoder (linear) from the Q-track Q25 series, designed as a contactless linear inductive positioning sensor. It features a 68mm long mounting foot with a right-angle, free-moving positioning element, and has dimensions of H35mm x W25mm x D158mm. The rectangular shape is constructed from an aluminum/plastic PA6-GF30 anodized housing, with both the active area and sensing face made of plastic PA6-GF30. It comes pre-equipped with a 5-pin M12 Eurofast QD male connector for connectivity. The encoder offers protection against short-circuit, wire-break, and reverse polarity. It operates on a supply voltage of 15Vdc-30Vdc (24Vdc nom.) and can function in ambient air temperatures ranging from -25 to +70°C. With an IP67 degree of protection, it features a stroke length with 29mm blind zones at both ends, a 1.5mm nominal distance, and a 100mm measurement span. The analog outputs include 1 x analog output (0-10Vdc / 4-20mA; 12-bit resolution), with a current consumption of 50mA and a 500Hz sampling rate. Measurement accuracy is detailed with a 16-bits resolution (equivalent to 0.002mm / 2μm linear resolution), ≤ 0.02% of full scale repeatability, ≤ +/-0.003% / K temperature drift, and ≤ 0.1% of full scale linearity deviation. Visual position indicators are provided by green / yellow / yellow flashing LED (multifunction) and a green LED for power ON, with a resolution of 16-bit.
Related documents LI100P3-Q25LM1-LIU5X3-H1151 Specs
