LI100P1-Q25LM2-LIU5X3-H1151 Turck Industrial Automation Components

LI100P1-Q25LM2-LIU5X3-H1151 on Powermatic Associates
Turck
  • LI100P1-Q25LM2-LIU5X3-H1151
  • LI100P1-Q25LM2-LIU5X3-H1151

Part#:LI100P1-Q25LM2-LIU5X3-H1151

Alt. Part#:1590130

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

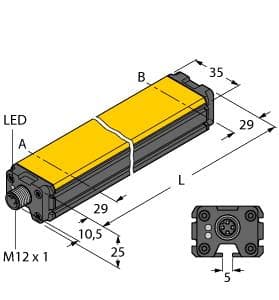

LI100P1-Q25LM2-LIU5X3-H1151 Turck - LI100P1-Q25LM2-LIU5X3-H1151 Inductive Linear Position Sensor

Product Details

  • Weight
    366 g
  • RoHS
    Yes
  • Country Of Origin
    DEU
  • HTS Code
    9032896075
  • Weight
    366 grams
  • Operating Voltage
    15 volts, 30 volts
  • Country of Origin
    Germany
  • Ambient Temperature
    -25 degrees celsius, 70 degrees celsius
  • Ambient temperature
    -25…+70 °C
  • Protection class
    IP67
  • Operating voltage
    15…30 VDC
  • Current output
    4…20 mA
  • Housing material
    Aluminum/plastic, PA6-GF30, Anodized
  • Electrical connection
    Connector, M12 × 1
  • Voltage output
    0…10 V
  • Design
    Profile
  • Output function
    Analog output
  • Measuring principle
    Inductive
  • Measuring range
    100 mm [3.94 in]

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LI100P1-Q25LM2-LIU5X3-H1151 on Powermatic Associates is $545.40. Order now.

About the product

Inductive Linear Position Sensor, Measuring range 100 mm, Rectangular, aluminium / plastic, Versatile mounting possibilities, Positioning element P1-Li-Q25L, mounting aid M2-Q25L included in delivery, LED indicates measuring range, Immune to electromagnetic interference, Extremely short blind zones, Resolution, 12-bit, 4‐wire, 15…30 VDC, Analog output, Programmable measuring range, 0…10 V and 4…20 mA, M12 × 1 male, 5-pin
