BLCEN-2M12MT-2AI-TC Turck I/O Modules

BLCEN-2M12MT-2AI-TC on Powermatic Associates
Turck

Part#:BLCEN-2M12MT-2AI-TC

Manufacturer:Turck

Alt. Part#:6811465

Product Lifecycle:Active

Get a quick Quote!

BLCEN-2M12MT-2AI-TC BL compact™ multiprotocol fieldbus station for Industrial Ethernet, 2 Analaog Inputs for Thermocouple Elements

About the manufacturer: Turck is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BLCEN-2M12MT-2AI-TC Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    448 g
  • Country Of Origin
    USA
  • HTS Code
    8536908530
  • Product Family
    BL compact
  • Device type
    I/O Module, Compact station, Field Logic Controller (ARGEE)
  • Ambient temperature
    -40…+70 °C
  • Fieldbus Protocol
    Modbus TCP, EtherNet/IP, PROFINET
  • Signal type
    Analog input, Temperature
  • Protection class
    IP67/IP69K
  • Connection technology signal
    M12

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BLCEN-2M12MT-2AI-TC Description

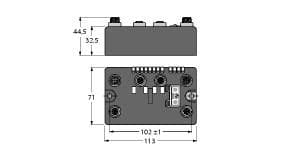

Turck BLCEN-2M12MT-2AI-TC is a remote I/O controller within the BL compact series, designed for analog block remote input temperature module applications. It features auxiliary power for multi-protocol support, including EtherNet/IP, Modbus TCP, and PROFINET, within a medium housing. The supply voltage required is 24Vdc. This part is constructed from fiberglass reinforced nylon housing with nickel-plated brass connectors. It offers connection through 2 x 4-pin M12 female connectors for I.O. ports, 2 x 4-pin M12 female connectors for FIELDBUS, and 2 x 5-pin M12 connectors (male + female) for voltage supply. The BLCEN-2M12MT-2AI-TC is designed for surface mounting and provides an IP67 and IP69K degree of protection. It supports Ethernet/IP, Modbus TCP, and PROFINET communication protocols. The dimensions are 113 mm in height, 44.5 mm in depth, and 71 mm in width. It operates within an ambient air temperature range of -40 to +70 °C. The connection capacity is 2-ports, with 2 x analog inputs for Thermocouple types B, C, E, G, J, K, N, R, S, T. The supported speed for data transmission is 10Mbps and 100Mbps.

Related documents BLCEN-2M12MT-2AI-TC Specs

BLCEN-2M12MT-2AI-TC English-1630968759341.pdf

Manufacturer warranty

$681.80

Request a quote, and we will send availability within minutes.

Select Qty:

$681.80

$681.80 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty
