BCF5-S18-RN4X Turck Capacitive Sensors
Part#:BCF5-S18-RN4X
Manufacturer:Turck
Alt. Part#:2503008
Product Lifecycle:Active
Get a quick Quote!
BCF5-S18-RN4X Capacitive Sensor
About the manufacturer: Turck is one of the manufacturers that offers Capacitive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the BCF5-S18-RN4X Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 110 g
- Country Of Origin DEU
- HTS Code 8536507000
- Electrical connection Cable
- Protection class IP67

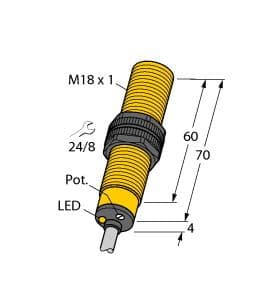

- Construction size M18 x 1
- Ambient temperature -25…+70 °C
- Approvals cULus
- Design Threaded barrel
- Output function NC contact, NPN
- Cable length (L) 2.0 m
- Operating voltage 10…65 VDC
- Rated switching distance 5 mm
- Function For highly viscous media
- Housing material Plastic, PA12-GF30, PEI
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
BCF5-S18-RN4X Description
Turck BCF5-S18-RN4X is a capacitive proximity sensor belonging to the BC...-S18 series, designed for noise-immune embeddable applications. It operates with a supply voltage range of 10-65Vdc, including nominal values of 12Vdc, 24Vdc, and 48Vdc. The sensor features a housing and sensing face made of PA12-GF30 (glass fiber reinforced Polyamide) and a PVC cable jacket for its pre-wired 2m / 6.5ft cable that terminates with bare end flying leads. Its M18 partially threaded barrel shape is designed for easy installation, and it offers an IP67 degree of protection against ingress. The sensor has a maximum switching frequency of 100Hz and can operate within an ambient air temperature range of -25°C to +70°C. It includes 1 x digital output (10-65Vdc; NPN; 200mA max.) and has a no-load current consumption of 15mA. The sensing distance is 5mm, and it is equipped with protection functions against short-circuit (pulsed), overload, and reverse polarity. The thread size is M18, and it operates in a Normally Closed (NC) mode.
Related documents BCF5-S18-RN4X Specs
