PKGTALP2 Schneider Electric Electronic Components

PKGTALP2 on Powermatic Associates
Schneider Electric

Part#:PKGTALP2

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

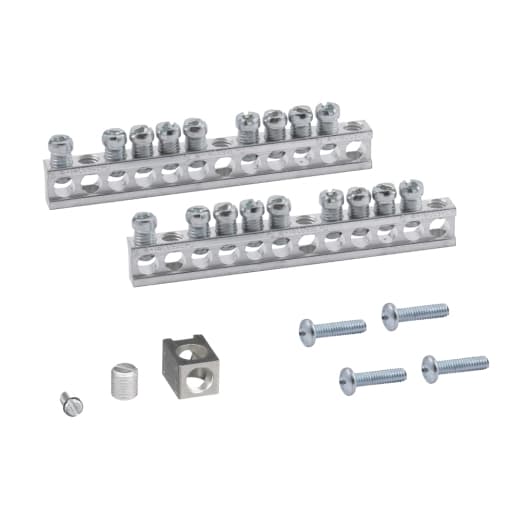

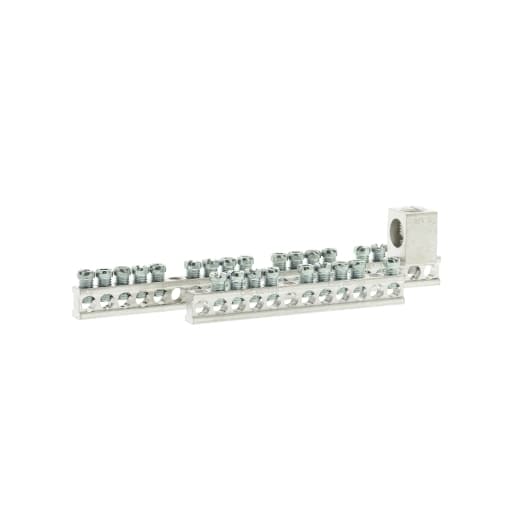

Square D by Schneider Electric PKGTALP2 is a grounding part designed to facilitate ground bar functions.

Product Details

  • Provided Equipment
    2 grounding bar 1 lug
  • Number Of Connectors
    9 18
  • Tightening Torque
    3.4 N.m
  • Depth
    0.312 in (7.92 mm)
  • Height
    0.437 in (11.10 mm)
  • Product Line
    QO
  • Product Type
    Bar

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PKGTALP2 on Powermatic Associates is $2.43. Order now.
