M9F52325 Schneider Electric Industrial Automation Components

Name: M9F52325
Brand: Schneider Electric
Price: 378 USD
Availability: InStock

Part#:M9F52325

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

20 in stock

Mar 14, 2025

Product description

Schneider Electric M9F52325 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed to provide circuit protection. This MCB features a 3-pole configuration and is rated for a current of 25A. It has a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. The short circuit breaking rating is specified as 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 125Vdc. The rated voltage for phase-to-phase connections is 440 V. All three poles are protected, and it operates with a C tripping curve.

Product Details

[Ics] Rated Service Breaking Capacity
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC
Breaking Capacity
6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 14 kA AIR 240 V AC UL 489 10 k
Product Certifications
IEC CCC CSA UL
Standards
EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
[Ue] Rated Operational Voltage
240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
Electrical Durability
10000 cycles
Earth-Leakage Protection
Without
Tightening Torque
17.70 lbf.in (2 N.m) top or bottom
Provision For Padlocking
Padlockable
Connections - Terminals
Ring terminal top or bottom)
Color
Gray
Depth
2.83 in (72 mm)
Mechanical Durability
20000 cycles
Width
2.13 in (54 mm)
Mounting Support
DIN rail
Height
5.00 in (127 mm)
Local Signalling
ON/OFF indication
Mounting Mode
Clip-on
9 Mm Pitches
6
Control Type
Toggle

Contact Position Indicator

Yes

[Uimp] Rated Impulse Withstand Voltage

6 kVEN/IEC 60947-2

[Ui] Rated Insulation Voltage

500 V AC EN/IEC 60947-2

Magnetic Tripping Limit

8.5 x In +/- 20 % AC

Suitability For Isolation

Yes EN/IEC 60947-2

Curve Code

Trip Unit Technology

Thermal-magnetic

Line Rated Current

25 A 77 °F (25 °C) EN/IEC 60947-2

Range

Multi 9

Product Or Component Type

Miniature circuit-breaker

Product Name

Multi 9 C60

Device Application

Distribution

Poles Description

Device Short Name

C60BPR

Network Type

Number Of Protected Poles

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9F52325 on Powermatic Associates is $378.00. Order now.

M9F52325 Related Documents

Catalog-1631032310124.pdf Product Datasheet-1631032310127.pdf

This item can ship within 24h!

Manufacturer warranty

M9F52325 Schneider Electric

$378.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

Select Qty:

$378.00

$378.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare M9F52325 with other products

[Ics] Rated Service Breaking Capacity

Breaking Capacity

Product Certifications

Standards

[Ue] Rated Operational Voltage

Electrical Durability

Earth-Leakage Protection

Tightening Torque

Provision For Padlocking

Connections - Terminals

Color

Depth

Mechanical Durability

Width

Mounting Support

Height

Local Signalling

Mounting Mode

9 Mm Pitches

Control Type

Contact Position Indicator

[Uimp] Rated Impulse Withstand Voltage

[Ui] Rated Insulation Voltage

Magnetic Tripping Limit

Suitability For Isolation

Curve Code

Trip Unit Technology

Line Rated Current

Range

Product Or Component Type

Product Name

Device Application

Poles Description

Device Short Name

Network Type

Number Of Protected Poles

Breaking Capacity

[Ics] Rated Service Breaking Capacity

Standards

Product Certifications

[Ue] Rated Operational Voltage

Earth-Leakage Protection

Tightening Torque

Connections - Terminals

Provision For Padlocking

Electrical Durability

Mechanical Durability

Color

Width

Height

9 Mm Pitches

Mounting Support

Mounting Mode

Local Signalling

Depth

Control Type

Contact Position Indicator

[Uimp] Rated Impulse Withstand Voltage

[Ui] Rated Insulation Voltage

Magnetic Tripping Limit

Suitability For Isolation

Curve Code

Trip Unit Technology

Range

Product Or Component Type

Number Of Protected Poles

Product Name

Line Rated Current

Poles Description

Network Type

Device Application

Device Short Name

Breaking Capacity

[Ics] Rated Service Breaking Capacity

Standards

Product Certifications

[Ue] Rated Operational Voltage

Earth-Leakage Protection

Tightening Torque

Electrical Durability

Color

9 Mm Pitches

[Uimp] Rated Impulse Withstand Voltage

[Ui] Rated Insulation Voltage

Connections - Terminals

Provision For Padlocking

Mechanical Durability

Depth

Width

Height

Control Type

Mounting Support

Mounting Mode

Local Signalling

Contact Position Indicator

Trip Unit Technology

Magnetic Tripping Limit

Suitability For Isolation

Curve Code

Network Type

Line Rated Current

Poles Description

Device Application

Product Name

Number Of Protected Poles

Product Or Component Type

Device Short Name

Range

Selected product

20 in stock

M9F52325

Schneider Electric

Schneider Electric M9F52325 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, design...

[Ics] Rated Service Breaking Capacity4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC

Breaking Capacity6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 14 kA AIR 240 V AC UL 489 10 k

Product CertificationsIEC CCC CSA UL

StandardsEN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5

[Ue] Rated Operational Voltage240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz

Electrical Durability10000 cycles

Earth-Leakage ProtectionWithout

Tightening Torque17.70 lbf.in (2 N.m) top or bottom

Provision For PadlockingPadlockable

Connections - TerminalsRing terminal top or bottom)

ColorGray

Depth2.83 in (72 mm)

Mechanical Durability20000 cycles

Width2.13 in (54 mm)

Mounting SupportDIN rail

Height5.00 in (127 mm)

Local SignallingON/OFF indication

Mounting ModeClip-on

9 Mm Pitches6

Control TypeToggle

Contact Position IndicatorYes

[Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 60947-2

[Ui] Rated Insulation Voltage500 V AC EN/IEC 60947-2

Magnetic Tripping Limit8.5 x In +/- 20 % AC

Suitability For IsolationYes EN/IEC 60947-2

Curve CodeC

Trip Unit TechnologyThermal-magnetic

Line Rated Current25 A 77 °F (25 °C) EN/IEC 60947-2

RangeMulti 9

Product Or Component TypeMiniature circuit-breaker

Product NameMulti 9 C60

Device ApplicationDistribution

Poles Description3P

Device Short NameC60BPR

Network TypeAC

Number Of Protected Poles3

Breaking Capacity-

[Ics] Rated Service Breaking Capacity-

Standards-

Product Certifications-

[Ue] Rated Operational Voltage-

Earth-Leakage Protection-

Tightening Torque-

Connections - Terminals-

Provision For Padlocking-

Electrical Durability-

Mechanical Durability-

Color-

Width-

Height-

9 Mm Pitches-

Mounting Support-

Mounting Mode-

Local Signalling-

Depth-

Control Type-

Contact Position Indicator-

[Uimp] Rated Impulse Withstand Voltage-

[Ui] Rated Insulation Voltage-

Magnetic Tripping Limit-

Suitability For Isolation-

Curve Code-

Trip Unit Technology-

Range-

Product Or Component Type-

Number Of Protected Poles-

Product Name-

Line Rated Current-

Poles Description-

Network Type-

Device Application-

Device Short Name-

Breaking Capacity-

[Ics] Rated Service Breaking Capacity-

Standards-

Product Certifications-

[Ue] Rated Operational Voltage-

Earth-Leakage Protection-

Tightening Torque-

Electrical Durability-

Color-

9 Mm Pitches-

[Uimp] Rated Impulse Withstand Voltage-

[Ui] Rated Insulation Voltage-

Connections - Terminals-

Provision For Padlocking-

Mechanical Durability-

Depth-

Width-

Height-

Control Type-

Mounting Support-

Mounting Mode-

Local Signalling-

Contact Position Indicator-

Trip Unit Technology-

Magnetic Tripping Limit-

Suitability For Isolation-

Curve Code-

Network Type-

Line Rated Current-

Poles Description-

Device Application-

Product Name-

Number Of Protected Poles-

Product Or Component Type-

Device Short Name-

Range-

3 in stock

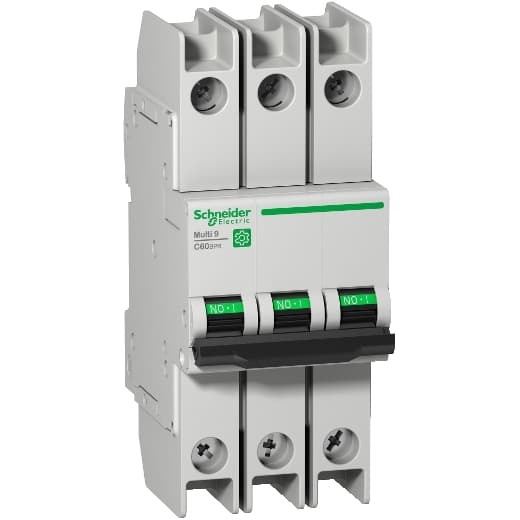

M9F52363
